StarTech.com · HDADFM5IN

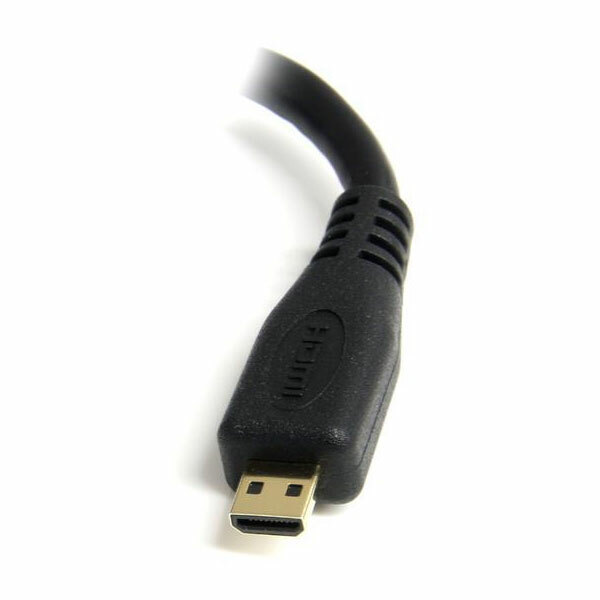

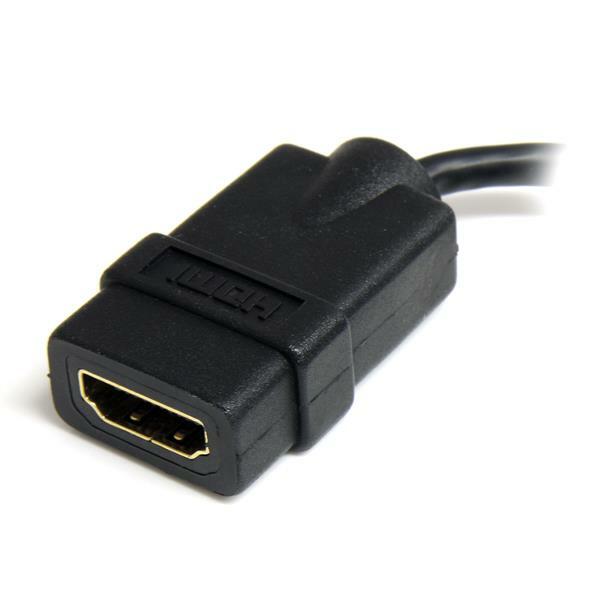

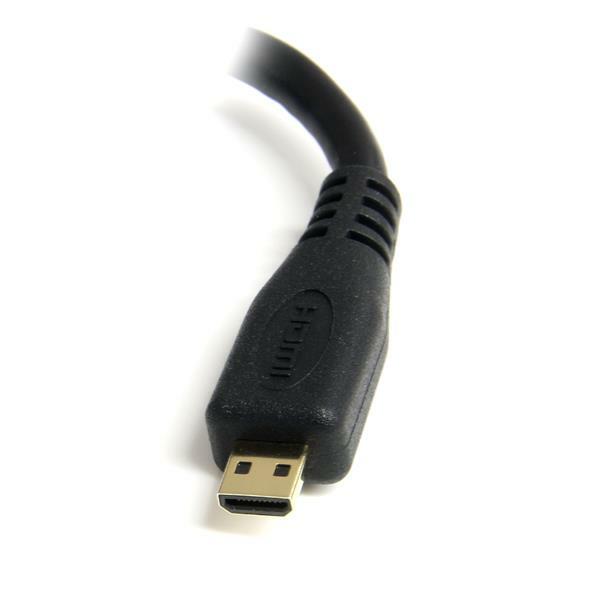

5in Micro HDMI Male to HDMI Female Adapter Cable

Connect a Micro HDMI Type-D device through a standard HDMI cable with a short 127mm adapter supporting 4K 30Hz video and eight-channel audio.

5in adapter cableMicro HDMI maleHDMI female4K 30Hz

StarTech HDADFM5IN 5in Micro HDMI Male to HDMI Female Adapter Cable

Built for dependable use

Flexible port conversion

Changes Micro HDMI Type-D male to a standard HDMI Type-A female connection on a short lead.

4K HDMI support

Supports 3840 × 2160 at 30Hz and 4096 × 2160 at 24Hz with compatible equipment.

Full-feature HDMI path

Carries ARC, 3D video, HDCP 1.4, CEC and up to eight audio channels.

Shielded cable build

34AWG conductors use aluminium-Mylar foil and braid shielding.

What to know before you connect

The source device needs a Micro HDMI Type-D port.
A standard HDMI male-to-male cable is also required.
This is not compatible with Mini HDMI Type-C ports.
Maximum performance depends on the full cable and device chain.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com lifetime manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HDADFM5IN do?

It converts a Micro HDMI Type-D port to a standard HDMI Type-A female connection on a short flexible cable.

What connections does the HDADFM5IN provide?

It has one Micro HDMI Type-D male connector and one standard HDMI Type-A female connector.

What is the maximum verified performance?

It supports 3840 × 2160 at 30Hz or 4096 × 2160 at 24Hz with bandwidth up to 10.2Gbps.

How is the HDADFM5IN powered?

It is a passive adapter cable and requires no external power.

What compatibility should I check?

It connects compatible Micro HDMI Type-D cameras, tablets or computers to a regular HDMI male-to-male cable and display.

Is this adapter for Mini HDMI?

No. It uses Micro HDMI Type-D; Mini HDMI Type-C is a different connector.

What is included in the package?

The package includes one 5in (127mm) Micro HDMI male-to-HDMI female adapter cable.

What warranty applies in Australia?

The Australian-version HDADFM5IN supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HDADFM5IN)

Features and highlights

Flexible port conversion

Changes Micro HDMI Type-D male to a standard HDMI Type-A female connection on a short lead.

4K HDMI support

Supports 3840 × 2160 at 30Hz and 4096 × 2160 at 24Hz with compatible equipment.

Full-feature HDMI path

Carries ARC, 3D video, HDCP 1.4, CEC and up to eight audio channels.

Shielded cable build

34AWG conductors use aluminium-Mylar foil and braid shielding.

Gold-plated connectors

Corrosion-resistant contacts support dependable connectivity.

Key highlights

HDMI 1.4b and earlier
10.2Gbps bandwidth
PVC jacket
127mm length

Official StarTech.com lifetime manufacturer warranty in Australia.

Technical specifications

StarTech HDADFM5IN · 5in Micro HDMI Male to HDMI Female Adapter Cable

Warranty Information

Warranty

Lifetime

Hardware

Cable Jacket Type

PVC - Polyvinyl Chloride

Cable Shield Type

Aluminum-Mylar Foil with Braid

Connector Plating

Gold

Connector(s)

Connector A

1 - HDMI (19 pin) Female

Connector B

1 - Micro HDMI (19 pin) Male

Physical Characteristics

Cable Length

5 in [127 mm]

Color

Black

Product Height

0.4 in [1 cm]

Product Length

5 in [127 mm]

Product Width

0.8 in [20 mm]

Weight of Product

0.7 oz [20 g]

Wire Gauge

34 AWG

Packaging Information

Package Height

0.5 in [13 mm]

Package Length

8.9 in [22.5 cm]

Package Quantity

Package Width

4.9 in [12.5 cm]

Shipping (Package) Weight

0.9 oz [25 g]

What's in the Box

Included in Package

1 - 5in HDMI® to HDMI® Micro Adapter - F/M

Performance

HDMI Revision

HDMI 1.4b and earlier

Maximum Resolution

3840 × 2160 at 30Hz; 4096 × 2160 at 24Hz

Bandwidth

10.2Gbps

Audio

Up to 8 channels

Additional Support

ARC, 3D, HDCP 1.4 and CEC

Official Physical Details

Cable Length

127mm [5in]

Product Dimensions

127 × 20 × 10mm

Weight

20g
