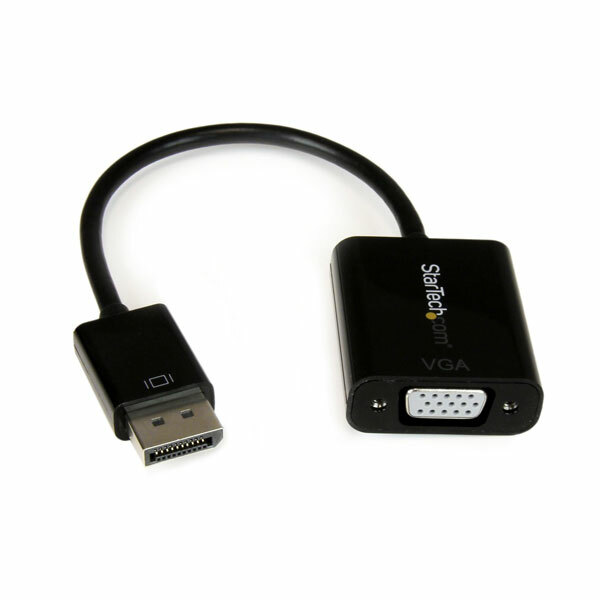

StarTech DisplayPort 1.2 to VGA Adapter Converter - DP2VGA3
Model # DP2VGA3
-
SKU: DP2VGA3
- Pick Up Available
- Australian Warranty
- Checkout Securely
Active DisplayPort to VGA Adapter
Connect a DisplayPort computer to a VGA monitor or projector at up to 1920 × 1200.
Active conversion
Converts the computers digital DisplayPort signal to analogue VGA for legacy monitors and projectors.
Up to 1920 × 1200
Supports one VGA display per adapter at up to 1920 × 1200, including 1080p.
Portable plug-and-play design
Compact design is convenient for travel, presentations and hot-desk use.
What to know
This adapter works in one direction from a DisplayPort source to a VGA display. VGA carries video only, so audio needs a separate connection. Provide a suitable VGA cable for the female output.
Frequently asked questions
What does the DP2VGA3 connect?
It connects a full-size DisplayPort output on a computer to a VGA monitor or projector through a separate VGA cable.
What maximum resolution does the DP2VGA3 support?
It supports up to 1920 × 1200, including 1920 × 1080, with compatible source and display equipment.
Is the DP2VGA3 an active adapter?
Yes. It actively converts digital DisplayPort video to an analogue VGA signal.
Does the DP2VGA3 require drivers?
No. It is plug and play and does not require driver installation.
Can the DP2VGA3 carry audio?
No. VGA carries video only, so audio requires a separate connection.
Can the DP2VGA3 convert VGA output to DisplayPort input?
No. It works only from a DisplayPort source to a VGA display.
Is a VGA cable included with the DP2VGA3?
No. The adapter provides a VGA female port, so a suitable VGA cable is required.
What warranty applies to the DP2VGA3?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DP2VGA3)
Features and highlights
- Active DisplayPort 1.2 male to VGA female adapter
- Supports up to 1920 × 1200, including 1920 × 1080
- Works with DisplayPort and DP++ sources
- EDID and DDC support for compatible display identification
- VGA screw-lock support helps secure the display cable
- Plug-and-play operation with no driver installation
- One-way digital-to-analogue conversion; no audio over VGA
- Package quantity: 1
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Active DisplayPort to VGA adapter |
|---|---|
| Source connector | 1 × DisplayPort 1.2 male, 20-pin per adapter |
| Display connector | 1 × VGA female, 15-pin high-density D-Sub, screw-lock compatible per adapter |
| Attached cable length | Approximately 10cm attached cable; approximately 23cm overall product length |
| Maximum analogue resolution | 1920 × 1200; supports 1920 × 1080 |
| Source compatibility | DisplayPort and DP++ sources |
| Displays supported | 1 per adapter |
| Display data | EDID and DDC support |
| Audio | No audio over VGA |
| Direction | DisplayPort source to VGA display only |
| Power and software | Bus-powered; no external power adapter or drivers required |
| Colour and weight | Black; approximately 32g in the current official specification; supplied catalogue lists approximately 34g |
| Package quantity | 1 |
| In the box | 1 × DisplayPort to VGA adapter |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DP2VGA3 |
| Barcode # | 65030848701 |
| Brand | STARTECH |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.010m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.000360000m3 |
