StarTech DisplayPort to DVI Active Adapter - DP2DVIS
Model # DP2DVIS
-
SKU: DP2DVIS
- Pick Up Available
- Australian Warranty
- Checkout Securely
Active DisplayPort to Single-Link DVI-D Adapter
Connect a standard DisplayPort or DP++ computer to a single-link DVI-D monitor, projector or compatible display at up to 1920 × 1200.
Active compatibility
Active conversion works with standard DisplayPort and DP++ sources, including Eyefinity-class graphics outputs.
Single-link DVI output

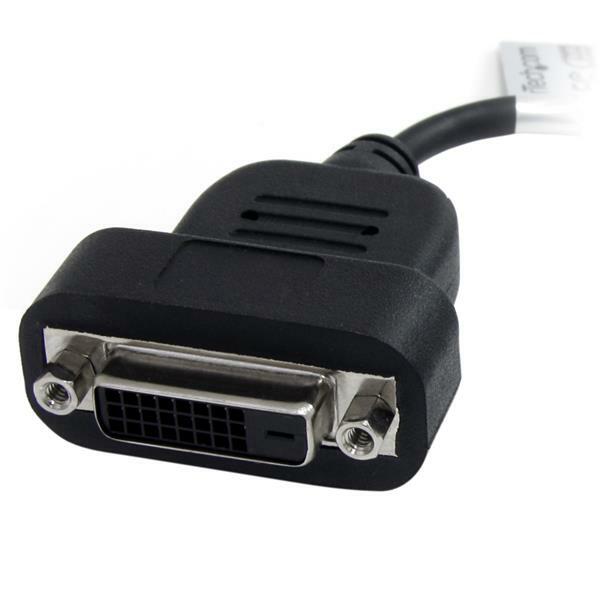

Provides a DVI-D female port for one monitor, projector, television or compatible Apple Cinema Display HD.
Compact and halogen free
The short black adapter uses an LSZH, halogen-free jacket and latching/screw-lock connections.
What to know
This is a one-way DisplayPort-source to DVI-display adapter. Connect a separate DVI cable to the female port. DVI carries video only, so audio needs another path. Maximum performance depends on the source, DVI cable and display.
Frequently asked questions
What does the DP2DVIS connect?
It connects a full-size DisplayPort output to a single-link DVI-D display through a separate DVI cable.
What maximum resolution does the DP2DVIS support?
It supports one compatible DVI display at up to 1920 × 1200.
Does the DP2DVIS require DP++?
No. Its active conversion works with standard DisplayPort and DP++ dual-mode DisplayPort sources.
What DVI connection does the DP2DVIS provide?
It provides a single-link DVI-D female port with screw-lock support for a compatible DVI cable.
Can the DP2DVIS carry audio?
No. The DVI output carries video only, so audio needs a separate path.
Does the DP2DVIS support Apple Cinema Display HD?
Yes. The supplied exact-SKU information lists Apple Cinema Display HD among supported display types, subject to its single-link DVI input and resolution limits.
Does the DP2DVIS require drivers or external power?
No. It operates without drivers or a separate power adapter.
What warranty applies to the DP2DVIS?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DP2DVIS)
Features and highlights
- Active DisplayPort 1.2 male to single-link DVI-D female adapter
- Works with standard DisplayPort and DP++ dual-mode DisplayPort sources
- Supports one display at up to 1920 × 1200
- Supports HDCP 1.3, EDID and DDC workflows

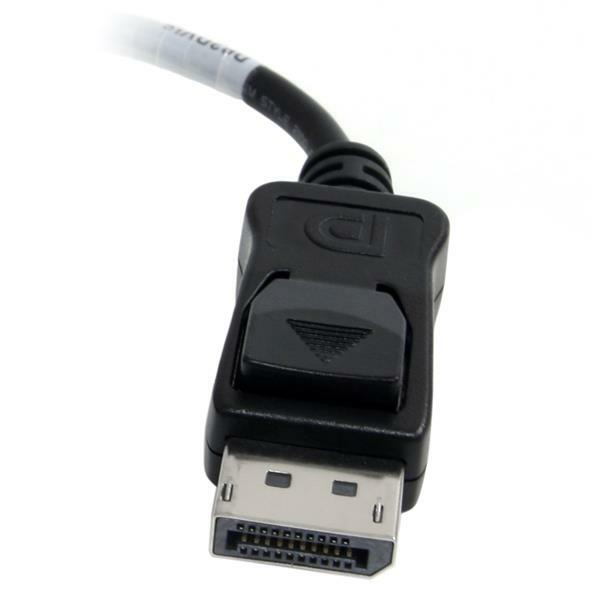

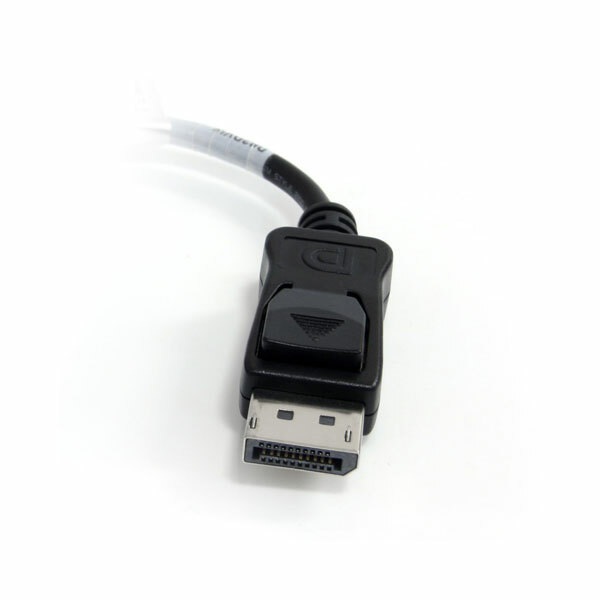

- Latching DisplayPort plug and screw-lock-compatible DVI socket
- LSZH, halogen-free cable jacket
- Compatible with monitors, projectors, televisions and Apple Cinema Display HD
- Video only; DVI does not carry audio
- No external power adapter or drivers required
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Active DisplayPort to single-link DVI-D adapter |
|---|---|
| Source connector | 1 × DisplayPort 1.2 male, 20-pin, latching |
| Display connector | 1 × single-link DVI-D female, 25-pin, screw-lock compatible |
| Maximum resolution | 1920 × 1200 |
| Source compatibility | Standard DisplayPort and DP++ dual-mode DisplayPort |
| Displays supported | 1 |
| Audio | Video only; DVI does not carry audio |
| Content and display data | HDCP 1.3, EDID and DDC support |
| Jacket | Black LSZH; halogen free |
| Direction | DisplayPort source to DVI display only |
| Power and software | No external power adapter or drivers required |
| Product weight | 48g |
| In the box | 1 × active DisplayPort to DVI-D adapter |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DP2DVIS |
| Barcode # | 65030842327 |
| Brand | STARTECH |
| Shipping Weight | 0.0600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
