STARTECH.COM | DP2MDPMF6IN

15cm DisplayPort to Mini DisplayPort 1.2 Adapter Cable

Connect a standard DisplayPort source to a Mini DisplayPort monitor input using a short male-to-female DisplayPort 1.2 adapter cable.

DP to Mini DP direction

Provides a standard DisplayPort male plug for the computer and a Mini DisplayPort female socket for the display cable.

DisplayPort 1.2 construction

Uses 32 AWG copper conductors, moulded strain relief and a latching DisplayPort connector.

Compact 15cm lead

Short 15.24cm design helps keep a desktop, workstation or presentation setup tidy.

What to know

This adapter connects a standard DisplayPort source to a Mini DisplayPort monitor. It is not compatible with Thunderbolt-only monitors, including the Apple A1407 Thunderbolt Display, and is not suitable for iMac Target Display Mode. The attached Mini DisplayPort cable must meet the required DisplayPort standard.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DP2MDPMF6IN connect?

It connects a standard DisplayPort output on a computer to a Mini DisplayPort input on a monitor through a compatible Mini DisplayPort cable.

Which connectors does the DP2MDPMF6IN provide?

It has one DisplayPort 1.2 male plug and one Mini DisplayPort 1.2 female socket.

How long is the DP2MDPMF6IN?

Its attached cable is 15.24cm, or 6in, long.

What resolution does the DP2MDPMF6IN support?

The supplied exact-SKU data specifies up to 2560 × 1600 at 60Hz, depending on the quality and standard of the connected cable.

Does the DP2MDPMF6IN work with Thunderbolt monitors?

No. StarTech identifies Thunderbolt-only monitors, including the Apple A1407 Thunderbolt Display, as incompatible.

Can the DP2MDPMF6IN be used for iMac Target Display Mode?

No. StarTech states that it is not suitable for iMac Target Display Mode.

Does the DP2MDPMF6IN require drivers or power?

No. It is a passive cable adapter and does not require drivers or external power.

What warranty applies to the DP2MDPMF6IN?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP2MDPMF6IN)

Features and highlights

Standard DisplayPort 1.2 male to Mini DisplayPort 1.2 female adapter cable
15.24cm (6in) attached cable
Supplied exact-SKU data supports up to 2560 × 1600 at 60Hz
32 AWG copper conductors with nickel-plated connectors
PVC jacket with CMG rating and moulded strain relief
Latching DisplayPort connector helps prevent accidental disconnection
Directional connection from DisplayPort source to Mini DisplayPort monitor
Not compatible with Thunderbolt-only displays or iMac Target Display Mode
No drivers or external power required
Lifetime StarTech.com manufacturer warranty

Compatibility check: Use from a standard DisplayPort source to a Mini DisplayPort monitor only. It does not support Thunderbolt-only displays or iMac Target Display Mode, and the connected cable must support the required mode.

Specifications

Product type	DisplayPort to Mini DisplayPort adapter cable

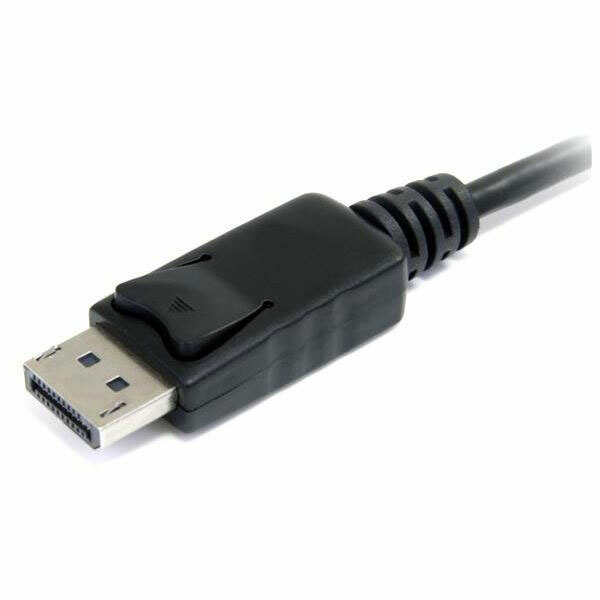

Source connector	1 × DisplayPort 1.2 male, 20-pin, latching
Display connector	1 × Mini DisplayPort 1.2 female, 20-pin
Cable length	15.24cm (6in)
Supported resolution	Up to 2560 × 1600 at 60Hz in the supplied exact-SKU data; dependent on connected cable quality
Cable requirement	Attached Mini DisplayPort cable must be at least DisplayPort 1.2 for the stated supplied mode
Conductor and gauge	Copper; 32 AWG
Connector plating	Nickel
Jacket	Black PVC; CMG rated
Construction	Moulded strain relief
Compatibility limitation	Not compatible with Thunderbolt-only monitors or iMac Target Display Mode
Product weight	Approximately 14.2g
Direction	DisplayPort source to Mini DisplayPort monitor only
In the box	1 × DisplayPort to Mini DisplayPort adapter cable
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DP2MDPMF6IN
Barcode #	65030839921
Brand	STARTECH
Shipping Weight	0.0300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3

Warranty and Australian supply

DP2MDPMF6IN is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
