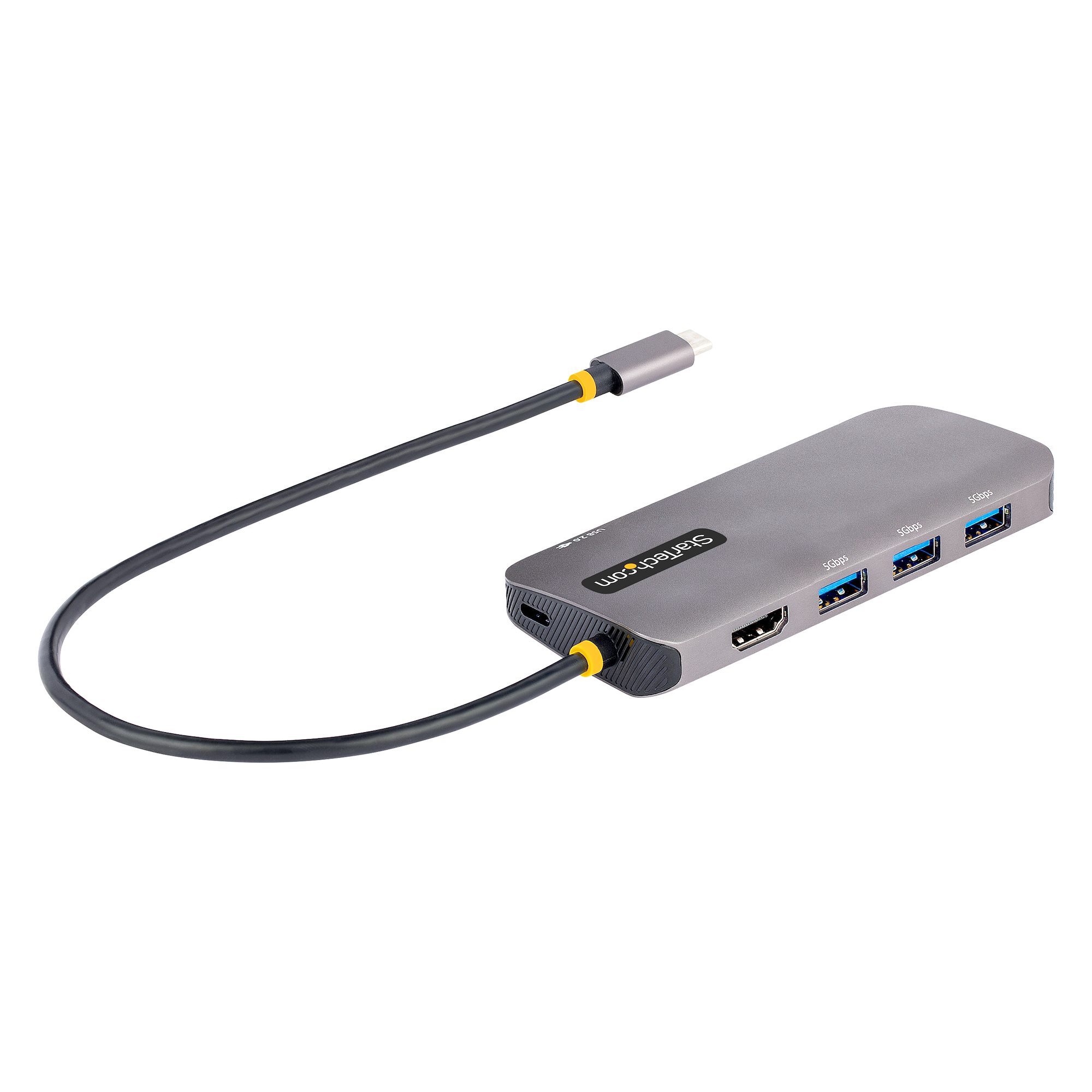

4K 60Hz USB-C Multiport Adapter with 100W PD
Build a compact workstation from one compatible USB-C, USB4 or Thunderbolt connection with 4K HDMI, three 5 Gbps USB-A ports, Gigabit Ethernet and a shared 100W PD/data port.
Key features
4K 60Hz HDMI with HDR
A DP 1.4 Alt Mode host can output up to 4096 x 2160 at 60Hz; DP 1.2 hosts support up to 4K 30Hz.
Three-port USB-A hub
Connect storage, input devices and other peripherals through three USB-A 5 Gbps ports.
Shared USB-C PD and data port
Accepts up to 100W PD input or, without external power, supports USB 2.0 peripherals at up to 480 Mbps.
Managed Gigabit networking
Adds 10/100/1000 Mbps Ethernet with full duplex, PXE Boot and Wake-on-LAN support.
What to know
Compact one-cable workstation
Add HDMI, USB peripherals, Ethernet and optional laptop charging through the integrated 30 cm USB-C host cable.
Broad host compatibility
Works with compatible USB-C, USB4 and Thunderbolt 3/4 systems. The supplied information lists Windows, macOS, iPadOS, Android, Linux and ChromeOS environments.
Product videos
StarTech.com Connectivity Tools
Australian version with official StarTech.com warranty
3-Year manufacturer warranty
This is the Australian version supplied by DeviceDeal and is covered by a three-year official StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms and product assessment.
StarTech 127B-USBC-MULTIPORT FAQ
What is the maximum HDMI resolution?
A DP 1.4 Alt Mode host supports up to 4096 x 2160 at 60Hz. A DP 1.2 Alt Mode host supports up to 4096 x 2160 at 30Hz.
What ports does the 127B-USBC-MULTIPORT add?
It adds one HDMI output, three USB-A 5 Gbps ports, Gigabit Ethernet and one shared USB-C PD/data port.
How does the shared USB-C port work?
With a power adapter connected it accepts up to 100W PD input. Without external power it can connect USB 2.0 peripherals at up to 480 Mbps.
How much charging power reaches the host?
The adapter accepts up to 100W PD, reserves 15W for itself and can supply up to 85W to the host.
Does it support Gigabit Ethernet management features?
Yes. Official specifications list full duplex, PXE Boot and Wake-on-LAN for its 10/100/1000 Mbps port.
Is a USB-C power adapter included?
No. The adapter is bus powered and a compatible USB-C power adapter is optional for pass-through charging.
Which host features are required?
The host USB-C port must support DisplayPort Alt Mode for video and USB Power Delivery for charging; a 4K-capable host and display are required for 4K output.
What warranty covers the 127B-USBC-MULTIPORT?
This Australian-version product is covered by a three-year official StarTech.com manufacturer warranty in Australia. Keep the DeviceDeal invoice as proof of purchase; claims remain subject to StarTech.com terms and assessment.
