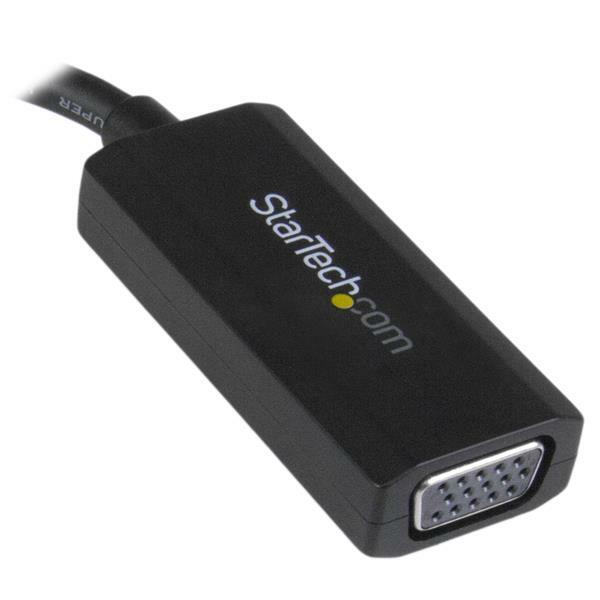

This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.

Save time and hassle with on-board driver installation

For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook™ or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.

Increase your productivity by connecting an additional display

Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.

USB 3.0 performance for business applications

Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems supporting an 800 x 600 resolution at 60Hz.

(USB32VGAV)

Warranty Information
Warranty 2 Years
Hardware
AV Input USB 3.0
AV Output VGA
Chipset ID Fresco - FL2000DX
Industry Standards SuperSpeed USB 3.0, USB 2.0
Memory 8MB
USB Pass-Through No
Performance
Recommended System Requirements
Core 2.4GHz or higher processor (i5 recommended)
4GB of RAM
General Specifications This USB video adapter uses a Fresco family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Trigger family chipset.
Maximum Analog Resolutions USB 3.0: 1920x1200
USB 2.0: 800x600
Supported Resolutions Widescreen(16/32 bit):
1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720

Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600
Wide Screen Supported Yes
Connector(s)

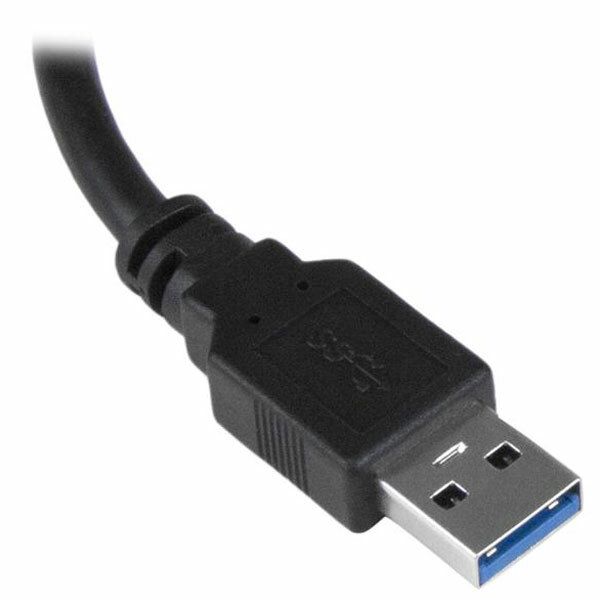

Connector A 1 - USB Type-A (9 pin) USB 3.0 Male Input

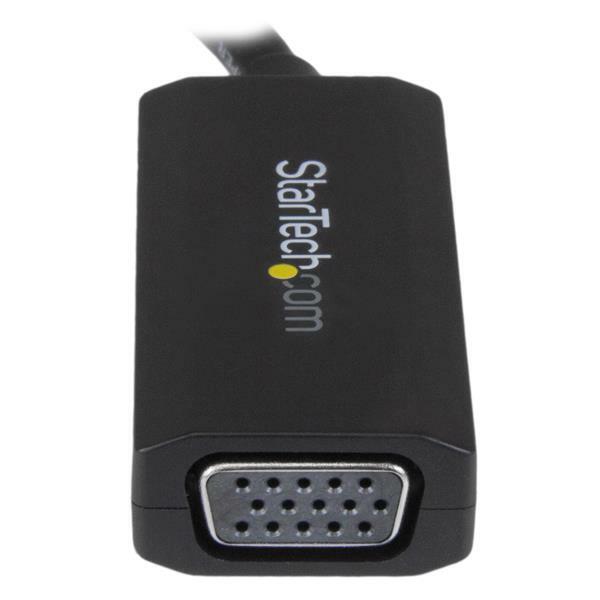

Connector B 1 - VGA (15 pin, High Density D-Sub) Female Output
Software
Microsoft WHQL Certified Yes
OS Compatibility Windows® Vista, 7, 8, 8.1, 10
Special Notes / Requirements
Note This USB video adapter uses a Fresco Logic® family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Trigger
Connect a maximum of 6 USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources
This USB video adapter is not intended for graphical intensive applications, such as gaming
System and Cable Requirements System Processor: Quad Core 2.4GHz (i5 recommended)
System Memory: 4GB
Environmental
Humidity 40%~50% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -10°C to 55°C (14°F to 131°F)
Physical Characteristics
Cable Length 5.5 in [139.7 mm]
Product Height 0.5 in [1.2 cm]
Product Length 7.7 in [19.5 cm]
Product Width 1 in [25 mm]
Weight of Product 0.3 oz [9.3 g]
Packaging Information
Package Height 1.2 in [30 mm]
Package Length 6.8 in [17.2 cm]
Package Width 5.6 in [14.3 cm]
Shipping (Package) Weight 3.2 oz [92 g]
What's in the Box
Included in Package 1 - USB 3.0 to VGA adapter
1 - Quick install guide
SKU USB32VGAV
Barcode # 65030860833
Brand STARTECH
Shipping Weight 0.0900kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.170m
Shipping Cubic 0.000850000m3
Manufacturer Warranty: 2 Years Limited Warranty
