Cross-platform display expansion
Use one USB-A port to extend or mirror the desktop on supported Windows, macOS, ChromeOS and Ubuntu systems.
StarTech USB 3.0 HDMI Multi Monitor Video Graphics Adapter for Mac & PC - USB32HDPRO
Model # USB32HDPRO
-
SKU: USB32HDPRO
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB32HDPRO
StarTech USB 3.0 to HDMI DisplayLink Adapter
Add one HDMI monitor or projector at up to 1920x1200 through USB-A on a compatible Windows, macOS, ChromeOS or Ubuntu computer.
1920x1200 HDMIDisplayLink certifiedWindows and Mac
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
1920x1200 output
Add an HDMI display or projector at up to 1920x1200 or 1080p for productivity and presentation use.
DisplayLink certified
The DL-3500-based adapter provides a driver-supported external graphics path without installing an internal card.
USB-powered portability
The compact adapter takes power from USB and carries up to 5.1-channel HDMI audio.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Product videos
Verified videos shown on this exact DeviceDeal product page.
USB32HDPRO product video
DisplayLink installation for Windows
DisplayLink installation for macOS
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech USB32HDPRO do?
It adds one HDMI display at up to 1920x1200 through USB-A using a DisplayLink external graphics chipset.
How many displays does it support?
It supports one additional HDMI display in extended or mirrored mode.
What is the maximum supported resolution?
It supports up to 1920x1200 or 1080p with compatible equipment.
Which connectors does it use?
It has one USB Type-A male 5Gbps host connector and one HDMI female output.
Which operating systems are supported?
The current official list includes Windows through Windows 11/11 ARM, macOS releases listed by StarTech excluding 10.13.410.13.6, Ubuntu 18.0424.04 and ChromeOS v55+.
Does it need an external power supply?
No. It is powered from USB.
What should I check before purchase?
Check the current DisplayLink driver for the operating system and avoid macOS 10.13.4 to 10.13.6. This adapter is not intended for gaming.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB32HDPRO)
Features and highlights
StarTech USB32HDPRO
Cross-platform display expansion
Use one USB-A port to extend or mirror the desktop on supported Windows, macOS, ChromeOS and Ubuntu systems.
1920x1200 output
Add an HDMI display or projector at up to 1920x1200 or 1080p for productivity and presentation use.
DisplayLink certified
The DL-3500-based adapter provides a driver-supported external graphics path without installing an internal card.
USB-powered portability
The compact adapter takes power from USB and carries up to 5.1-channel HDMI audio.
- DisplayLink DL-3500 chipset
- 512MB onboard memory
- HDCP 1.4 and 5.1-channel 48kHz audio
- Current official compatibility extends through Windows 11/ARM and listed modern macOS releases
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB32HDPRO specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Displays Supported | 1 |
|---|---|
| AV Input | USB 3.2 Gen 1 (5Gbps) |
| AV Output | HDMI |
| Audio | Yes |
| Memory | 512MB |
| Chipset ID | DisplayLink DL-3500 |
| USB Pass-Through | No |
Performance
| Maximum Digital Resolution | 1920x1200 / 1080p |
|---|---|
| Audio | 5.1-channel surround at 48kHz |
| HDCP | 1.4 |
| MTBF | 87,880 hours |
Connector(s)

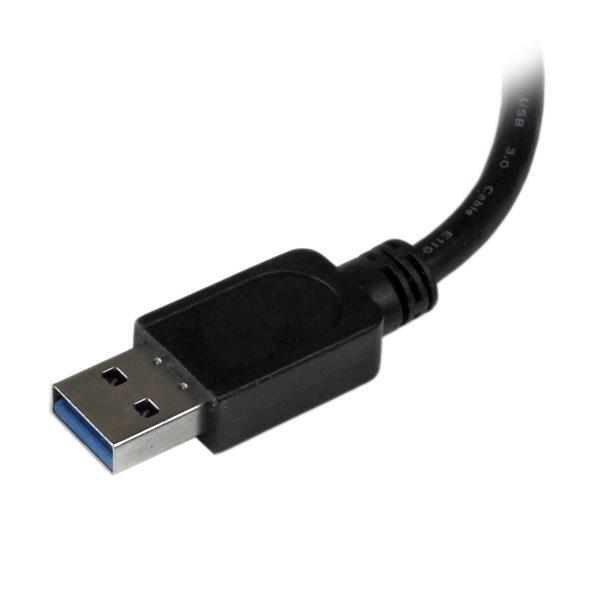

| Host Connector | 1 × USB Type-A male (9 pin, 5Gbps) |
|---|---|

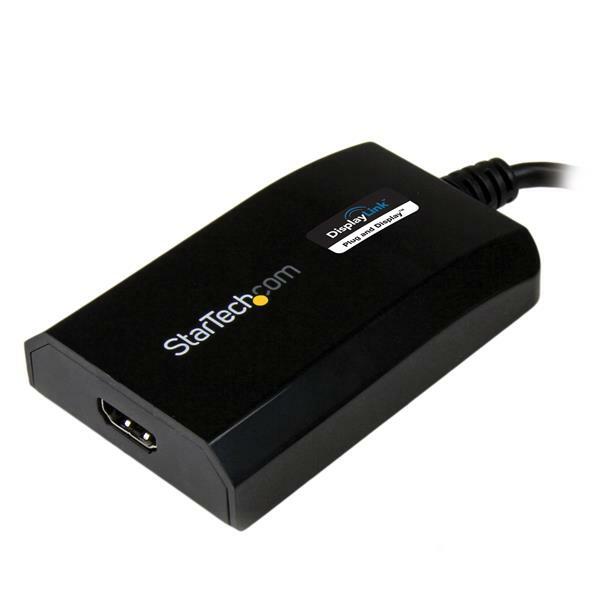

| Display Connector | 1 × HDMI female (19 pin) |
Software
| OS Compatibility | Windows, macOS, Ubuntu and ChromeOS versions listed by StarTech |
|---|---|
| Driver Technology | DisplayLink |
Special Notes / Requirements
| System Requirements | Quad-core 2.4GHz processor (Core i5 recommended); 4GB RAM |
|---|---|
| macOS Note | macOS 10.13.4 to 10.13.6 is not supported |
| Use Limitation | Not intended for gaming or graphics-intensive applications |
Power
| Power Source | USB-powered |
|---|---|
| Input / Output Voltage | 5V DC |
Environmental
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
|---|---|
| Storage Temperature | -5°C to 40°C (23°F to 104°F) |
| Humidity | 20% to 80% RH |
Physical Characteristics
| Color / Material | Black / Plastic |
|---|---|
| Cable Length | 6.3 in [160mm] |
| Product Size | 10.0 × 2.2 × 0.8 in [25.5 × 5.5 × 1.9cm] |
| Weight | 2.2 oz [62g] |
What's in the Box

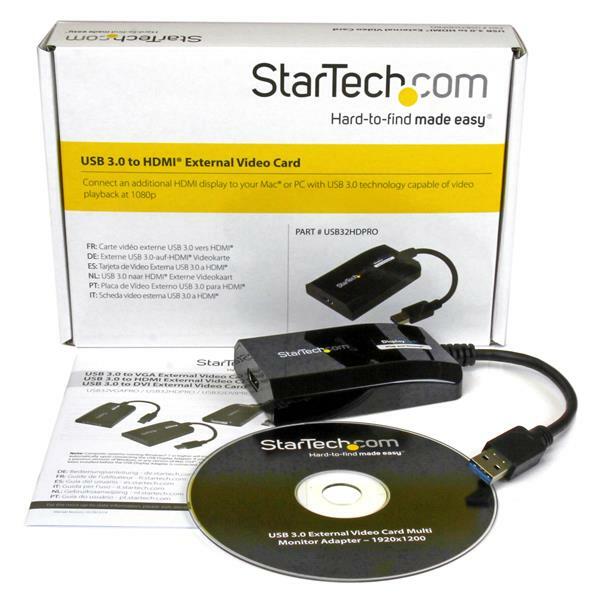

| Included | 1 × USB 3.0 to HDMI adapter; 1 × software installation disc; 1 × instruction manual |
|---|
| SKU | USB32HDPRO |
| Barcode # | 65030857505 |
| Brand | STARTECH |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001050000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
