StarTech USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows¨ USB2VGAE3
Model # USB2VGAE3
-
SKU: USB2VGAE3
- Pick Up Available
- Australian Warranty
- Checkout Securely

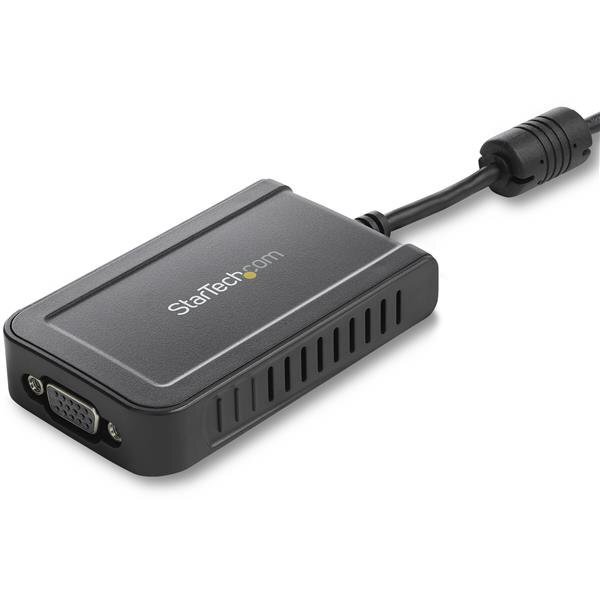

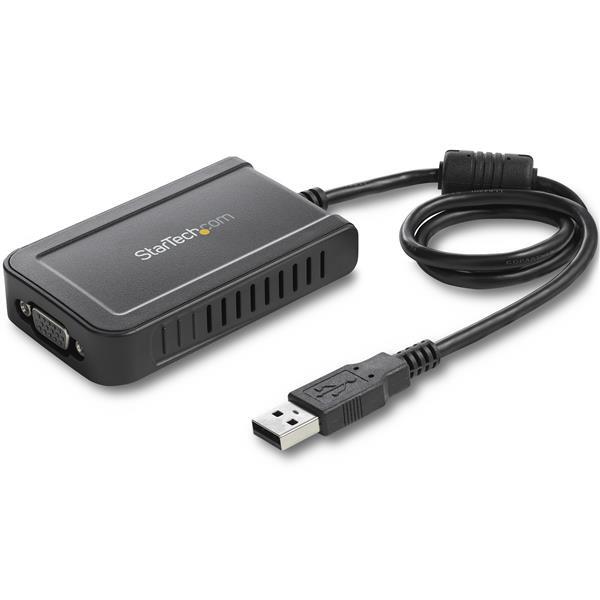

The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
(USB2VGAE3)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| AV Input | USB 2.0 | |
| AV Output | VGA | |
| Chipset ID | Trigger - T2-285A | |
| Industry Standards | USB 2.0 Compliant | |
| Memory | 32MB | |
| USB Pass-Through | No | |
| Performance | ||
| General Specifications | This USB video adapter uses a Trigger family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. | |
| MTBF | 200,000 Hrs | |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
|
| Wide Screen Supported | Yes | |
| Connector(s) | ||

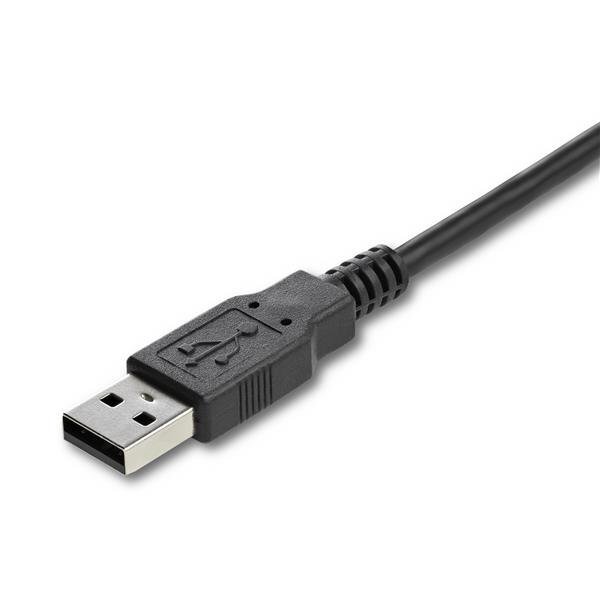

| Connector A | 1 - USB Type-A (4 pin) USB 2.0 Male Input | |
| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output | |
| Software | ||
| OS Compatibility | Windows¨ 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) |
|
| Special Notes / Requirements | ||
| Note | This USB video adapter uses a Trigger family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink¨ or Fresco Logic¨ | |
| Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources | ||
| This USB video adapter is not intended for graphical intensive applications, such as gaming | ||
| System and Cable Requirements | System Processor: Quad Core 2.4GHz (i5 recommended) System Memory: 4GB |
|
| Environmental | ||
| Humidity | 0~95% RH Non-condensing | |
| Operating Temperature | -10¡C to 55¡C (14¡F to 131¡F) | |
| Storage Temperature | -25¡C to 75¡C (32¡F to 167¡F) | |
| Physical Characteristics | ||
| Cable Length | 19.7 in [500 mm] | |
| Color | Gray | |
| Product Height | 0.7 in [1.8 cm] | |
| Product Length | 3.5 in [88 mm] | |
| Product Width | 2.1 in [52.5 mm] | |
| Weight of Product | 3.3 oz [94 g] | |
| Packaging Information | ||
| Package Height | 1.6 in [40 mm] | |
| Package Length | 8.3 in [21 cm] | |
| Package Width | 5.7 in [14.5 cm] | |
| Shipping (Package) Weight | 8.7 oz [247 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB to VGA Adapter | |
| 1 - Driver and Software CD | ||
| 1 - Instruction Manual | ||
| SKU | USB2VGAE3 |
| Barcode # | 65030844178 |
| Brand | STARTECH |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.040m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001260000m3 |
