STARTECH.COM | DP2VGDVHD

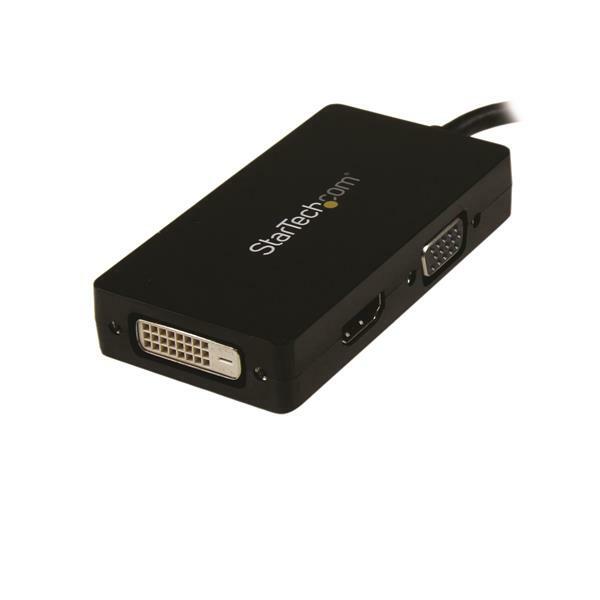

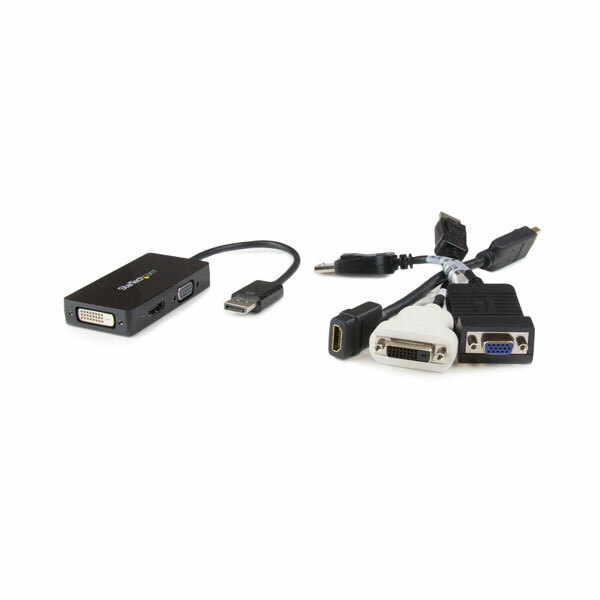

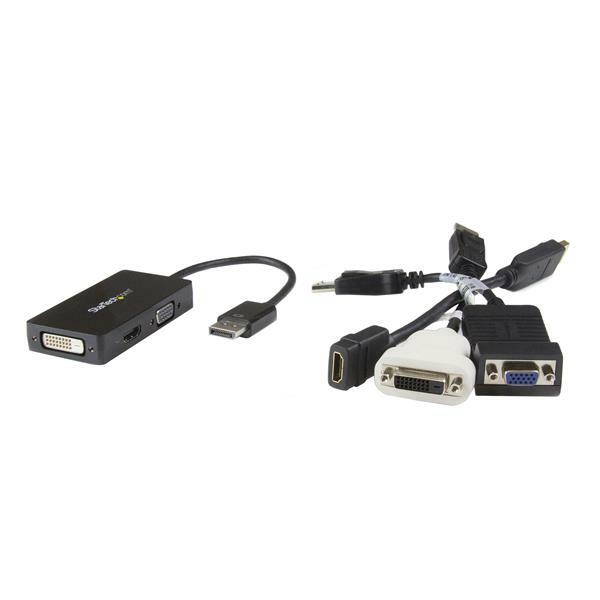

3-in-1 DisplayPort to HDMI, DVI or VGA Adapter

Connect a DisplayPort computer to one HDMI, DVI-D or VGA display using a compact three-output presentation adapter.

Three display choices

Use HDMI, DVI-D or VGA without carrying three separate adapters; one output works at a time.

Up to 1920 × 1200

Supports one digital or analogue display at up to 1920 × 1200, including 1080p.

HDMI audio support

HDMI supports up to 7.1-channel audio; DVI and VGA provide video only.

What to know

Only one output can be used at a time. The HDMI and DVI ports are passive and require a DP++ source; VGA conversion is active. Provide a suitable HDMI, DVI or VGA cable.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 3-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

Which outputs does the DP2VGDVHD provide?

It provides HDMI, DVI-D and VGA female outputs from one DisplayPort male input.

Can the DP2VGDVHD use all three outputs together?

No. It supports one connected display and one output at a time.

What maximum resolution does the DP2VGDVHD support?

It supports up to 1920 × 1200, including 1920 × 1080, with compatible equipment.

Does the DP2VGDVHD support audio?

HDMI supports up to 7.1-channel audio, while DVI and VGA do not carry audio.

Does the DP2VGDVHD require DP++?

DP++ is required for the passive HDMI and DVI outputs; the VGA output uses active conversion.

Are display cables included with the DP2VGDVHD?

No. Provide a suitable HDMI, DVI or VGA cable for the selected output.

Does the DP2VGDVHD require drivers or external power?

No. It is bus-powered and does not require driver installation or a separate power adapter.

What warranty applies to the DP2VGDVHD?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP2VGDVHD)

Features and highlights

DisplayPort male input with HDMI, DVI-D and VGA female outputs
Supports one display at a time
Maximum resolution up to 1920 × 1200, including 1080p
HDMI supports up to 7.1-channel audio
DVI and VGA outputs do not carry audio
HDMI and DVI outputs require a DP++ source
Active VGA conversion supports standard DisplayPort sources
Plug-and-play operation with no driver installation
Compact 15cm attached lead for travel and presentations
3-year StarTech.com manufacturer warranty

Compatibility check: Use one output at a time. HDMI and DVI require a DP++ dual-mode DisplayPort source, and VGA or DVI audio needs a separate connection.

Specifications

Product type	3-in-1 DisplayPort to HDMI, DVI-D or VGA adapter
Source connector	1 × DisplayPort male, 20-pin
Display outputs	1 × HDMI female; 1 × DVI-D female; 1 × VGA female
Displays supported	1 at a time
Maximum resolution	1920 × 1200; supports 1920 × 1080
Adapter design	HDMI and DVI passive; VGA active
Source requirement	DP++ required for HDMI and DVI output
Audio	HDMI up to 7.1 channels; no audio over DVI or VGA
Maximum digital cable distance	15.2m in the current official specification
Attached cable length	15cm
Dimensions	Approximately 26.6 × 4.5 × 2cm
Product weight	Approximately 65g
Power and software	Bus-powered; no drivers required
In the box	1 × DisplayPort travel adapter; 1 × installation guide
Warranty	3-year StarTech.com manufacturer warranty

SKU	DP2VGDVHD
Barcode #	65030857208
Brand	Startech
Shipping Weight	0.0700kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001000000m3

Warranty and Australian supply

DP2VGDVHD is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
