STARTECH.COM | DVIVGAMFBK

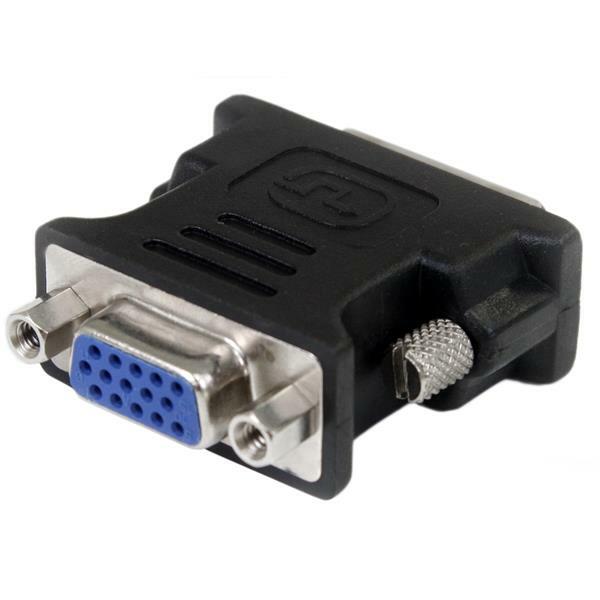

Black DVI-I Male to VGA Female Passive Adapter

Connect a VGA monitor cable to an analogue-capable DVI-I source using a compact black moulded adapter with screw-lock hardware.

DVI-I male to VGA female

Connects a VGA display cable to a compatible analogue-capable DVI-I source.

Passive analogue pass-through

Carries an analogue signal already supplied by the source; it does not convert digital video to analogue.

40.6 × 40.6 × 15.2mm compact adapter

PVC moulded construction with screw-lock hardware

What to know

The source must output analogue video through DVI-I or DVI-A. DVI-D is digital-only and is not compatible. Some DVI-I-shaped ports output digital video only, so confirm analogue support in the source-device specifications.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DVIVGAMFBK connect?

It connects a VGA display cable to a source device with an analogue-capable DVI-I output.

Which connectors are on the DVIVGAMFBK?

It has one 29-pin DVI-I male connector and one 15-pin VGA female connector.

Is the DVIVGAMFBK active or passive?

It is a passive adapter that passes an existing analogue video signal.

Does the DVIVGAMFBK convert digital DVI to VGA?

No. It does not perform digital-to-analogue signal conversion.

Can the DVIVGAMFBK be used with DVI-D?

No. DVI-D is digital-only, so an active DVI-D to VGA converter is required.

Does every DVI-I port work with the DVIVGAMFBK?

No. The port must actually output analogue video; some DVI-I-shaped ports provide digital video only.

Does the DVIVGAMFBK require drivers or power?

No. It is a passive adapter and requires no drivers or external power.

What warranty applies to the DVIVGAMFBK?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DVIVGAMFBK)

Features and highlights

DVI-I male to VGA female video adapter
Passive analogue signal pass-through
Requires analogue output from the DVI source
Not compatible with digital-only DVI-D output

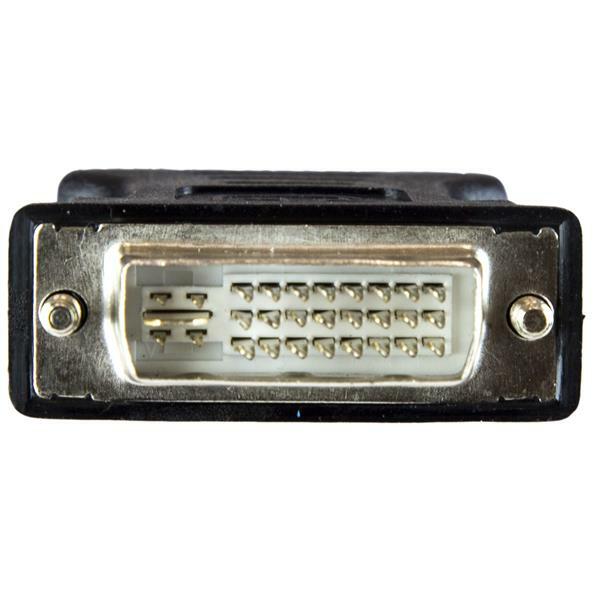

29-pin DVI-I male connector

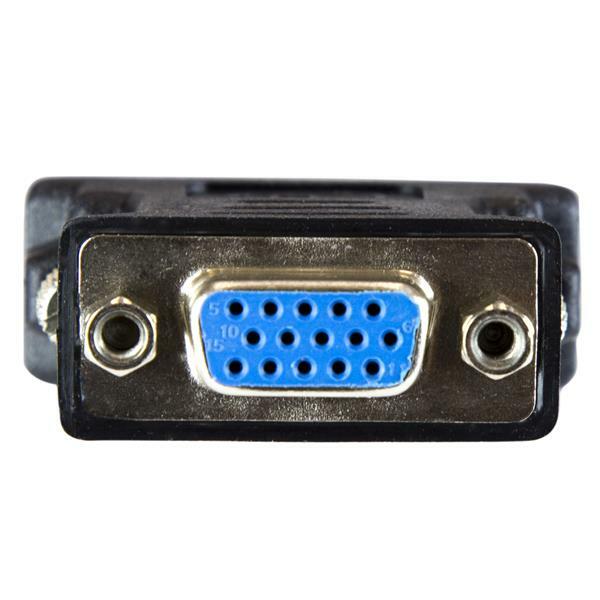

15-pin high-density VGA female connector
PVC moulded construction with screw-lock hardware
Black finish
No drivers or software required
Lifetime StarTech.com manufacturer warranty

Compatibility check: Confirm that the source device provides analogue video through DVI-I or DVI-A. This passive product cannot convert DVI-D digital video to analogue VGA.

Specifications

Product type	Passive DVI-I to VGA analogue adapter
DVI connector	1 × DVI-I male, 29-pin
VGA connector	1 × VGA female, 15-pin high-density D-Sub
Signal type	Analogue video pass-through
Active conversion	No
Required source signal	Analogue video through DVI-I or DVI-A
DVI-D compatibility	Not compatible with digital-only DVI-D output
Form factor	40.6 × 40.6 × 15.2mm compact adapter
Construction	PVC moulded construction with screw-lock hardware
Colour	Black
Product weight	Not specified in the supplied catalogue
Software	No drivers or settings required
In the box	1 × DVIVGAMFBK DVI-I male to VGA female adapter
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DVIVGAMFBK
Barcode #	65030841573
Brand	STARTECH
Shipping Weight	0.0300kg
Shipping Width	0.090m
Shipping Height	0.050m
Shipping Length	0.130m
Shipping Cubic	0.000585000m3

Warranty and Australian supply

DVIVGAMFBK is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
