StarTech Mini DisplayPort DP to DVI Video Adapter - MDP2DVI3
Model # MDP2DVI3
-
SKU: MDP2DVI3
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech MDP2DVI3 Mini DisplayPort to DVI Passive Adapter
Mini DisplayPort to DVI Passive Adapter designed for professional IT, electronics, security or workstation use.
Frequently asked questions
What is StarTech MDP2DVI3?
It is a passive Mini DisplayPort-to-DVI display adapter that connects a DP++ Mini DisplayPort source to a DVI display at up to 1920 × 1200 or 1080p.
Which connections or mounting method are provided?

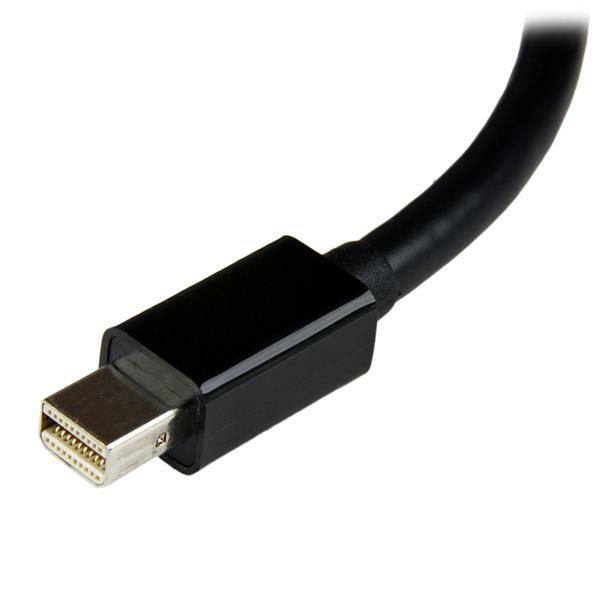

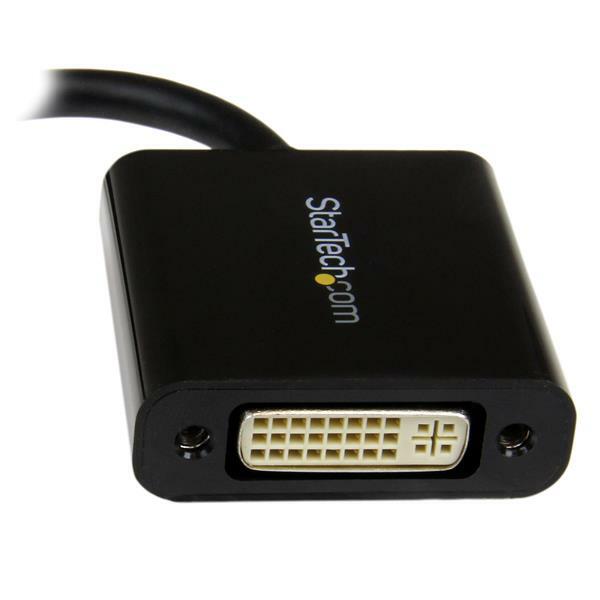

Mini DisplayPort 20-pin male to DVI-I 29-pin female
What performance is specified?
Up to 1920 × 1200 or 1080p; widescreen support; passive conversion; no audio
How is the product constructed?
Compact black 13cm adapter with plug-and-play operation
What maximum resolution is supported?
The adapter supports up to 1920 × 1200 or 1080p with compatible equipment.
Does it require a DP++ source?
Yes. Passive DVI signal pass-through requires a DP++ Mini DisplayPort source.
What should be checked before ordering?
A DP++ Mini DisplayPort source is required; the adapter provides video only and does not support audio.
What warranty applies?
MDP2DVI3 carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(MDP2DVI3)
Why choose MDP2DVI3?
MDP2DVI3 specifications
Exact-model specifications for compatibility checking. Measurements may be rounded.
| Warranty Information | |
|---|---|
| Warranty | 3 Years |
| Hardware | |
| Active or Passive Adapter | Passive |
| Adapter Style | Adapters |
| Audio | No |
| AV Input | DisplayPort |
| AV Output | DVI |
| Performance | |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Connector(s) | |
| Connector A | 1 - Mini-DisplayPort (20 pin) Male |
| Connector B | 1 - DVI-I (29 pin) Female |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Physical Characteristics | |
| Cable Length | 5.1 in [13 cm] |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 7.3 in [18.5 cm] |
| Product Width | 1.6 in [40 mm] |
| Weight of Product | 0.9 oz [26.5 g] |
| Packaging Information | |
| Package Height | 0.8 in [20 mm] |
| Package Length | 9.4 in [24 cm] |
| Package Width | 6.3 in [16 cm] |
| Shipping (Package) Weight | 1.8 oz [51 g] |
| What's in the Box | |
| Included in Package | 1 - Mini DisplayPort® to DVI Adapter |
Sources: https://www.devicedeal.com.au/startech-mini-displayport-dp-to-dvi-video-adapter and https://www.startech.com/
| SKU | MDP2DVI3 |
| Barcode # | 65030848695 |
| Brand | Startech |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000900000m3 |
This Australian-version product is supplied by DeviceDeal and is covered by the 3-year manufacturer warranty term listed for this exact product.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
