StarTech.com · HDACFM

Mini HDMI Male to HDMI Female Adapter

Convert a Mini HDMI Type-C port to a standard HDMI Type-A female connection in a compact passive adapter supporting up to 4K 30Hz.

Mini HDMI maleHDMI female4K 30Hz10.2Gbps

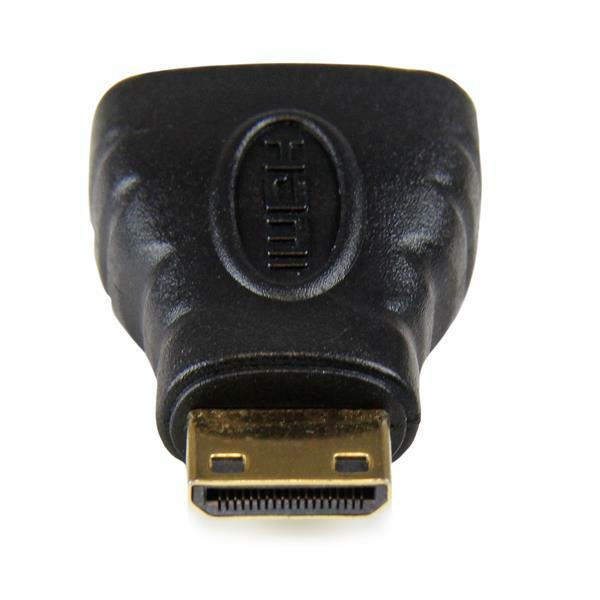

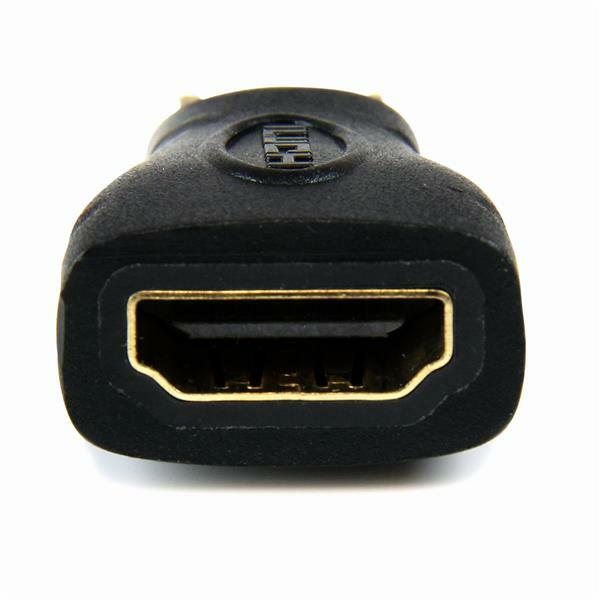

StarTech HDACFM Mini HDMI Male to HDMI Female Adapter

Built for dependable use

Mini-to-standard HDMI conversion

Lets a Mini HDMI device connect through a regular male-to-male HDMI cable.

4K HDMI support

Supports 3840 × 2160 at 30Hz and 4096 × 2160 at 24Hz with compatible equipment.

Audio and video features

Carries 3D video, ARC and up to eight audio channels.

Compact moulded design

The 28mm passive adapter is easy to carry with a camera or tablet.

What to know before you connect

The device must have a Mini HDMI Type-C port, not Micro HDMI.
A separate standard HDMI male-to-male cable is required.
Maximum performance depends on the source, added HDMI cable and display.
This passive adapter does not convert to another video standard.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com lifetime manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HDACFM do?

It changes a Mini HDMI Type-C male connection into a standard HDMI Type-A female port.

What connections does the HDACFM provide?

It has one Mini HDMI Type-C male connector and one standard HDMI Type-A female connector.

What is the maximum verified performance?

It supports up to 3840 × 2160 at 30Hz or 4096 × 2160 at 24Hz and bandwidth up to 10.2Gbps.

How is the HDACFM powered?

It is a passive HDMI adapter and does not require power.

What compatibility should I check?

It connects Mini HDMI Type-C devices such as compatible cameras or tablets to a standard HDMI cable and display.

Is this adapter for Micro HDMI?

No. It uses Mini HDMI Type-C; Micro HDMI Type-D is a different connector.

What is included in the package?

The package includes one Mini HDMI male-to-HDMI female adapter.

What warranty applies in Australia?

The Australian-version HDACFM supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HDACFM)

Features and highlights

Mini-to-standard HDMI conversion

Lets a Mini HDMI device connect through a regular male-to-male HDMI cable.

4K HDMI support

Supports 3840 × 2160 at 30Hz and 4096 × 2160 at 24Hz with compatible equipment.

Audio and video features

Carries 3D video, ARC and up to eight audio channels.

Compact moulded design

The 28mm passive adapter is easy to carry with a camera or tablet.

Gold-plated connectors

Corrosion-resistant contacts support dependable signal integrity.

Key highlights

HDMI 1.4b and earlier
HDCP 1.4 and CEC support
Black PVC moulding
No external power

Official StarTech.com lifetime manufacturer warranty in Australia.

Technical specifications

StarTech HDACFM · Mini HDMI Male to HDMI Female Adapter

Warranty Information

Warranty

Lifetime

Performance

HDMI Revision

HDMI 1.4b and earlier

Maximum Resolution

3840 × 2160 at 30Hz; 4096 × 2160 at 24Hz

Bandwidth

10.2Gbps

Audio

Up to 8 channels

Additional Support

ARC, 3D, HDCP 1.4 and CEC

Connectors

Connector A

1 × HDMI Type-A female

Connector B

1 × Mini HDMI Type-C male

Plating

Gold

Physical Characteristics

Colour

Black

Length

28mm

Width

22mm

Height

13mm

Weight

Package Contents

Included

1 × HDMI-to-Mini-HDMI adapter, female/male

SKU	HDACFM
Barcode #	65030848527
Brand	STARTECH
Shipping Weight	0.0200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.030m
Shipping Cubic	0.000150000m3
