Up to 8K 60Hz with DSC
DisplayPort 1.4 video supports 8K 60Hz with DSC, plus 8K 30Hz without DSC and 4K 60Hz support with compatible source and display hardware.
Startech CDP2DPEC USB C to DisplayPort Adapter 8K/4K 60Hz
Model # CDP2DPEC
-
SKU: CDP2DPEC
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2DPEC

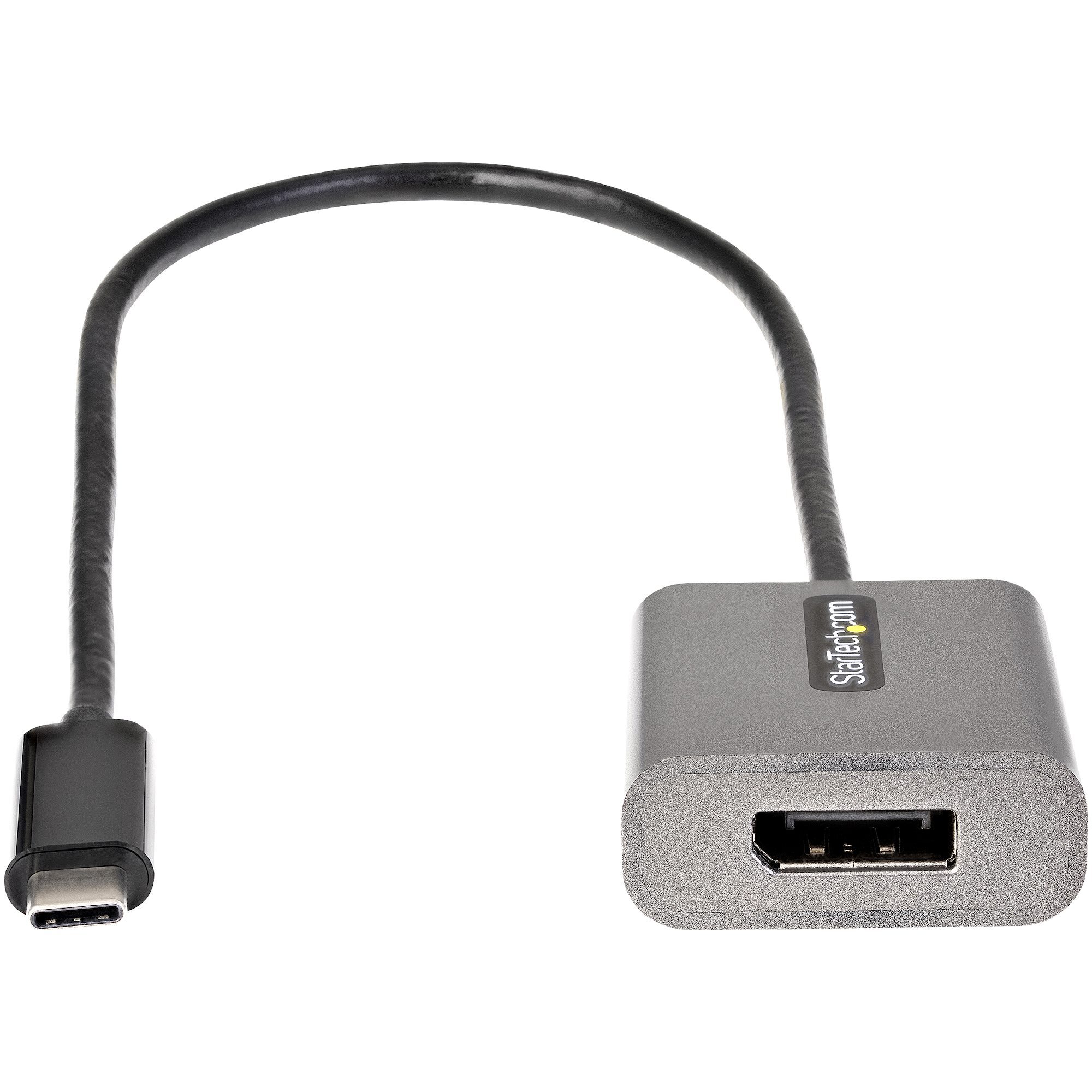

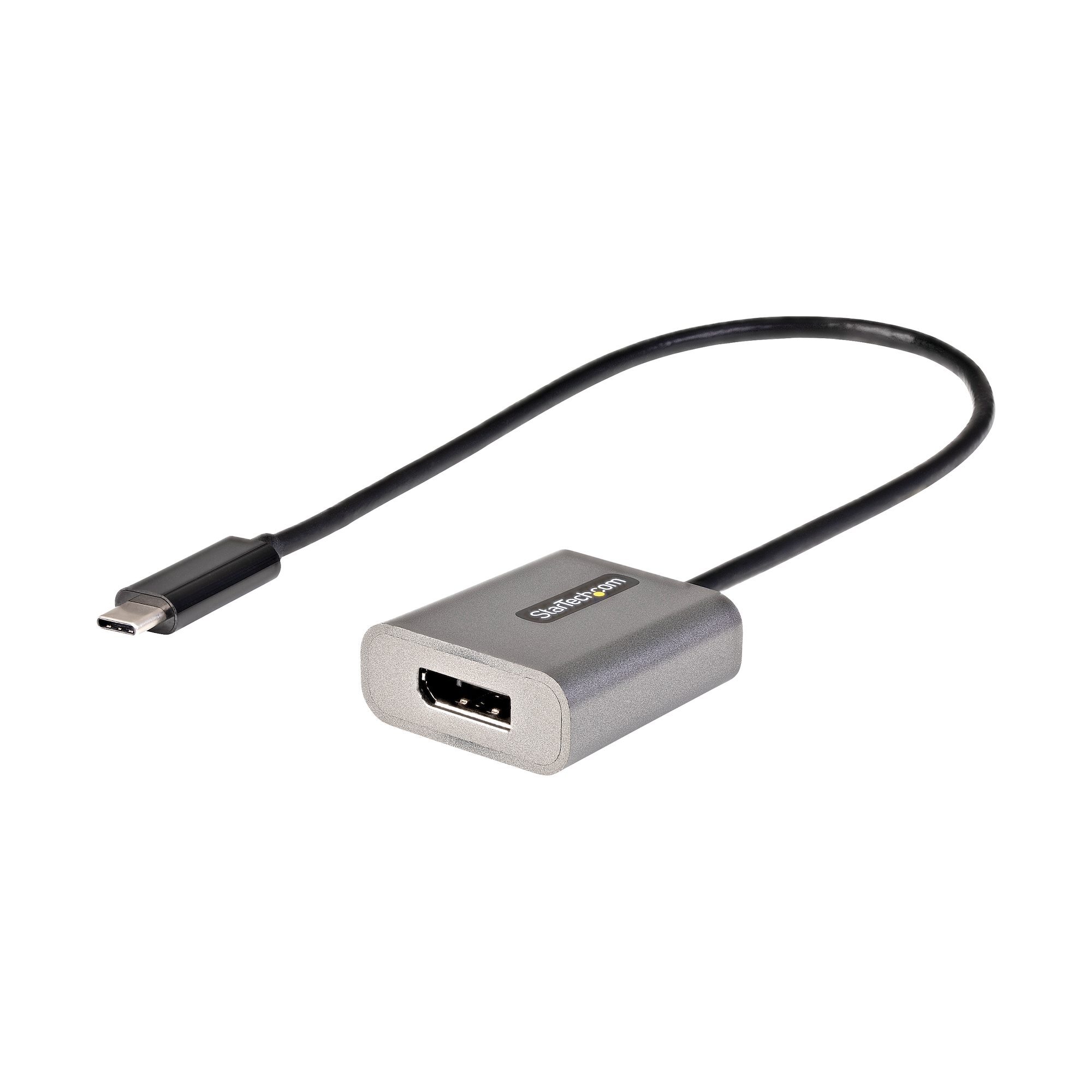

StarTech USB-C to DisplayPort 1.4 Adapter - 30cm Cable
Add a DisplayPort output with extra reach using a compact adapter with a 300mm USB-C cable and up to 8K 60Hz support.
DisplayPort 1.4Up to 8K 60Hz with DSCHBR3 + DSCDP Alt Mode
Product overview
CDP2DPEC supports DisplayPort 1.4, HBR3, DSC and HDCP for high-resolution displays. Maximum 8K 60Hz output requires compatible DSC support throughout the connection.
Features that matter
Direct USB-C to DisplayPort output
Connect a USB-C DisplayPort Alt Mode host directly to one DisplayPort display through the DisplayPort female port.
Active integrated conversion
Active integrated conversion supports a compact, driverless connection without a separate video converter.
Driverless multi-platform use
Plug-and-play operation supports compatible compatible driverless USB-C DP Alt Mode systems systems without additional drivers.
What to know before ordering
Host and display requirements
The USB-C host must support DisplayPort Alt Mode. 8K 60Hz requires DisplayPort 1.4 HBR3 with DSC at both source and display.
Resolution depends on the full setup
Maximum resolution and refresh rate require the source, display and DisplayPort 1.4 link to support the stated mode.
Extended cable design
The 300mm attached cable provides additional reach for laptops on stands and 2-in-1 devices. The adapter has no charging input.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2DPEC?
CDP2DPEC is a usb-c to displayport 1.4 adapter with extended cable for connecting a USB-C DisplayPort Alt Mode host to one DisplayPort display.
What is the maximum resolution?
The verified maximum is 8K 60Hz with DSC, with 8K 30Hz without DSC and 4K 60Hz support. Actual output depends on the source, display and connection mode.
What must the USB-C port support?
The USB-C host must support DisplayPort Alt Mode. Both source and display must support DisplayPort 1.4 for the highest 8K mode.
Is the connection bidirectional?
No. It is designed for video from a USB-C DP Alt Mode host to a DisplayPort display.
Does it require drivers?
No. It is designed for plug-and-play use with compatible compatible driverless USB-C DP Alt Mode systems systems.
Does it support Power Delivery?
No. It does not provide USB-C Power Delivery pass-through.
What is included in the package?
The package contains one USB-C to DisplayPort adapter.
What warranty applies in Australia?
CDP2DPEC is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2DPEC)
Features and highlights
CDP2DPEC key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Up to 8K 60Hz with DSC
DisplayPort 1.4 video supports 8K 60Hz with DSC, plus 8K 30Hz without DSC and 4K 60Hz support with compatible source and display hardware.
Direct USB-C to DisplayPort output
Connect a USB-C DisplayPort Alt Mode host directly to one DisplayPort display through the DisplayPort female port.
Active integrated conversion
Active integrated conversion supports a compact, driverless connection without a separate video converter.
Driverless multi-platform use
Plug-and-play operation supports compatible compatible driverless USB-C DP Alt Mode systems systems without additional drivers.
Key highlights
- 300mm attached USB-C cable attached USB-C cable
- DisplayPort 1.4 with HBR3 + DSC
- Up to 8K 60Hz with DSC
- USB-C host to DisplayPort display
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2DPEC
Verified specifications and package details for the exact model.
General and Connectivity
Product type
USB-C to DisplayPort 1.4 adapter
Direction
USB-C host to DisplayPort display
Connectors
USB-C male to DisplayPort female
Attached cable length
300mm (12in)
Number of displays
1
Warranty
3 Years
Video and Audio
Maximum resolution with DSC
7680 x 4320 at 60Hz
Maximum resolution without DSC
7680 x 4320 at 30Hz
Additional verified mode
3840 x 2160 at 60Hz
Video features
Display Stream Compression; HDCP 2.2; HDCP 1.4
Video revision
DisplayPort 1.4
Power Delivery
No PD pass-through
Requirements
Host requirement
USB-C DisplayPort Alt Mode
8K 60Hz requirement
DisplayPort 1.4 HBR3 with DSC at source and display
8K 30Hz requirement
DisplayPort 1.4 HBR3 at source and display
Driver requirement
No additional driver or software
Physical and Environmental
Colour
Grey
Material
Plastic
Product width
38.1mm
Product height
15.2mm
Product weight
25.5g
Packaging and In the Box
Package contents
1 x USB-C to DisplayPort adapter
| SKU | CDP2DPEC |
| Barcode # | 65030888851 |
| Brand | STARTECH |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.016m |
| Shipping Length | 0.011m |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2DPEC.
