StarTech MDP2DPDVHD Mini DisplayPort to DP, DVI or HDMI Adapter

Mini DisplayPort to DP, DVI or HDMI Adapter designed for professional IT, electronics, security or workstation use.

Quick answer: MDP2DPDVHD connects one Mini DisplayPort computer to a DisplayPort, DVI-D or HDMI display.

Best forOffices, classrooms and travel kits that encounter a mix of DisplayPort, DVI and HDMI display connections.

Check before orderingOnly one video output should be used at a time; maximum resolution is 2560 × 1600 over DisplayPort and 1920 × 1200 over DVI or HDMI.

Answers before you buy

Frequently asked questions

What is StarTech MDP2DPDVHD?

It is a passive three-output display adapter for Mini DisplayPort sources that connects one Mini DisplayPort computer to a DisplayPort, DVI-D or HDMI display.

Which connections or mounting method are provided?

Mini DisplayPort male input with DisplayPort, DVI-D and HDMI female outputs

What performance is specified?

DisplayPort up to 2560 × 1600; DVI/HDMI up to 1920 × 1200; 5.1-channel audio when supported

How is the product constructed?

Compact black passive plastic adapter with a fixed 150mm lead

Can all three outputs be used together?

No. It is intended to connect one display through one selected output at a time.

What is the maximum DisplayPort resolution?

The DisplayPort output supports up to 2560 × 1600 with compatible equipment.

What should be checked before ordering?

Only one video output should be used at a time; maximum resolution is 2560 × 1600 over DisplayPort and 1920 × 1200 over DVI or HDMI.

What warranty applies?

MDP2DPDVHD carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MDP2DPDVHD)

Features & highlights

Why choose MDP2DPDVHD?

?Purpose-built designMini DisplayPort male input with DisplayPort, DVI-D and HDMI female outputs

?Specified performanceDisplayPort up to 2560 × 1600; DVI/HDMI up to 1920 × 1200; 5.1-channel audio when supported

?Professional constructionCompact black passive plastic adapter with a fixed 150mm lead

?Key capabilityThree common display outputs reduce the need to carry separate adapters.

?Deployment advantagePlug-and-play operation requires no drivers and works with compatible DisplayPort-over-Thunderbolt sources.

?Order with confidenceOnly one video output should be used at a time; maximum resolution is 2560 × 1600 over DisplayPort and 1920 × 1200 over DVI or HDMI.

Compatibility reminder: Only one video output should be used at a time; maximum resolution is 2560 × 1600 over DisplayPort and 1920 × 1200 over DVI or HDMI.

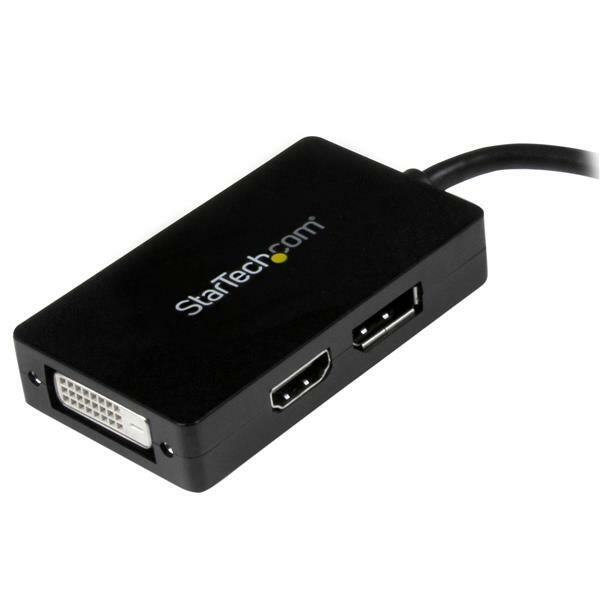

StarTech MDP2DPDVHD Mini DisplayPort to DP, DVI or HDMI Adapter product image

Technical specifications

MDP2DPDVHD specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	3 Years
Hardware
Adapter Type	Passive
AV Input	Mini DisplayPort
AV Outputs	DisplayPort, DVI-D and HDMI
Audio	Yes, source and output dependent
Connectors

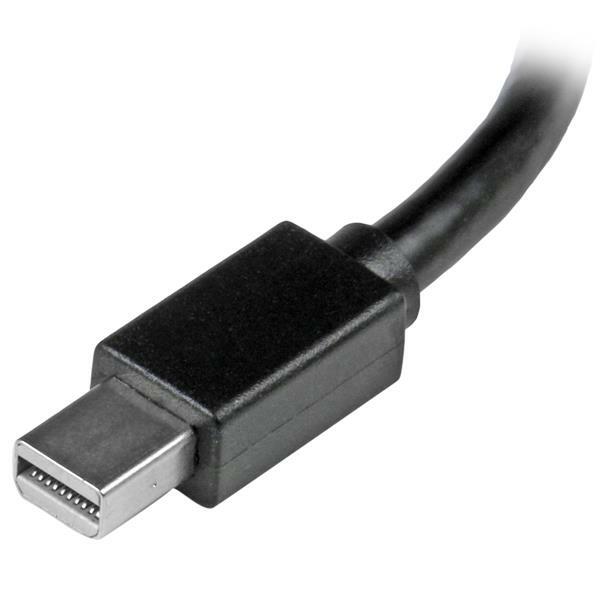

Input	1 × Mini DisplayPort 20-pin male
Outputs	1 × DisplayPort female; 1 × DVI-D female; 1 × HDMI female
Performance
Maximum DisplayPort Resolution	2560 × 1600
Maximum DVI / HDMI Resolution	1920 × 1200
Audio	Up to 5.1-channel where supported
Output Use	One display output at a time
Physical Characteristics
Colour / Material	Black plastic
Cable Length	150mm
Product Dimensions	240 × 45 × 15mm
Product Weight	47g
What's in the Box
Included	Mini DisplayPort to DP/DVI/HDMI adapter
