Retains a USB port
The built-in USB-A 5Gbps pass-through port helps offset the host port used by the video adapter.
StarTech 8.5cm USB 3.0 to HDMI Adapter Cable With 1 Port USB - USB32HDEH
Model # USB32HDEH
-
SKU: USB32HDEH
$191.00
Stock Availability
🟢Live
In Stock · 5+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB32HDEH
StarTech USB 3.0 to HDMI Adapter with USB Pass-Through
Add one HDMI or DVI display at up to 1920x1200 while replacing the occupied USB-A port with a built-in USB 5Gbps pass-through connection.
1920x1200 HDMIUSB-A pass-throughHDMI-to-DVI adapter
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
HDMI or DVI display
Connect an HDMI display directly or use the included HDMI-to-DVI adapter for a compatible DVI monitor.
Extended or mirrored desktop
Add one productivity display at up to 1920x1200 or mirror the primary desktop for presentations.
USB-powered Windows solution
The adapter takes power from USB and supports current Windows x86, x64 and ARM platforms listed by StarTech.
Australian version with official 3 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Product videos
Verified videos shown on this exact DeviceDeal product page.
USB32HDEH product video
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech USB32HDEH do?
It adds one HDMI display to a compatible Windows computer while providing a USB-A 5Gbps pass-through port.
How many displays does it support?
It supports one additional HDMI display at up to 1920x1200. The included HDMI-to-DVI adapter supports a compatible DVI display.
What is the maximum supported resolution?
The maximum listed digital resolution is 1920x1200, including 1080p formats.
Which connectors does it use?
It has a USB-A male host connector, one HDMI female output and one USB-A female 5Gbps pass-through port. An HDMI-to-DVI adapter is included.
Which operating systems are supported?
The current official product information specifies Windows x86, x64 and ARM platforms and explicitly excludes macOS, ChromeOS and Linux.
Does it need an external power supply?
No. It is USB bus-powered.
What should I check before purchase?
Confirm Windows compatibility and administrator rights for driver installation. Up to five compatible USB video adapters may be used subject to system resources; this model is not for gaming.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a 3 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB32HDEH)
Features and highlights
StarTech USB32HDEH
Retains a USB port
The built-in USB-A 5Gbps pass-through port helps offset the host port used by the video adapter.
HDMI or DVI display
Connect an HDMI display directly or use the included HDMI-to-DVI adapter for a compatible DVI monitor.
Extended or mirrored desktop
Add one productivity display at up to 1920x1200 or mirror the primary desktop for presentations.
USB-powered Windows solution
The adapter takes power from USB and supports current Windows x86, x64 and ARM platforms listed by StarTech.
- Trigger T6-688SL chipset
- Two-channel HDMI audio
- TAA compliant
- Current official warranty is three years
Warranty confidence: Australian-version product with a 3 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB32HDEH specifications organised from the supplied product data.
Warranty Information
| Warranty | 3 Years |
|---|
Hardware
| Displays Supported | 1 |
|---|---|
| Bus / AV Input | USB 3.2 Gen 1 (5Gbps) |
| AV Output | HDMI |
| Audio | Yes |
| Memory | 16MB |
| Chipset ID | Trigger T6-688SL |
| USB Pass-Through | Yes |
Performance
| Maximum Digital Resolution | 1920x1200 |
|---|---|
| Audio | 2-channel stereo |
Connector(s)

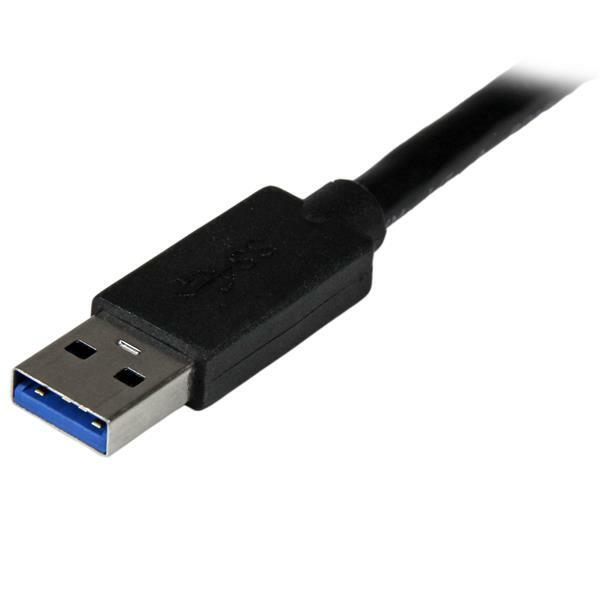

| Host Connector | 1 × USB-A male (5Gbps) |
|---|---|

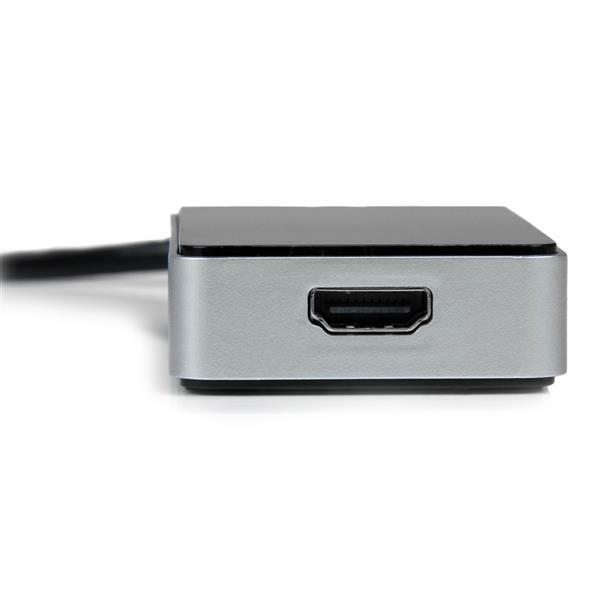

| Display Connector | 1 × HDMI female |

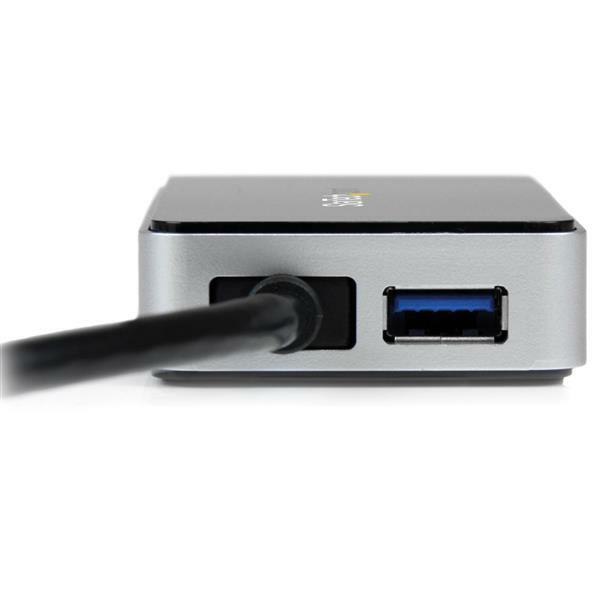

| Pass-Through | 1 × USB-A female (5Gbps) |
Software
| OS Compatibility | Windows only; current x86, x64 and ARM platforms listed by StarTech |
|---|---|
| Microsoft WHQL Certified | Yes |
Special Notes / Requirements
| System Requirements | Quad-core 2.4GHz processor (Core i5 recommended); 4GB RAM |
|---|---|
| Adapter Limit | Up to five compatible USB video adapters, subject to system resources |
| Use Limitation | Not intended for graphics-intensive applications such as gaming |
Environmental
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -10°C to 75°C (14°F to 167°F) |
| Humidity | Less than 85% non-condensing |
Physical Characteristics
| Color / Material | Black / Plastic |
|---|---|
| Cable Length | 6.3 in [160mm] |
| Product Size | 3.3 × 1.9 × 0.7 in [85 × 49 × 17mm] |
| Weight | 2.3 oz [66g] |
What's in the Box

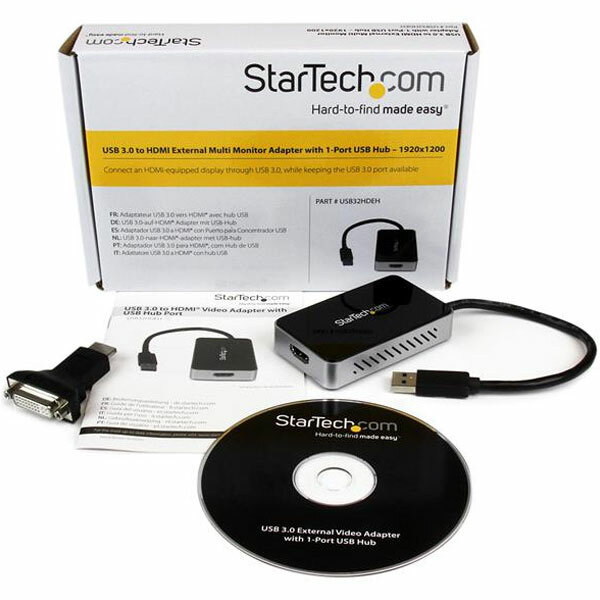

| Included | 1 × USB 3.0 to HDMI adapter; 1 × HDMI-to-DVI adapter; 1 × software CD; 1 × manual |
|---|
| SKU | USB32HDEH |
| Barcode # | 65030850629 |
| Brand | Startech |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.040m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001260000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 3 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
