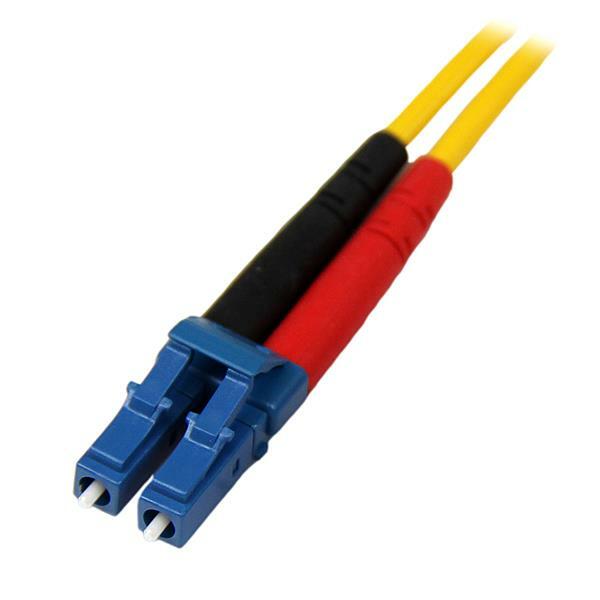

The SMFIBLCLC10 10m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
(SMFIBLCLC10)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Fiber Size | 9/125 | |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) | |
| Performance | ||
| Cable Rating | 10Gbps / 40Gbps / 100Gbps | |
| Fiber Classification | OS1 | |
| Maximum Data Transfer Rate | 100Gbps | |
| Type | Single Mode | |
| Connector(s) | ||
| Connector A | 1 - Fiber Optic LC Duplex Male | |
| Connector B | 1 - Fiber Optic LC Duplex Male | |
| Environmental | ||
| Humidity | 0~90% RH | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Physical Characteristics | ||
| Cable Length | 32.8 ft [10 m] | |
| Color | Yellow | |
| Product Height | 0.000 | |
| Product Length | 32.8 ft [10 m] | |
| Product Width | 0.000 | |
| Weight of Product | 4.9 oz [140 g] | |
| Packaging Information | ||
| Package Height | 1 in [25 mm] | |
| Package Length | 8.7 in [22 cm] | |
| Package Quantity | 1 | |
| Package Width | 7.9 in [20 cm] | |
| Shipping (Package) Weight | 5.3 oz [149 g] | |
| What's in the Box | ||
| Included in Package | 1 - 10m Single Mode Duplex Fiber Patch Cable LC-LC | |
| SKU | SMFIBLCLC10 |
| Barcode # | 65030853064 |
| Brand | STARTECH |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
