StarTech 3m Multimode Fiber Patch Cable LC, ST - FIBLCST3
Model # FIBLCST3
-
SKU: FIBLCST3
- Pick Up Available
- Australian Warranty
- Checkout Securely
3m (10ft) OM1 Multimode Duplex Fibre Patch Cable LC/ST
Connect compatible multimode fibre networking equipment with a 3m (10ft) duplex 62.5/125µm OM1 patch cable using LC and ST connectors.

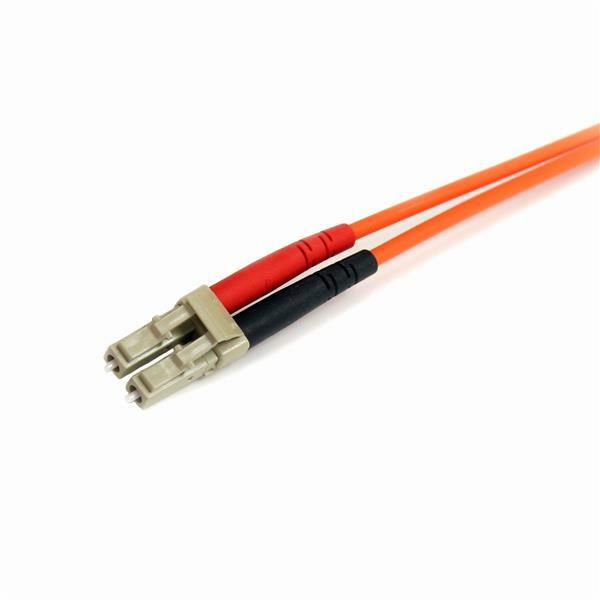

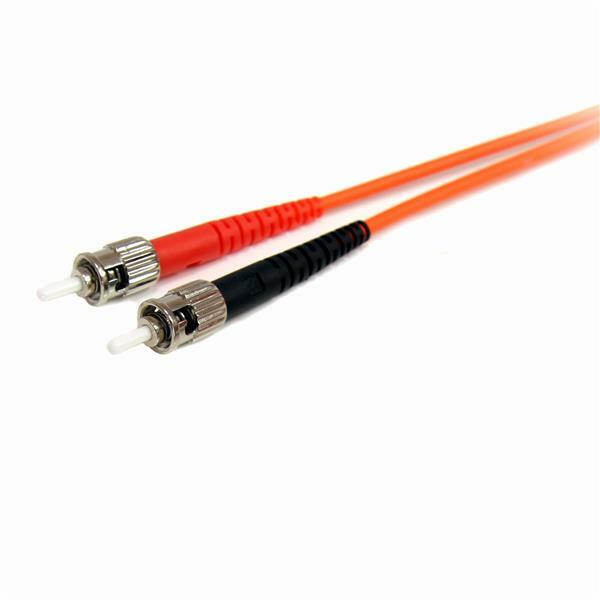

Duplex LC/ST connection
Provides one duplex LC connector and one duplex ST connector for transmit and receive fibre paths.
OM1 62.5/125µm fibre
Designed for compatible multimode network equipment and cable plants using OM1 fibre.
LSZH orange jacket
Low-Smoke Zero-Halogen construction is suited to installations where LSZH cabling is required.
What to know
Both connected devices must use multimode optics and match the LC/ST connector configuration. Confirm the links wavelength, Ethernet standard and OM1 distance requirement; the cable cannot change optical mode, wavelength or transceiver capability.
Frequently asked questions
What type of fibre is the FIBLCST3?
It is a duplex 62.5/125µm OM1 multimode fibre patch cable.
Which connectors are on the FIBLCST3?
It has one duplex LC connector and one duplex ST connector.
How long is the FIBLCST3?
The cable is 3m (10ft) long.
What network rates is the FIBLCST3 rated for?
It is rated for 1Gbps and 10Gbps applications, subject to the optics, network standard and OM1 distance limit.
Is the FIBLCST3 single-mode or multimode?
It is multimode OM1 cable and must be used with compatible multimode optical equipment.
What jacket does the FIBLCST3 use?
It uses an orange Low-Smoke Zero-Halogen jacket with an LSZH fire rating.
Can the FIBLCST3 change wavelength or fibre mode?
No. The cable must match the mode, wavelength, connector and standard used by the connected equipment.
What warranty applies to the FIBLCST3?
It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(FIBLCST3)
Features and highlights
- 3m (10ft) duplex fibre patch cable
- Duplex LC connector to duplex ST connector
- 62.5/125µm OM1 multimode fibre
- Rated for 1Gbps and 10Gbps applications within equipment distance limits
- LSZH Low-Smoke Zero-Halogen jacket
- Flame-retardant and halogen-free construction
- Immune to electrical interference
- Orange jacket for multimode identification
- Individually tested for optical insertion-loss performance
- Lifetime StarTech.com manufacturer warranty
Specifications
| Product type | Duplex multimode fibre optic patch cable |
|---|---|
| Connector A | 1 × fibre optic LC duplex |
| Connector B | 1 × fibre optic ST duplex |
| Cable length | 3m (10ft) |
| Fibre mode | Multimode |
| Fibre classification | OM1 |
| Core / cladding diameter | 62.5/125µm |
| Cable rating | 1Gbps / 10Gbps; maximum link distance depends on optics and standard |
| Jacket material | Low-Smoke Zero-Halogen (LSZH) |
| Fire rating | LSZH rated |
| Colour | Orange |
| Electrical interference | Immune |
| Operating temperature | -20°C to 60°C |
| Storage temperature | -20°C to 60°C |
| Humidity | 0% to 90% RH |
| Product weight | 40.8g in the supplied catalogue; current official specification lists 52g |
| In the box | 1 × 3m (10ft) OM1 multimode duplex fibre patch cable LC/ST |
| Warranty | Lifetime StarTech.com manufacturer warranty |
| SKU | FIBLCST3 |
| Barcode # | 65030797719 |
| Brand | STARTECH |
| Shipping Weight | 0.0600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
