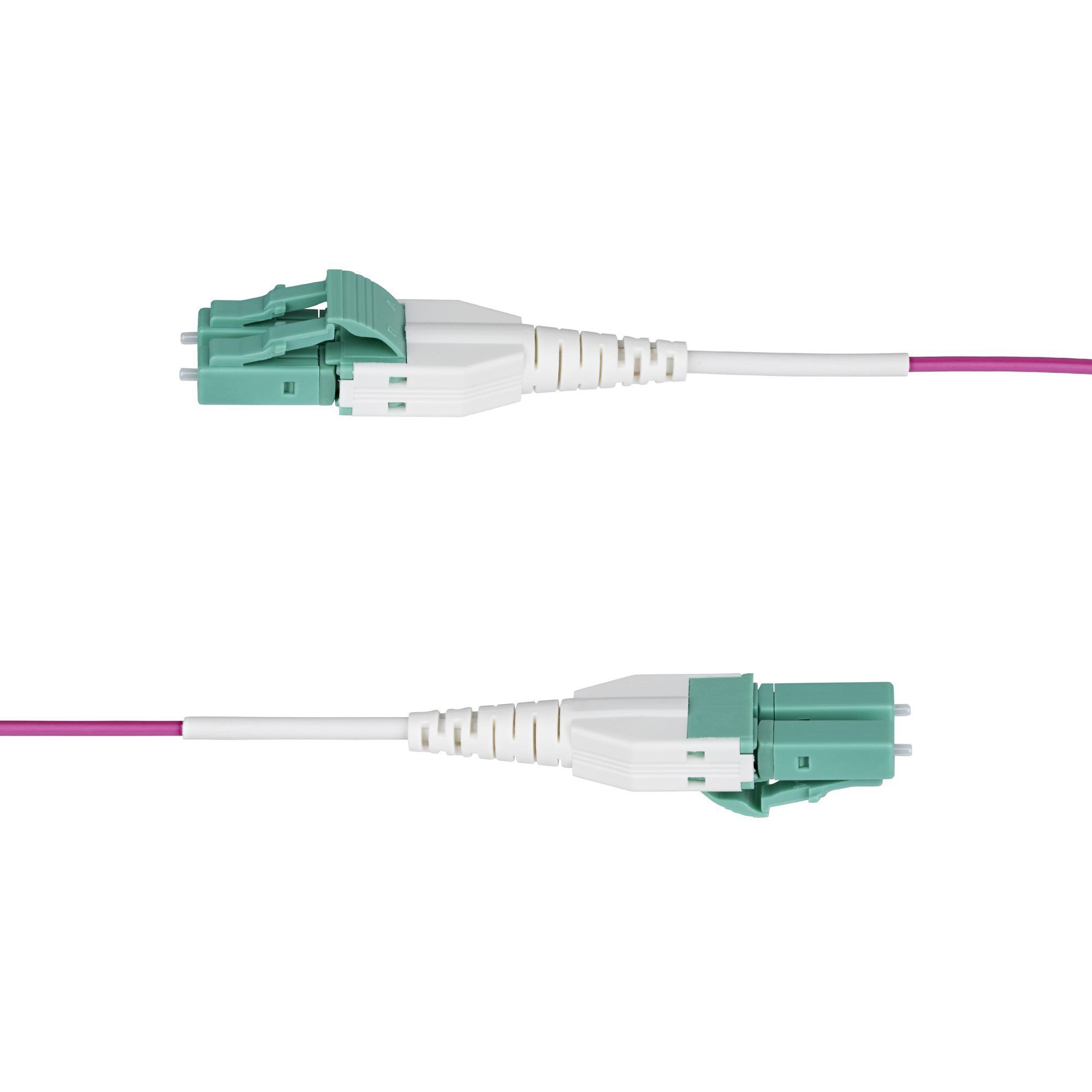

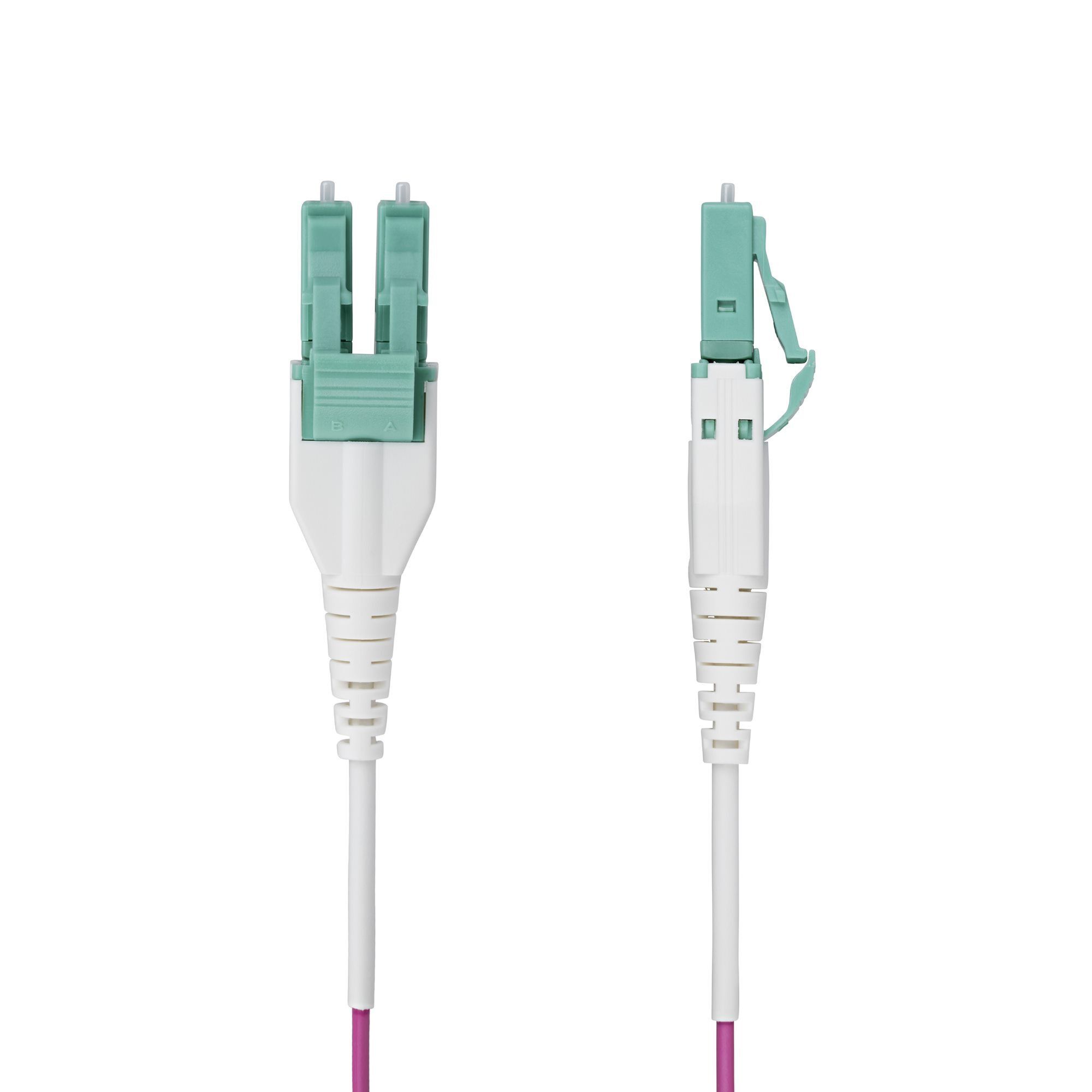

StarTech OM4RLCLC1M 1 m LC-LC UPC OM4 multimode fibre cable

Erika Violet OM4 duplex fibre connectivity for 40/100 Gigabit Ethernet and Fibre Channel, with UPC-polished LC connectors and OFNR riser-rated construction.

1 mOM4 50/125 µm100GbpsLC Duplex UPCOFNR RiserErika Violet

StarTech OM4RLCLC1M 1 m LC-LC UPC OM4 multimode fibre cable

40G/100G OM4

Laser-optimised OM4 multimode fibre supports high-speed 40 and 100 Gigabit network applications.

LC duplex UPC

UPC-polished LC duplex ends improve return-loss performance for high-density fibre connections.

Erika Violet jacket

TIA-standard Erika Violet helps distinguish OM4 from Aqua OM3/OM4 cabling.

OFNR riser rated

Flame-retardant riser construction is intended for vertical shafts and riser spaces in commercial buildings.

What to know

50/125 µm laser-optimised multimode fibre.
Supports 850 nm and 1300 nm VCSEL/LED sources.
Backward compatible with OM3 and 1/10/40Gbps fibre networks.
No exact DeviceDeal product-video link is shown for this SKU.

Australian warranty confidence

This Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech OM4RLCLC1M?

The OM4RLCLC1M is a 1 m Erika Violet OM4 multimode duplex fibre optic patch cable with LC duplex connectors at both ends.

What network speeds does the OM4RLCLC1M support?

It supports 1Gbps, 10Gbps, 40Gbps and 100Gbps full-duplex fibre applications with compatible equipment.

What fibre size does the OM4RLCLC1M use?

It uses 50/125 micrometre laser-optimised multimode fibre.

What connectors does the OM4RLCLC1M use?

It uses LC duplex connectors at both ends with UPC-polished fibre ends.

What wavelengths does the OM4RLCLC1M support?

Current exact-SKU StarTech information specifies 850 nm and 1300 nm operation for VCSEL and LED sources.

Is the OM4RLCLC1M backward compatible?

Yes. It is backward compatible with OM3 fibre environments and 1/10/40Gbps networks.

What fire rating does the OM4RLCLC1M use?

It uses an OFNR riser-rated jacket designed for vertical riser and shaft installations.

What warranty applies to the OM4RLCLC1M in Australia?

The Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility requirements and product assessment. Retain the DeviceDeal tax invoice as proof of purchase.

(OM4RLCLC1M)

Features and highlights

Up to 100Gbps

Supports 1/10/40/100Gbps full-duplex fibre applications with compatible equipment.

OM4 multimode

50/125 µm laser-optimised multimode fibre suits high-speed Ethernet and Fibre Channel.

LC duplex UPC

Precision LC duplex connectors use UPC-polished ends for improved return-loss performance.

Erika Violet

TIA-standard jacket colour clearly identifies this OM4 fibre run.

OFNR riser

Riser-rated jacket helps limit vertical flame propagation in building riser spaces.

High-density uniboot

Compact uniboot connector design improves access and airflow in dense fibre installations.

Key highlights

OM4 classification
50/125 µm fibre
850/1300 nm
LC duplex to LC duplex
UPC polished
Lifetime StarTech.com warranty

Warranty confidence

Lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase.

Specifications

StarTech OM4RLCLC1M 1 m Erika Violet OM4 LC duplex to LC duplex fibre optic patch cable

Source note: DeviceDeal currently lists 30 g shipping weight. The current exact-SKU StarTech datasheet lists 26 g packaged weight, so 26 g is used.

General

Product

StarTech OM4RLCLC1M OM4 multimode duplex fibre optic patch cable

Warranty

Lifetime official StarTech.com manufacturer warranty

Fibre classification

OM4

Fibre size

50/125 µm

Fibre type

Multimode / laser-optimised multimode fibre

Maximum data transfer rate

100 Gbps

Cable rating

1Gbps / 10Gbps / 40Gbps / 100Gbps

Modal bandwidth

2000 MHz/km at 850 nm

Connectors and optical performance

Connector A

1 x LC duplex fibre optic

Connector B

1 x LC duplex fibre optic

Connector polish

UPC

Wavelengths

850 nm / 1300 nm

Light sources

VCSEL and LED

Backward compatibility

OM3; 1/10/40Gbps fibre networks

Attenuation

3 dB/km, TIA-compliant

Construction and environment

Colour

Erika Violet

Cable length

1 m

Cable jacket

OFNR Riser

Fire rating

OFNR Riser

Cable outer diameter

1.6 mm

Minimum bend radius

7.5 mm

Strain protection

Moulded strain relief with protective aramid fibre

Operating temperature

-20¡C to 60¡C

Storage temperature

-20¡C to 60¡C

Humidity

0% to 90% RH

Packaging and in the box

Shipping weight

26 g

Included

1 x 1 m OM4 multimode fibre optic cable LC-LC
