Direct Micro HDMI connection
Connects a Micro HDMI Type-D source directly to a DVI-D Single-Link monitor or projector.

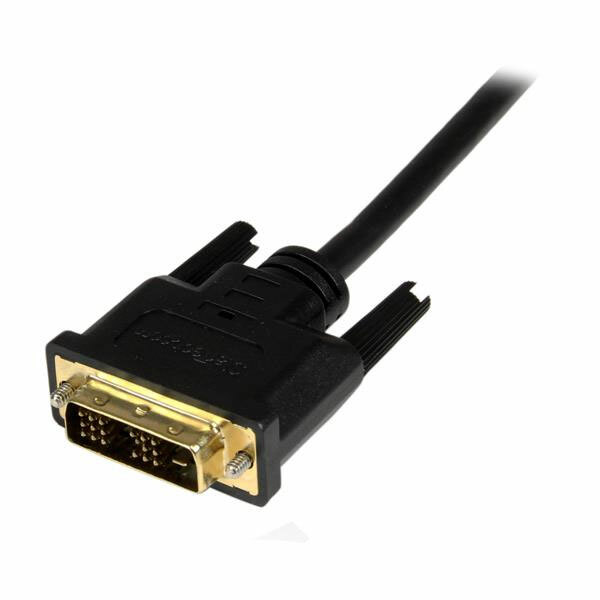

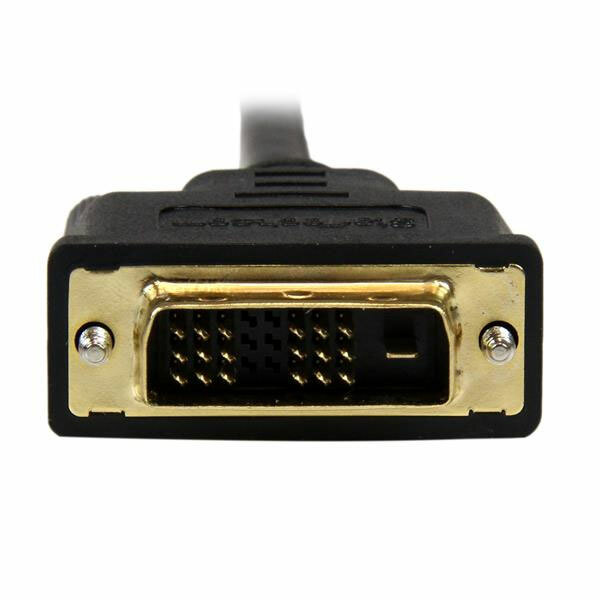

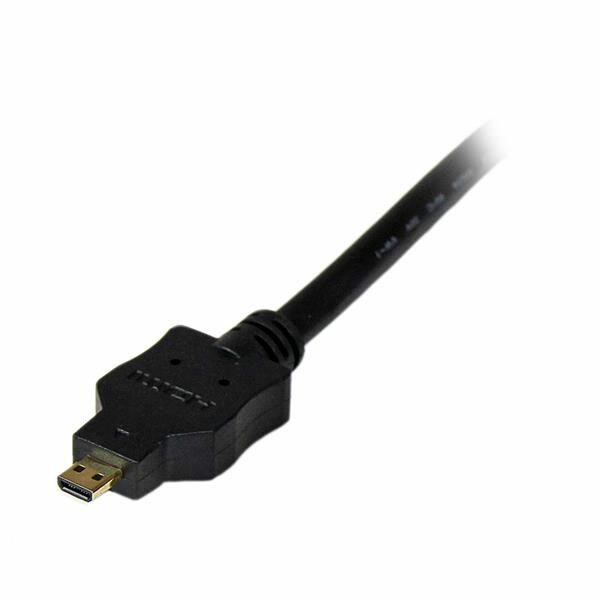

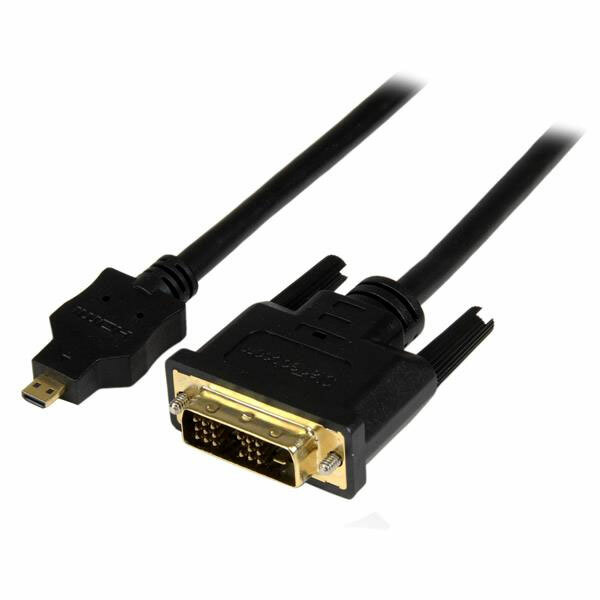

StarTech 1.0m Micro HDMI to DVI-D Male-Male Adapter Cable - HDDDVIMM1M
Model # HDDDVIMM1M
-
SKU: HDDDVIMM1M
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HDDDVIMM1M
1m Micro HDMI to DVI-D Cable
Connect a Micro HDMI Type-D camera, tablet or compact computer to a DVI-D display with a 1m passive cable supporting up to 1920 × 1200 at 60Hz.
1m cableMicro HDMI to DVI-D1920 × 1200Passive
Built for dependable use
Full HD-class video
Supports digital video up to 1920 × 1200 at 60Hz, including 1080p.
Single-cable video path
Male connectors at both ends remove the need for a separate adapter.
Shielded construction
30AWG conductors use aluminium-Mylar foil and copper-braid shielding.
What to know before you connect
- The cable carries digital video only; DVI-D does not provide the HDMI audio path.
- The source must use Micro HDMI Type-D, not Mini HDMI Type-C.
- The DVI connection is digital Single-Link, not analogue DVI-A.
- Maximum verified output is 1920 × 1200 at 60Hz.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com lifetime manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What does the StarTech HDDDVIMM1M do?
It carries digital video from a Micro HDMI Type-D source to a DVI-D display or projector.
What connections does the HDDDVIMM1M provide?
It has one Micro HDMI Type-D male connector and one DVI-D Single-Link male connector.
What is the maximum verified performance?
It supports up to 1920 × 1200 at 60Hz, including 1080p, with 3.9Gbps video bandwidth.
How is the HDDDVIMM1M powered?
It is a passive video cable and requires no external power.
What compatibility should I check?
It supports Micro HDMI Type-D sources and digital DVI-D Single-Link displays; it does not convert to analogue VGA or DVI-A.
Does this cable carry audio to the DVI display?
No. It carries digital video; use a separate audio connection when sound is required.
What is included in the package?
The package includes one 1m Micro HDMI-to-DVI-D male-to-male cable.
What warranty applies in Australia?
The Australian-version HDDDVIMM1M supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HDDDVIMM1M)
Features and highlights
Direct Micro HDMI connection
Connects a Micro HDMI Type-D source directly to a DVI-D Single-Link monitor or projector.
Full HD-class video
Supports digital video up to 1920 × 1200 at 60Hz, including 1080p.
Single-cable video path
Male connectors at both ends remove the need for a separate adapter.
Shielded construction
30AWG conductors use aluminium-Mylar foil and copper-braid shielding.
Durable moulded design
Gold-plated contacts, a PVC jacket and flexible strain relief support regular use.
Key highlights
- Micro HDMI Type-D male
- DVI-D Single-Link male
- 3.9Gbps video bandwidth
- 24bpp RGB colour depth
Official StarTech.com lifetime manufacturer warranty in Australia.
Technical specifications
StarTech HDDDVIMM1M · 1m Micro HDMI to DVI-D Cable
Warranty Information
Warranty
Lifetime
Hardware
Active or Passive Adapter
Passive
Cable Jacket Type
PVC - Polyvinyl Chloride
Cable Shield Type
Aluminum-Mylar Foil with Braid
Connector Plating
Gold
Connector(s)
Connector A
1 - Micro HDMI (19 pin) Male
Connector B
1 - DVI-D (19 pin) Male
Physical Characteristics
Cable Length
3.3 ft [1 m]
Color
Black
Connector Style
Straight
Product Height
0.6 in [1.6 cm]
Product Length
3.3 ft [1 m]
Product Width
1.6 in [39.5 mm]
Weight of Product
2.5 oz [71.6 g]
Wire Gauge
30 AWG
Packaging Information
Package Height
0.4 in [10 mm]
Package Length
8.7 in [22 cm]
Package Quantity
1
Package Width
7.9 in [20 cm]
Shipping (Package) Weight
2.9 oz [81.8 g]
What's in the Box
Included in Package
1 - 1m Micro HDMI® to DVI-D Cable - M/M
Performance
Maximum Resolution
1920 × 1200 at 60Hz; 1080p
Link Type
DVI-D Single-Link
Bandwidth
3.9Gbps
Colour Depth
24bpp RGB
Audio
Not carried through DVI-D
Official Physical Details
Cable Length
1m [3.3ft]
Weight
71.6g
| SKU | HDDDVIMM1M |
| Barcode # | 65030853163 |
| Brand | Startech |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001100000m3 |
