StarTech.com RH2A-7M-HDMI-CABLE

Active HDMI 2.0 cable for long-distance 4K connections

A 7 m (23 ft) active High Speed HDMI cable with Ethernet for HDMI-enabled sources and displays, supporting up to 4K 60Hz, 18Gbps bandwidth and HDR10 with a bus-powered signal amplifier.

7 m (23 ft)4K 60Hz18Gbps2-year warranty

StarTech RH2A-7M-HDMI-CABLE active HDMI 2.0 cable

Key capabilities

4K 60Hz over distance

Carries HDMI 2.0 video up to 4096 x 2160 at 60Hz across the 7 m (23 ft) cable run.

Active bus-powered amplifier

Built-in active circuitry boosts the HDMI signal and does not require a separate external power adapter.

HDMI 2.0 feature support

Supports HDR10, ARC, Deep Color, HDCP 2.2, CEC, BT.2020 colourimetry and 32-channel HDMI audio.

Durable construction

Uses 100% copper 28AWG conductors, a TPE jacket, gold-plated connectors and aluminium-Mylar shielding with braid.

What to know before buying

This active HDMI cable is unidirectional. Connect the end labelled Source to the HDMI source and the end labelled Display to the TV, monitor or projector. Reversing the cable direction will prevent normal operation.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech RH2A-7M-HDMI-CABLE designed for?

It is an active 7 m (23 ft) HDMI 2.0 cable for connecting HDMI sources to displays over a longer cable run.

What maximum video resolution does it support?

It supports up to 4K at 60Hz, including resolutions up to 4096 x 2160p.

What HDMI bandwidth does the cable support?

The official specification lists up to 18Gbps bandwidth.

Does the active amplifier need an external power supply?

No. The built-in amplifier is bus-powered through the HDMI connection.

Can this HDMI cable be installed in either direction?

No. It is unidirectional and the Source and Display connector labels must be followed.

Which HDMI features are supported?

It supports HDMI 2.0 features including HDR10, ARC, Deep Color, HDCP 2.2, CEC, BT.2020 colourimetry and 32-channel audio.

What is included in the package?

The package contains one 7m Rugged Active HDMI 2.0 Cable.

What warranty applies to the StarTech RH2A-7M-HDMI-CABLE in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RH2A-7M-HDMI-CABLE)

Features and highlights

4K 60Hz over distance

Carries HDMI 2.0 video up to 4096 x 2160 at 60Hz across the 7 m (23 ft) cable run.

Active bus-powered amplifier

Built-in active circuitry boosts the HDMI signal and does not require a separate external power adapter.

HDMI 2.0 feature support

Supports HDR10, ARC, Deep Color, HDCP 2.2, CEC, BT.2020 colourimetry and 32-channel HDMI audio.

Durable construction

Uses 100% copper 28AWG conductors, a TPE jacket, gold-plated connectors and aluminium-Mylar shielding with braid.

7 m (23 ft)
4K 60Hz
18Gbps
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RH2A-7M-HDMI-CABLE.

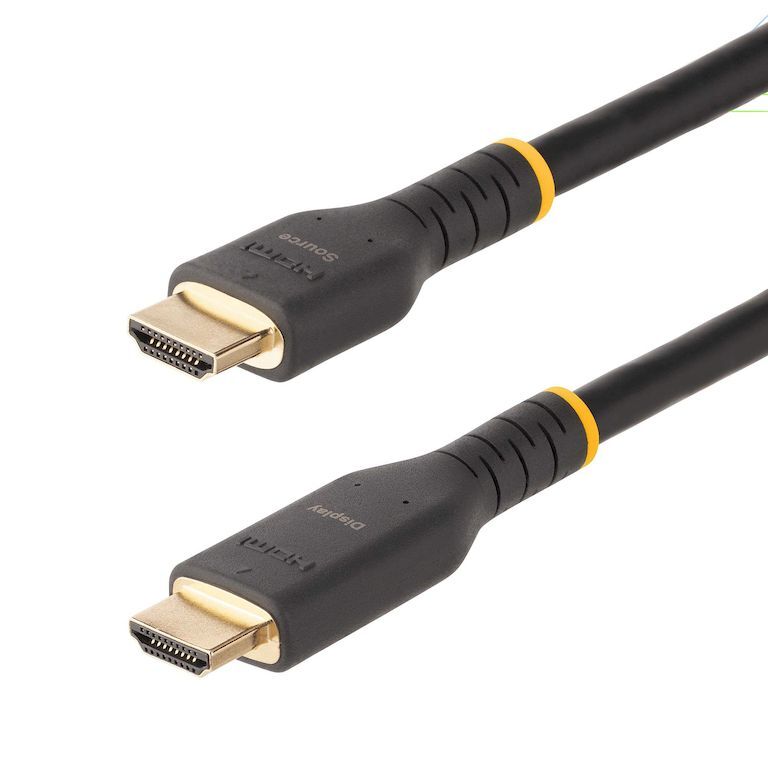

StarTech RH2A-7M-HDMI-CABLE product image

General

Warranty	2 Years
Adapter type	Active
Industry standard	HDMI 2.0
Number of conductors	19
Chipset ID	Spectra7 - HT8181

Performance

Maximum digital resolution	4K 60Hz up to 4096 x 2160p
Bandwidth	18Gbps
HDR	HDR10
Audio	HDMI - 32 Channel Audio; up to 1536Hz sampling
Additional features	ARC, Deep Color, HDCP 2.2, CEC, BT.2020 colourimetry

Connectors and Requirements

Connector A	1 × HDMI (19 pin)
Connector B	1 × HDMI (19 pin)
Directionality	Unidirectional; connect the "Source" end to the source and the "Display" end to the display
External power	Not required; active amplifier is bus-powered

Construction

Connector plating	Gold
Cable jacket	TPE - Thermoplastic Elastomers
Shielding	Aluminum-Mylar Foil with Braid
Wire gauge	28 AWG
Cable length	23.0 ft [7 m]
Cable OD	0.3 in [7.5 mm]
Colour	Black
Connector style	Straight
Weight of product	1.0 lb [0.5 kg]

Environmental

Operating temperature	0 to 50C (32 to 122F)
Storage temperature	0 to 50C (32 to 122F)
Humidity	0 to 85% RH

Packaging and In the Box

Package quantity	1
Package length	7.9 in [20.1 cm]
Package width	9.8 in [24.8 cm]
Package height	1.8 in [4.5 cm]
Included in package	1 × 7m Rugged Active HDMI 2.0 Cable

SKU	RH2A-7M-HDMI-CABLE
Barcode #	65030897037
Brand	STARTECH
Shipping Weight	0.4000kg
Shipping Width	0.230m
Shipping Height	0.030m
Shipping Length	0.320m

2-year official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
