Teltonika Mini UPS, Two 4-pin DC ports Power Supply, DIN rail and surface mounting options - 6hrs Runtime at Full Load

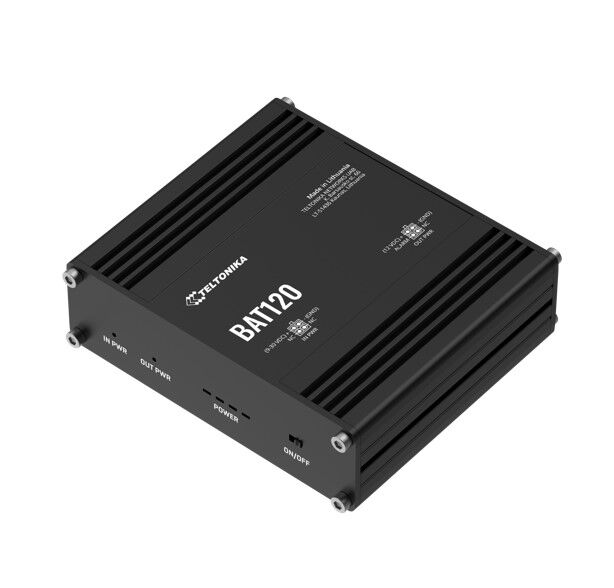

BAT120 – UNINTERRUPTIBLE POWER SUPPLY

BAT120 is the first uninterrupted power supply from Teltonika

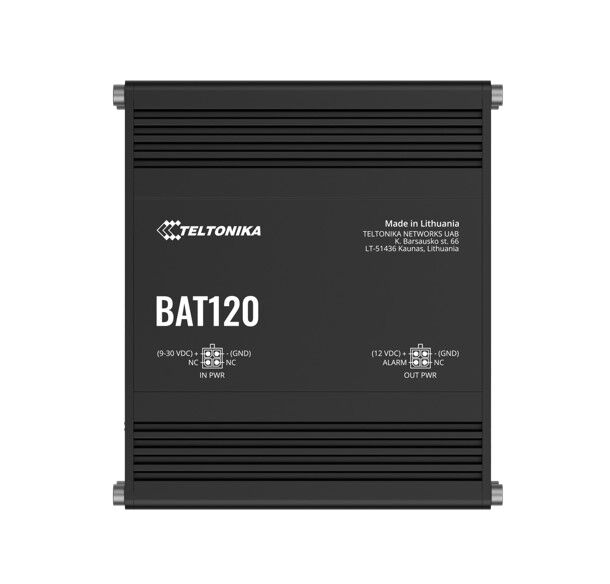

Networks. BAT120 is equipped with two 4-pin DC ports for power input
and output. The input voltage ranges from 9V to 30V and output of
12VDC when operated from the battery.
Acting as an uninterrupted power source, BAT120 provides enough
power from two 18650 Li-Io cells to keep a compatible Teltonika
Networks device working for up to 6 hours. BAT120 has reverse and
overvoltage protection for input and 3A overcurrent protection for
output as safety features.
This rugged and reliable uninterrupted power source is perfect for
applications that require constant connectivity from their Teltonika
Networks devices even when power outages or fluctuations occur.

(BAT120000300)

Power

Connector

4-pin industrial DC power socket

Input power/max charging current

Charger: max 9.5 W / 800 mA (max battery charging current) (From batch 26)

Charger: max 4 W / 300 mA (max battery charging current) (From batch 1-25)

Input voltage range

9 – 30 VDC

Input protection

Reverse polarity protection, Overvoltage protection

Output voltage in passthrough mode
