Ubiquiti Ethernet Surge Protection,Rack-mount Indoor Panel Supports Up To 10 GbE, PoE++, 20kA Surge Discharge/Port,24-port Integrated,1U Rack-mount
Model # UACC-ETH-SP-Panel-24
-
SKU: UACC-ETH-SP-Panel-24
- Pick Up Available
- Australian Warranty
- Checkout Securely

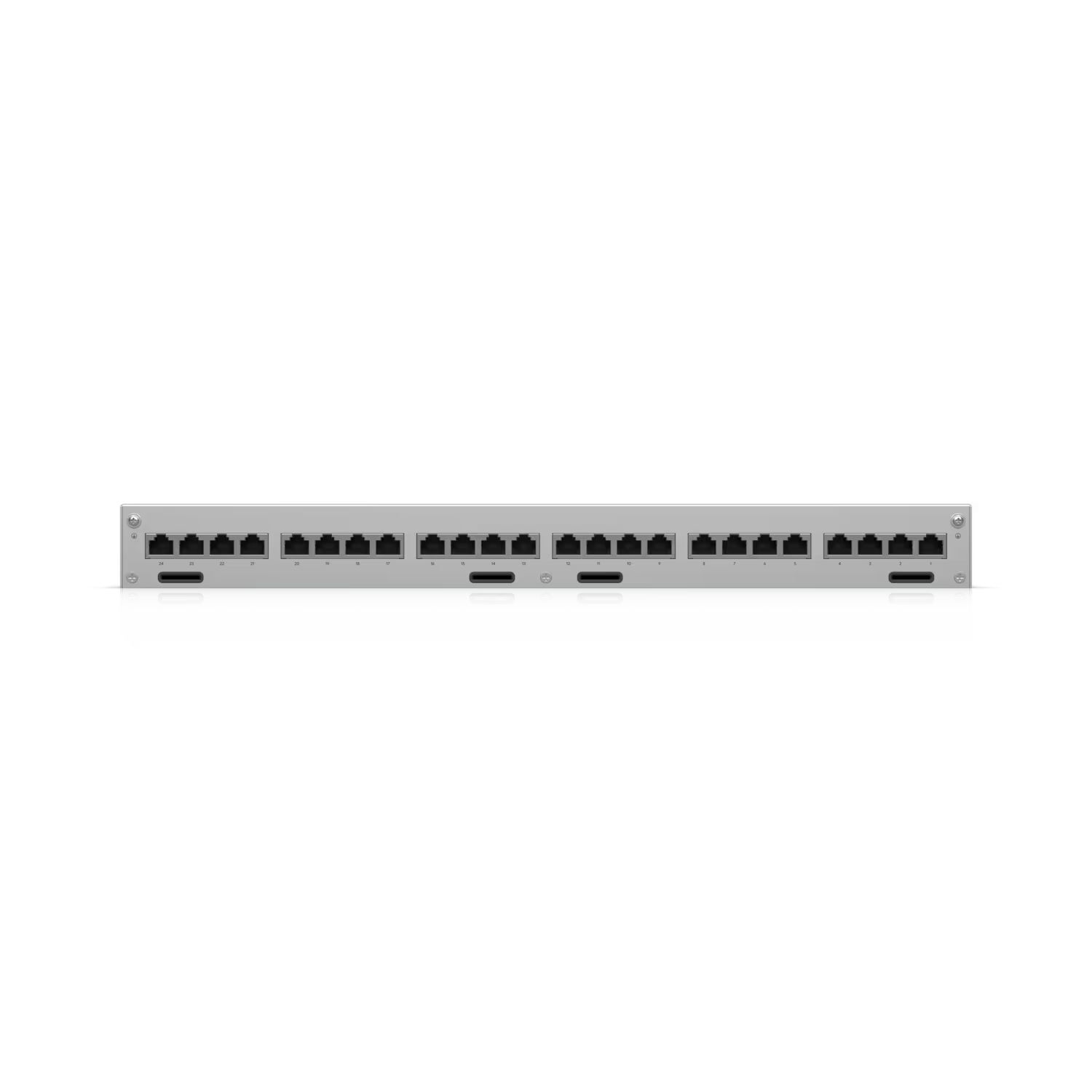

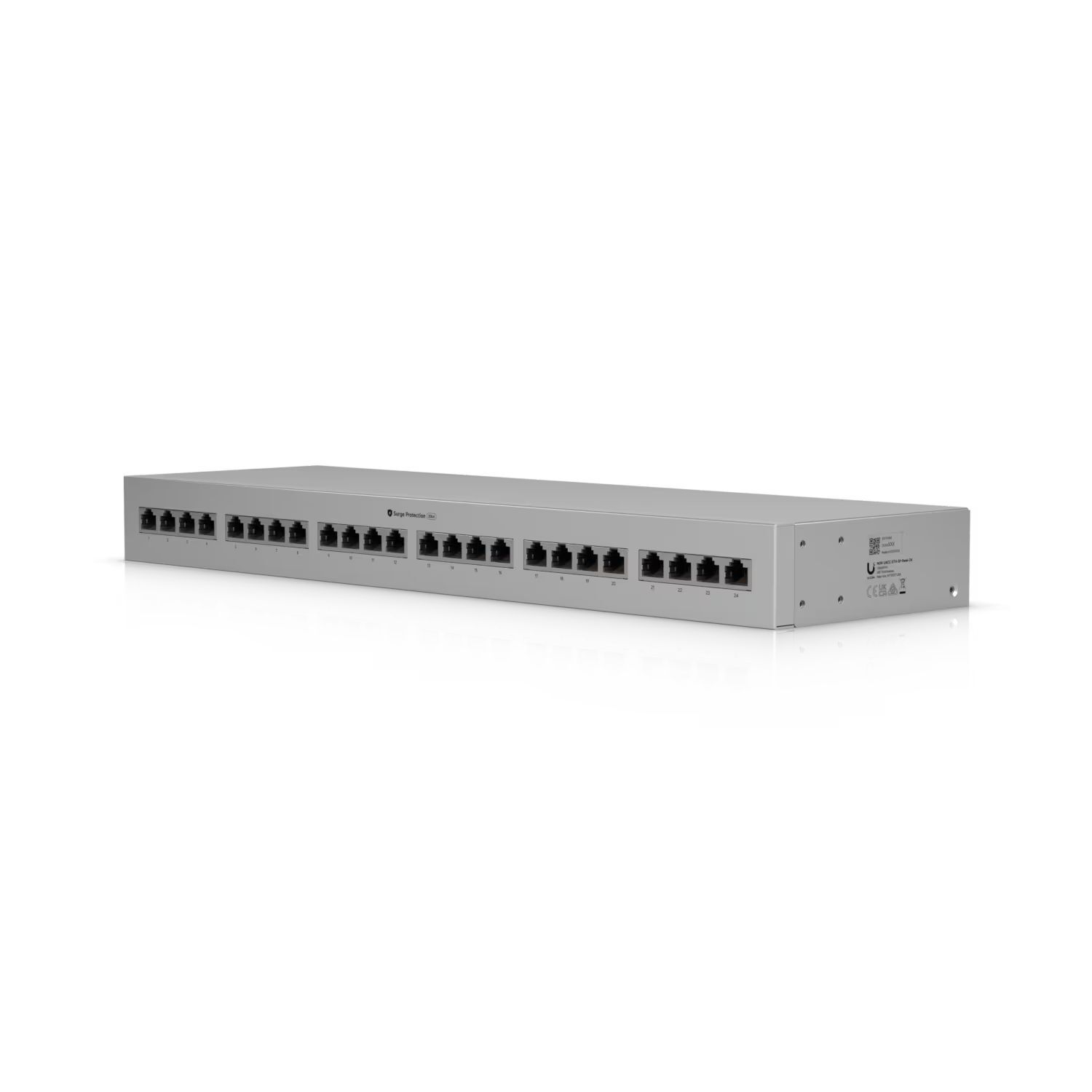

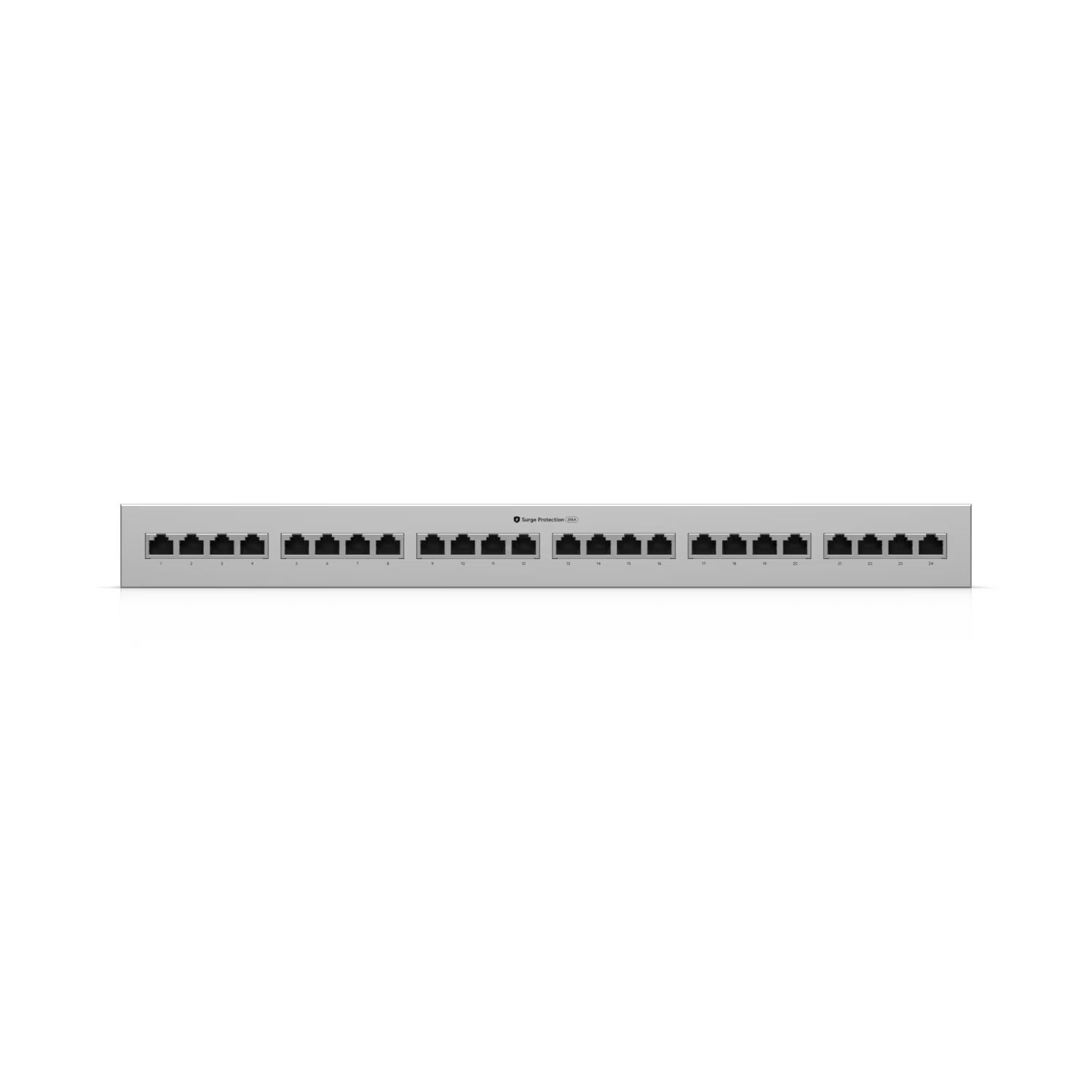

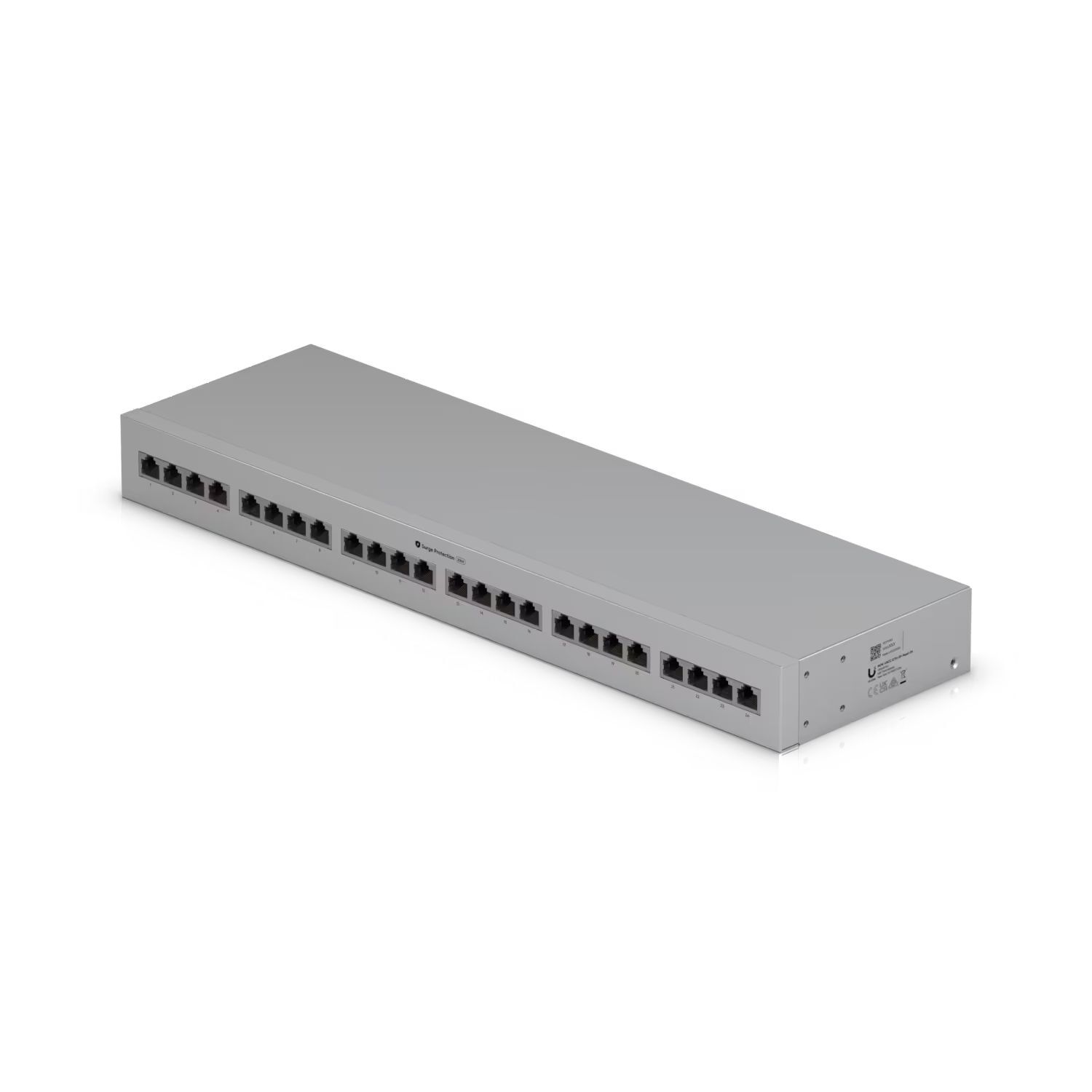

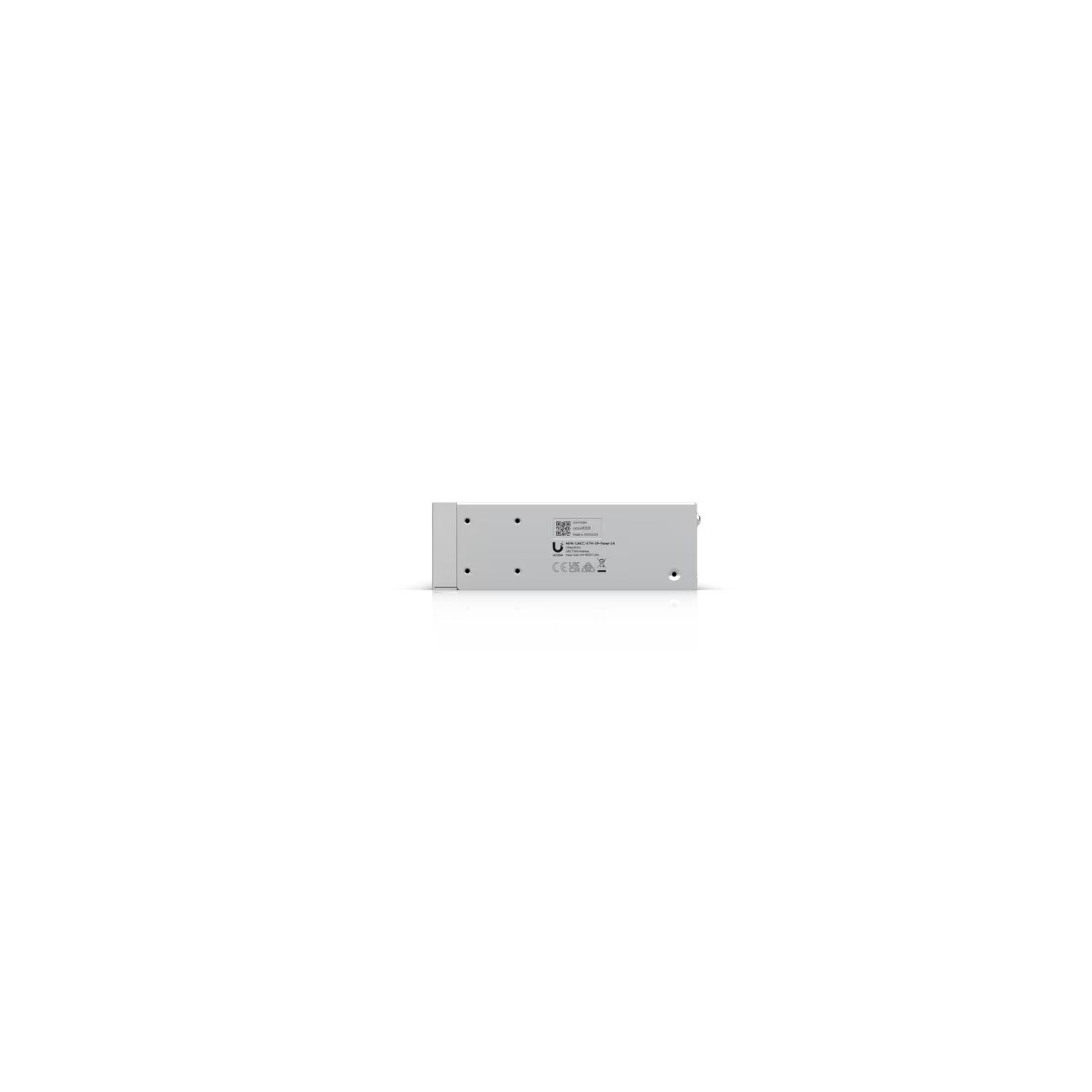

Ubiquiti UACC-ETH-SP-Panel-24 24 Port Rack-Mount Ethernet Surge Protection
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
24-port integrated
1U rack-mount design
(UACC-ETH-SP-Panel-24)
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5") |
| Weight | 74 g (2.6 oz) |
| Enclosure Material | Polycarbonate, SGCC steel |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| ESD/EMP Protection | Absorbs transient current; surge voltage response from 100V/s to 1kV/µs |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | Yes |
| Environmental | |
| Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Operating Humidity | 10 to 90% non-condensing |
| SKU | UACC-ETH-SP-Panel-24 |
| Barcode # | 810177161851 |
| Brand | UBIQUITI |
| Shipping Weight | 2.0000kg |
