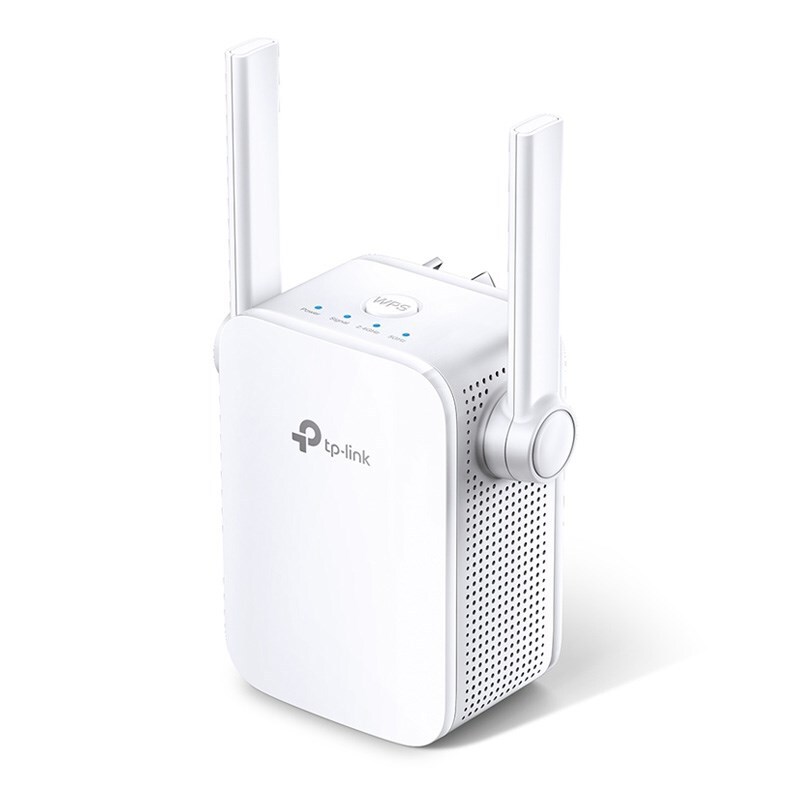

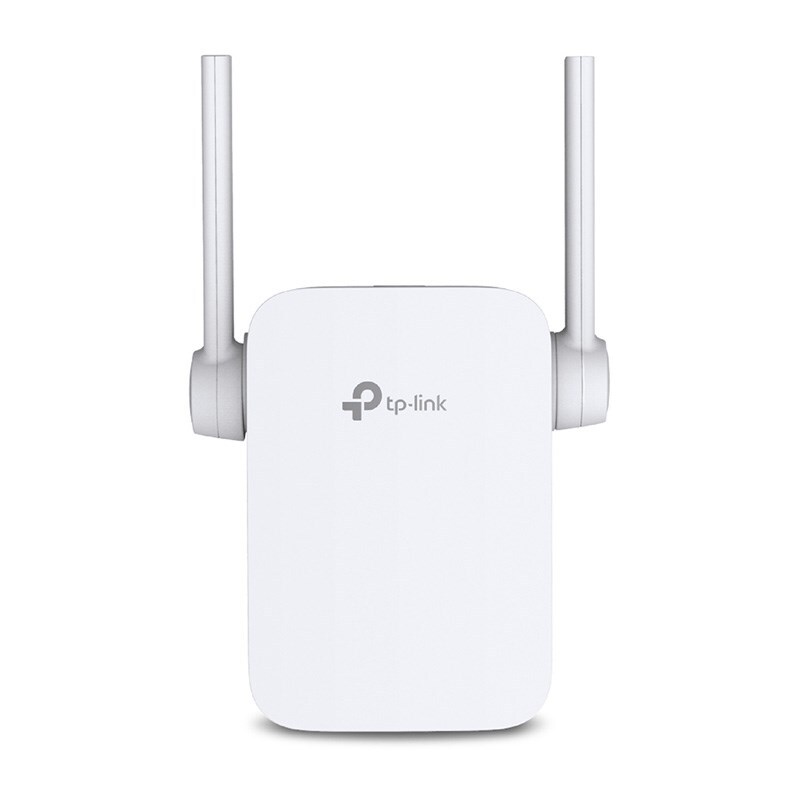

TP-Link RE205 AC750 Wi-Fi Range Extender - 1 x 10/100M Ethernet Port(RJ45) - Connectivity: 802.11a/n/ac 5GHz, 802.11b/g/n 2.4GHz - Dual External Antenna - Dual Band Speeds of up to 750Mbps - RE205 - 3 Years Limited Warranty
(RE205)
| HARDWARE FEATURES |
| Plug Type |
US |
| Standards and Protocols |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |
| Interface |
1 x 10/100M Ethernet Port (RJ45) |
| Button |
WPS Button, Reset Button |
| Power Consumption |
7.3W（max power consumption） |
| Dimensions ( W x D x H ) |
3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm) |
| Antenna |
2 x external |
| WIRELESS FEATURES |
| Frequency |
2.4GHz & 5GHz(11ac) |
| Signal Rate |
5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs |
| Reception Sensitivity |
5GHz：
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER
2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER
|
| Wireless Modes |
Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band |
| Wireless Functions |
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function |
| Wireless Security |
64/128-bit WEP
WPA-PSK / WPA2-PSK |
| Transmission Power |
<19.5dBm(2.4GHz)
<19.5dBm(5GHz)
|
| OTHERS |
| Certification |
FCC, RoHS |
| Package Contents |
AC750 Wi-Fi Range Extender RE205
Quick Installation Guide |
| Box Dimensions (W X D X H) |
6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm) |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| SKU |
RE205 |
| Barcode # |
6935364080976 |
| Brand |
TP-LINK |
| Shipping Weight |
0.2200kg |
| Shipping Width |
0.102m |
| Shipping Height |
0.089m |
| Shipping Length |
0.160m |
| Shipping Cubic |
0.001452000m3 |
Manufacturer Warranty: 3 Year Manufacturer Warranty
