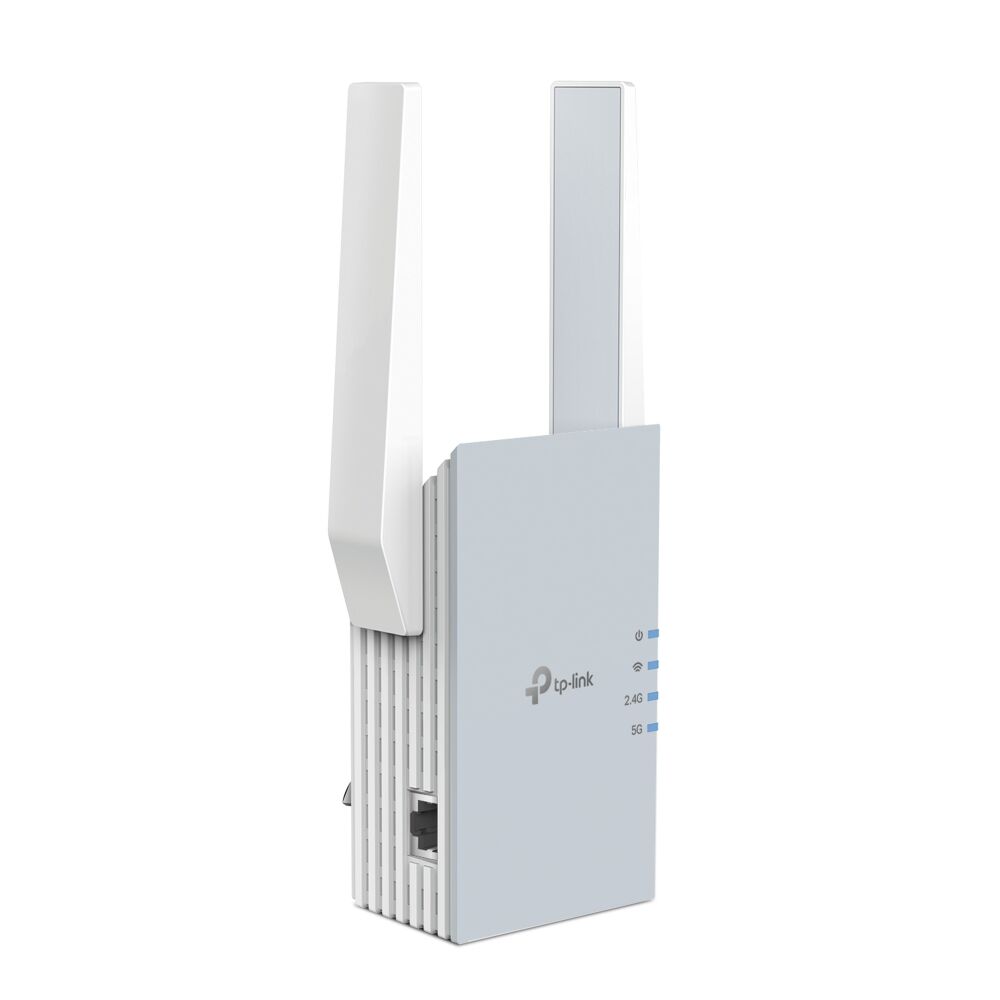

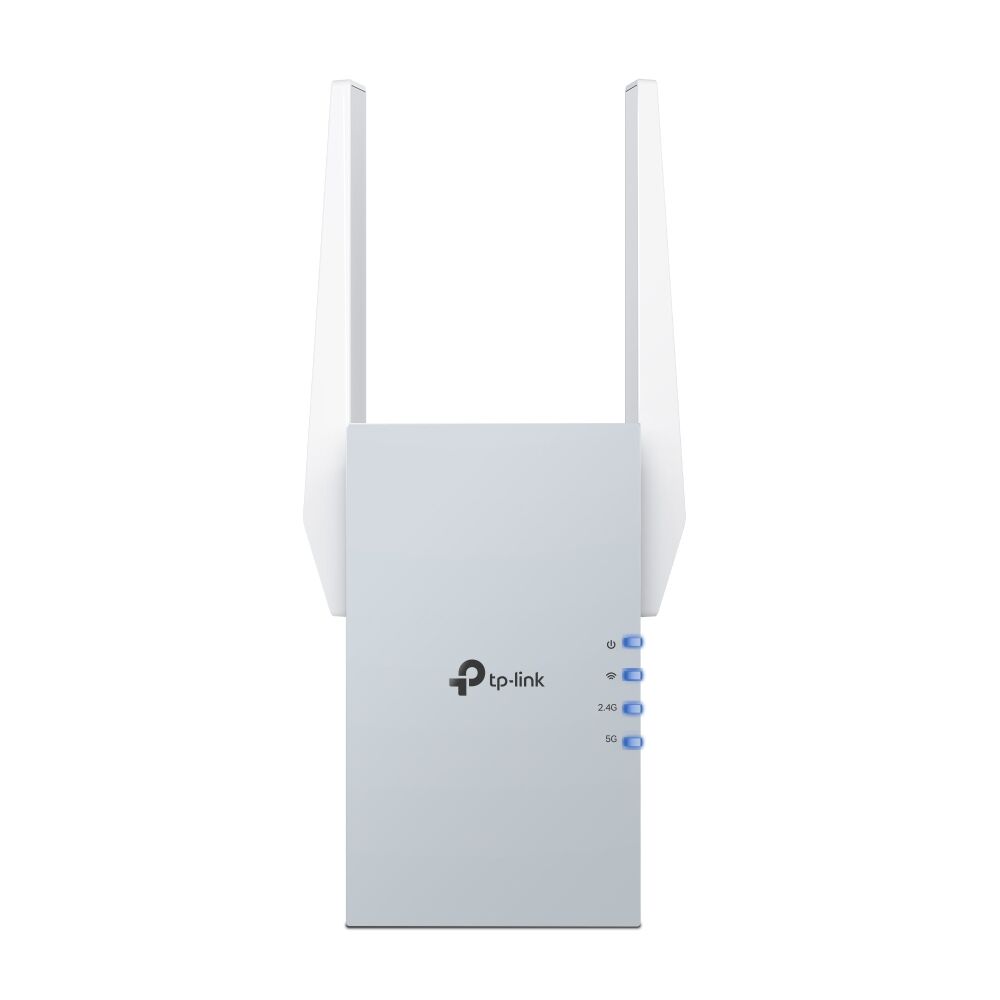

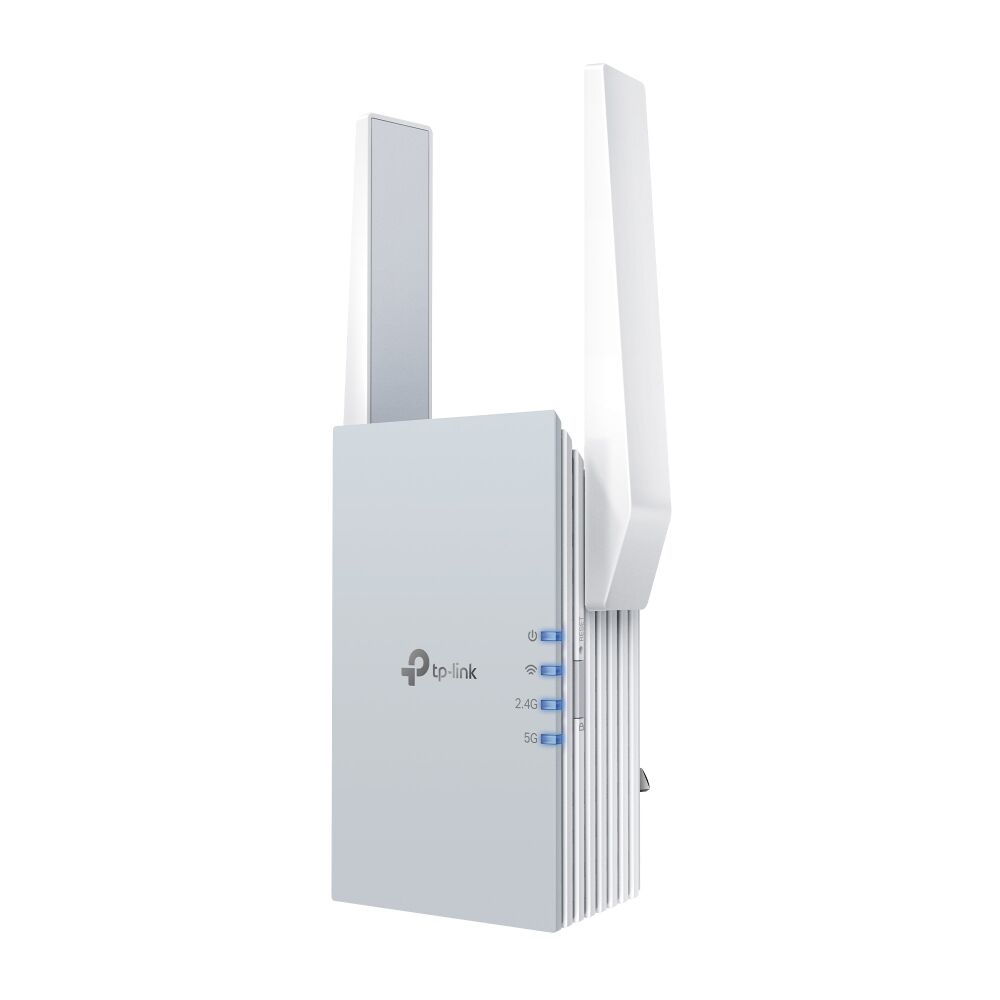

TP-Link RE515X AX1500 Wi-Fi Range Extender
Model # RE515X
-
SKU: RE515X
- Pick Up Available
- Australian Warranty
- Checkout Securely
AX1500 Wi-Fi Range Extender
- Up to 1.5 Gbps Dual Band Wi-Fi: Separates 5 GHz (1200Mbps) and 2.4 GHz (300 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.†
- Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
- EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.◇
- Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers and gaming consoles.
- AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.
- Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
- Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point.*
(RE515X)
|
HARDWARE FEATURES |
|
|---|---|
| Interface | 1 Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | 10W |
| Dimensions ( W x D x H ) | 2.9×1.8×4.9 in. (74.0×46×124.8 mm) |
| Antenna | 2 External Antennas |
|
WIRELESS FEATURES |
|
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm |
| Wireless Functions | Enable/Disable Wireless Radio DFS (the latest firmware and hardware version is required) Access Control LED Control Power Schedule Wi-Fi Coverage |
| Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK encryptions |
| Transmission Power | CE (EU): 2.4G＜20dBm, 5G＜30dBm |
| Mesh Technology | EasyMesh-Compatible |
|
OTHER |
|
|---|---|
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 20002 Protocol: UDP |
|
OTHERS |
|
|---|---|
| Certification | FCC, RoHS |
| Package Content | Wi-Fi Range Extender RE505X Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| SKU | RE515X |
| Barcode # | 1210002606066 |
| Brand | TP-LINK |
| Shipping Weight | 0.4300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.220m |
| Shipping Length | 0.130m |
