Ubiquiti UniFi Aggregation Switch Pro, 28-port 10G SFP+ & 4-port 25G SFP28 Ports, Layer 3 Switch, 760Gbps Switching Capacity,
Model # USW-Pro-Aggregation
-
SKU: USW-Pro-Aggregation
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System.

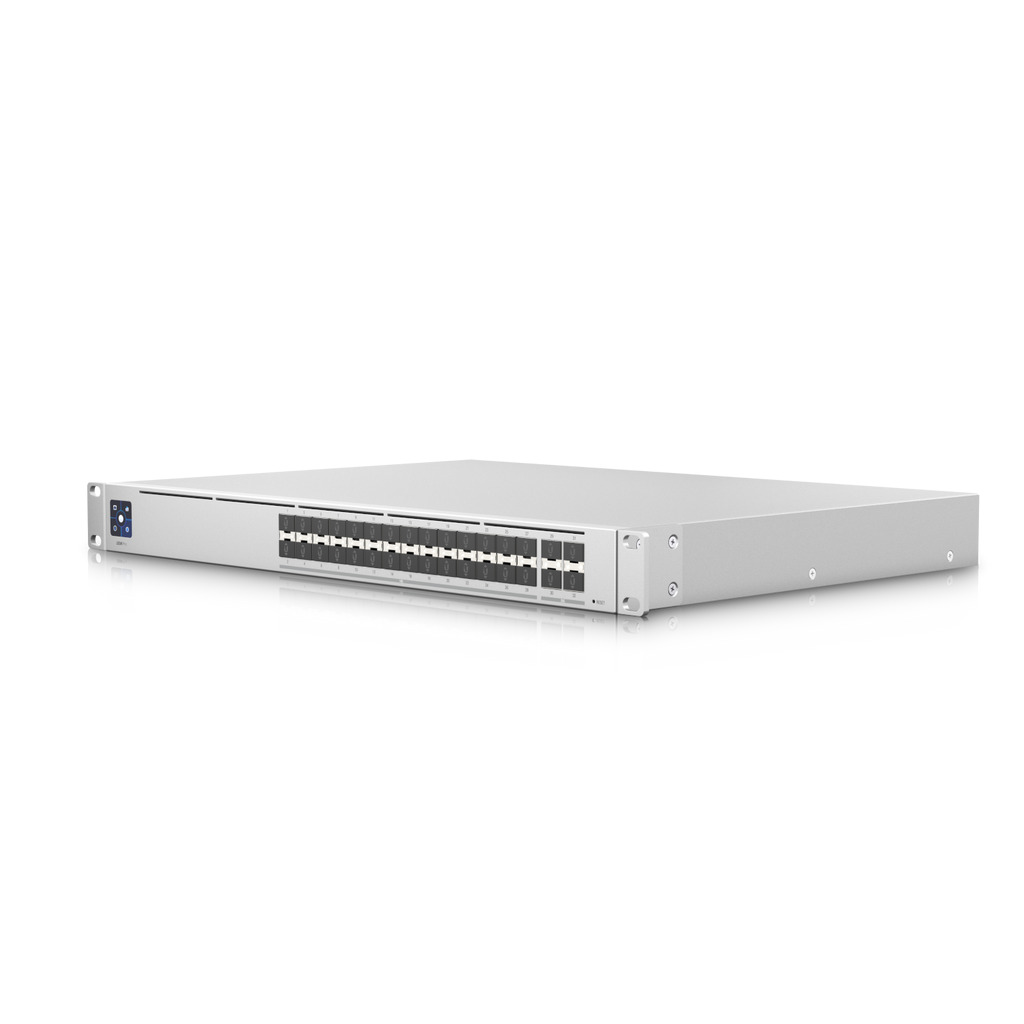

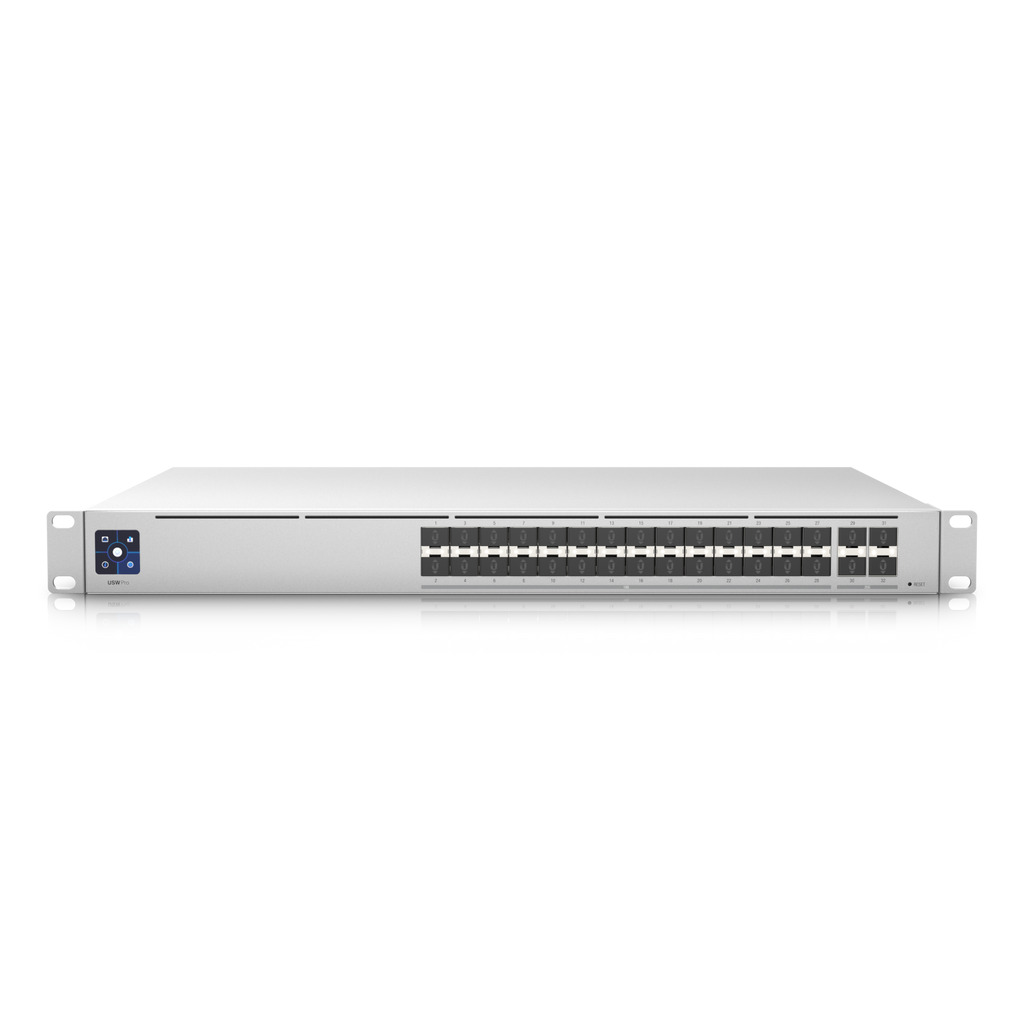

The UniFi Switch, model USW-Aggregation-Pro, is a configurable 10G fiber Layer-3 switch. It offer s 28 10G SFP+ fiber links to your devices a nd 4 25G SFP28 fiber uplink options to your enterprise network.
The Ubiquiti Unifi USW-Pro-Aggregation features a 1.3" touch LCM. The LCM provides current switch states and the necessary informa tion you need for quick diagnosis.
Managed and configured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mir ror ing , or a g g r eg a te) per port, Inter -VLAN routing ,
static routing , and DHCP server. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features in graphical user interface from anywhere.

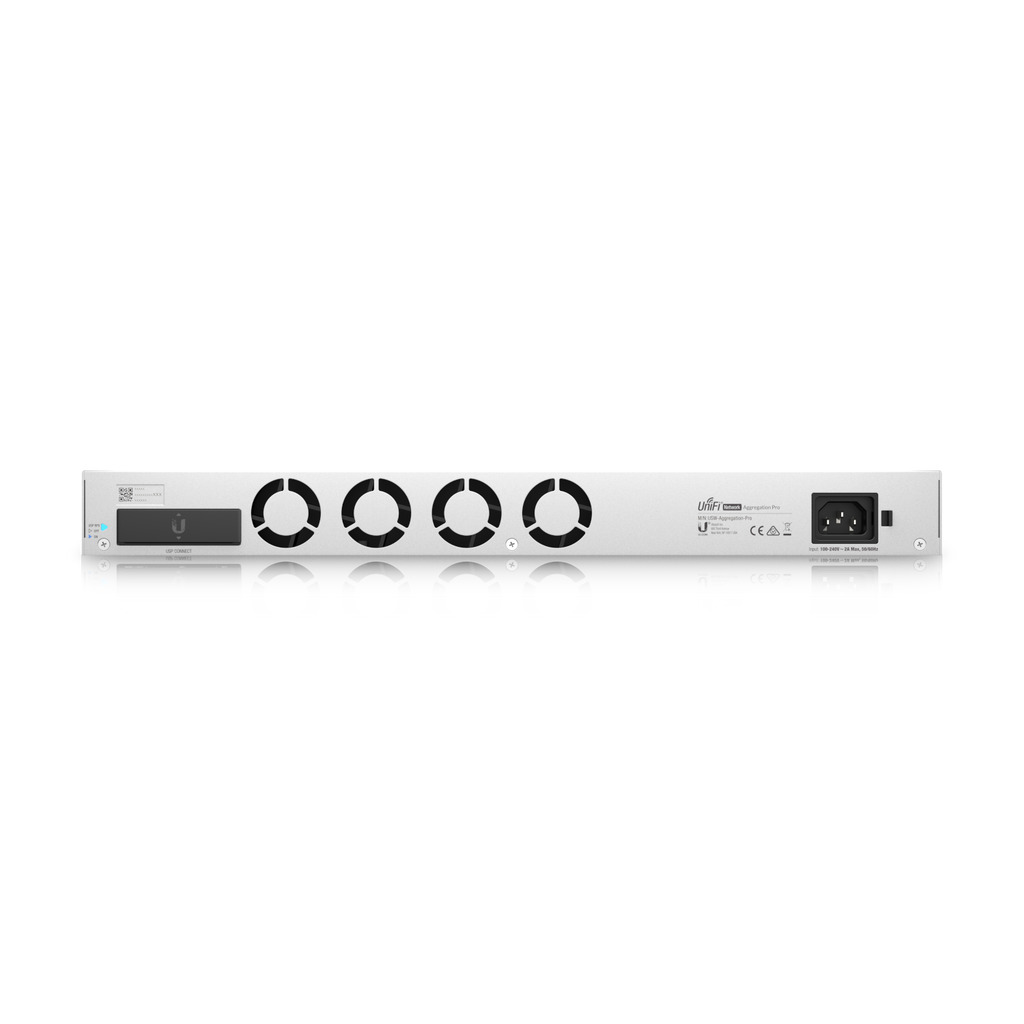

RPS DC input is a new feature on USW-Aggregation-Pro, this DC input provides redundant power when the switch is connected to USP-RPS (UniFi Smart Power RPS) via RPS DC input.
When the switch's internal PSU is off, the Switch function can keep working by backup power from the USP-RPS input port.
(USW-Pro-Aggregation)
Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Port Layout
10G SFP+
28 (10G/1G)
25G SFP28
4 (25G/10G/1G)
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Performance
Switching Capacity
760 Gbps
Total Non-Blocking Throughput
380 Gbps
Forwarding Rate
565 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
16,000
IPv4 Routes
16,000
Packet Buffer Size
4 MB
Access Lists
IPv4
128
MAC
128
Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Hardware
Max. Power Consumption
100W
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 100W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
341.2 BTU/hr
Weight
Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network
Version 6.1.25 and later
| SKU | USW-Pro-Aggregation |
| Barcode # | 810010072603 |
| Brand | UBIQUITI |
| Shipping Weight | 4.7000kg |
Manufacturer Warranty : 1 Year Manufacturer Warranty
