Ubiquiti Networks U6-Lite UniFi Lite 6 WiFi 6 Dual-Band Access Point



Compact, dual-band WiFi 6 access point with multiple mounting options.

115 m² (1,250 ft²) coverage

300+ connected devices

WiFi6 (2x2 MIMO)

Powered using PoE





Standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6

Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

*Supporting Upcoming Controller Versions

BSSID: 8 per Radio - VLAN: 802.1Q - Advanced QoS: Per-User Rate Limiting

Guest Trafc Isolation Supported

Concurrent Clients: 300+ - MIMO: 2.4GHz & 5GHz: 2 x 2 - CPU: 880 MHz MIPS 1004 KEc - Memory: 256 MB - Interface: 1x RJ45



U6-Lite

(U6-Lite)

Mechanical

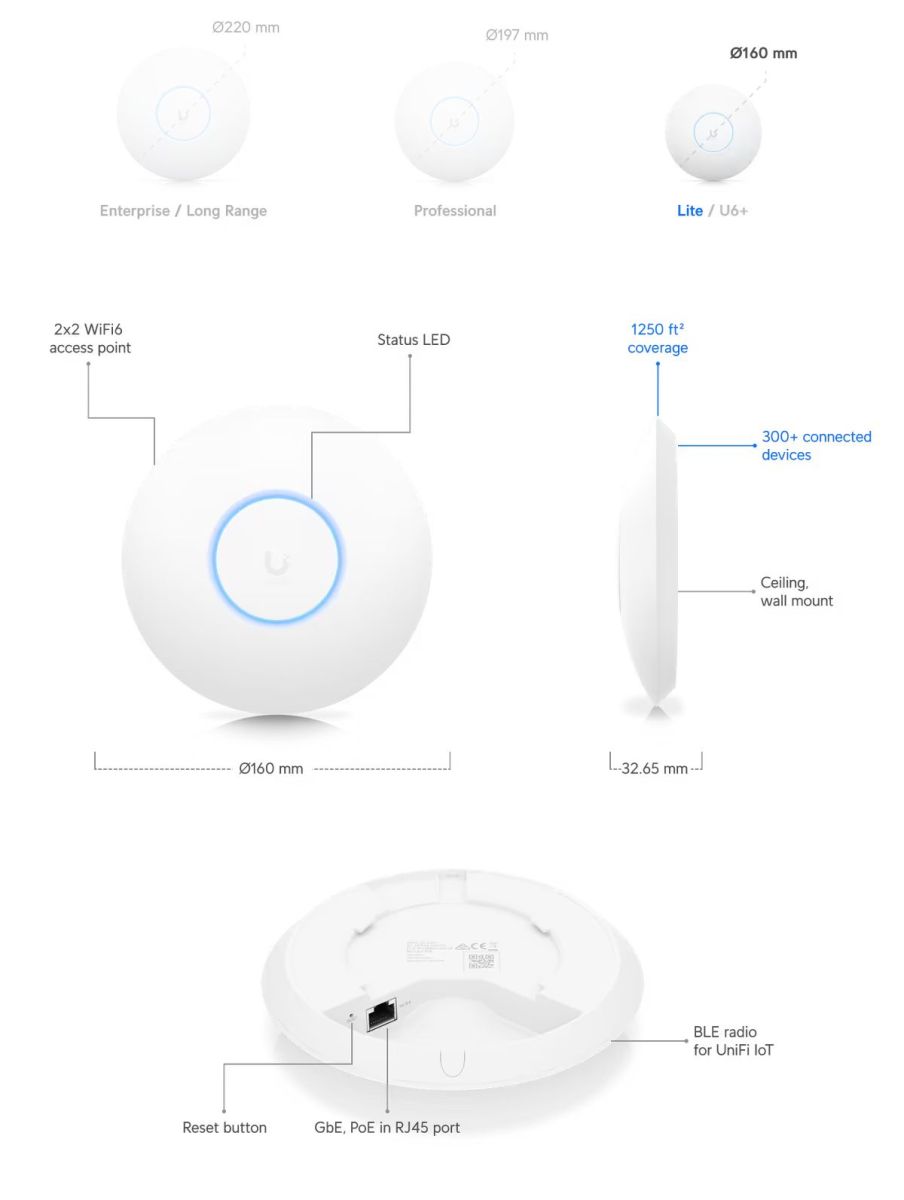

Dimensions Ø160 x 33 mm (Ø6.3 x 1.3")
Weight Without mount: 300 g (10.6 oz)
With mount: 315 g (11.1 oz)
Enclosure materials Polycarbonate, aluminum
Mount materials Polycarbonate, SGCC steel
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE, passive PoE (48V)
Power supply PoE
48V, 0.32A PoE adapter (Optional)
Supported voltage range 44—57V DC
Max. power consumption 12W
Max. TX power
2.4 GHz
5 GHz

23 dBm
23 dBm
MIMO
2.4 GHz
5 GHz

2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz

300 Mbps
1201 Mbps
Antenna gain
2.4 GHz
5 GHz

2.8 dBi
3 dBi
LEDs White/blue
Button Factory reset
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6) 7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
Application Requirements
UniFi Network Version 5.14.3 and later
SKU U6-Lite
Barcode # 810010073341
Brand Ubiquiti
Shipping Weight 0.6000kg
Shipping Width 0.180m
Shipping Height 0.060m
Shipping Length 0.180m

Manufacturer Warranty: 1 Year Limited Warranty
