View PDF BrochureSix one-touch functions support general labels, faceplates, cable flags and wraps, punch-down blocks and patch-panel identification.
Brother P-touch PT-E560BTVP 24mm Industrial Label Printer Kit USB-C Bluetooth
Model # PT-E560BTVP
-
SKU: PT-E560BTVP
Don't pay: $491.62
$395.00
SAVE $96.62 (20%)
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely

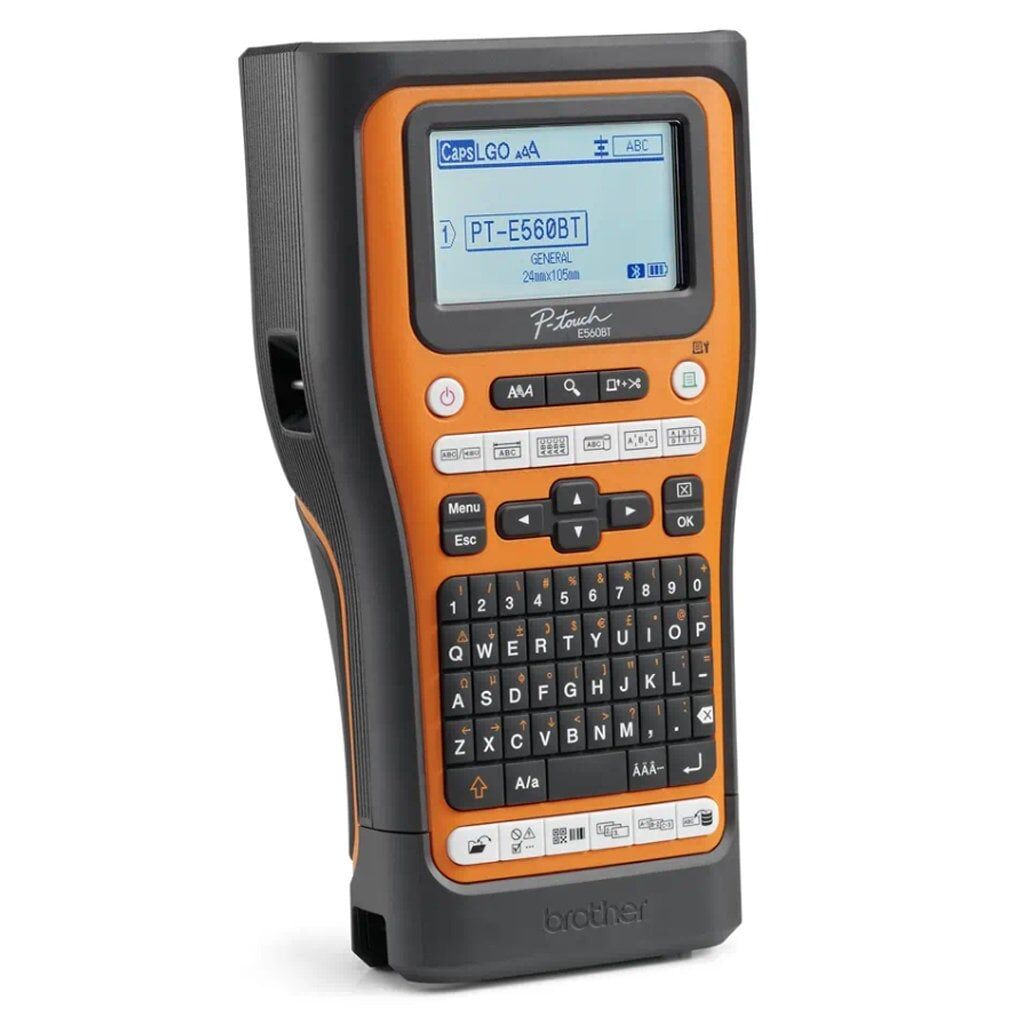

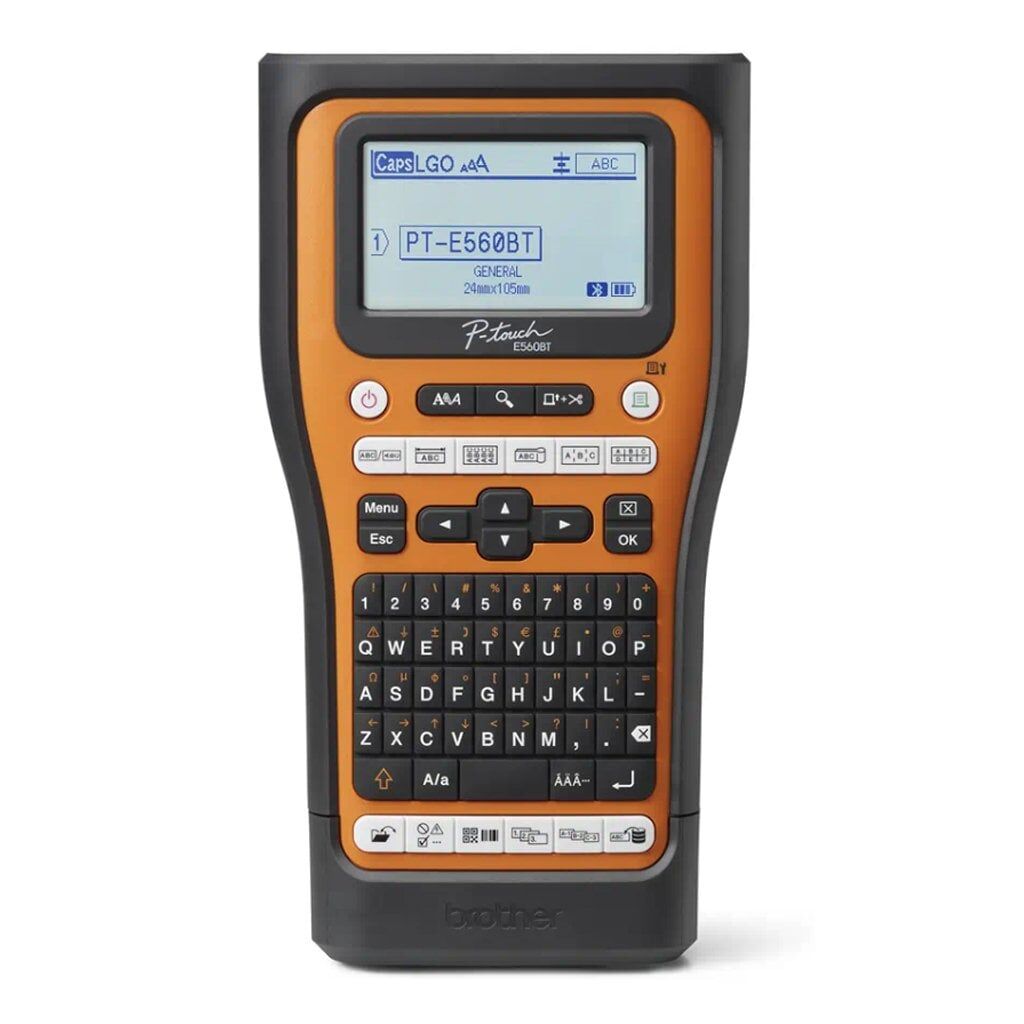

Brother P-touch PT-E560BTVP professional industrial labelling kit
The PT-E560BTVP is a rechargeable handheld label printer for electrical and network labelling, combining 24mm media support, USB-C, Bluetooth and dedicated worksite functions in a carry-case kit.
Up to 24mm labelsUSB-C and BluetoothFull and half cutterRechargeable Li-ion battery
Print from a compatible phone through Bluetooth or connect to a desktop computer through USB Type-C.
The automatic full and half cutter can produce multiple labels in one strip, with half cuts designed to make individual labels easier to peel.
Industrial media flexibility
Use Brother TZe tapes from 3.5mm to 24mm wide or compatible HSe heat-shrink tubes in 5.2mm, 9.0mm, 11.2mm and 21.0mm widths.

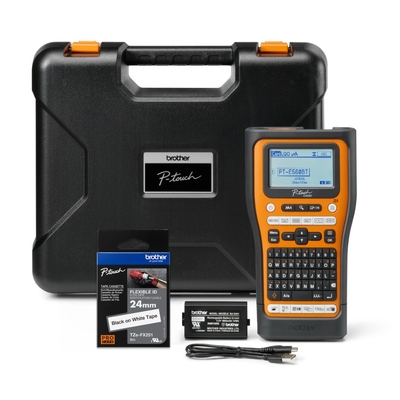

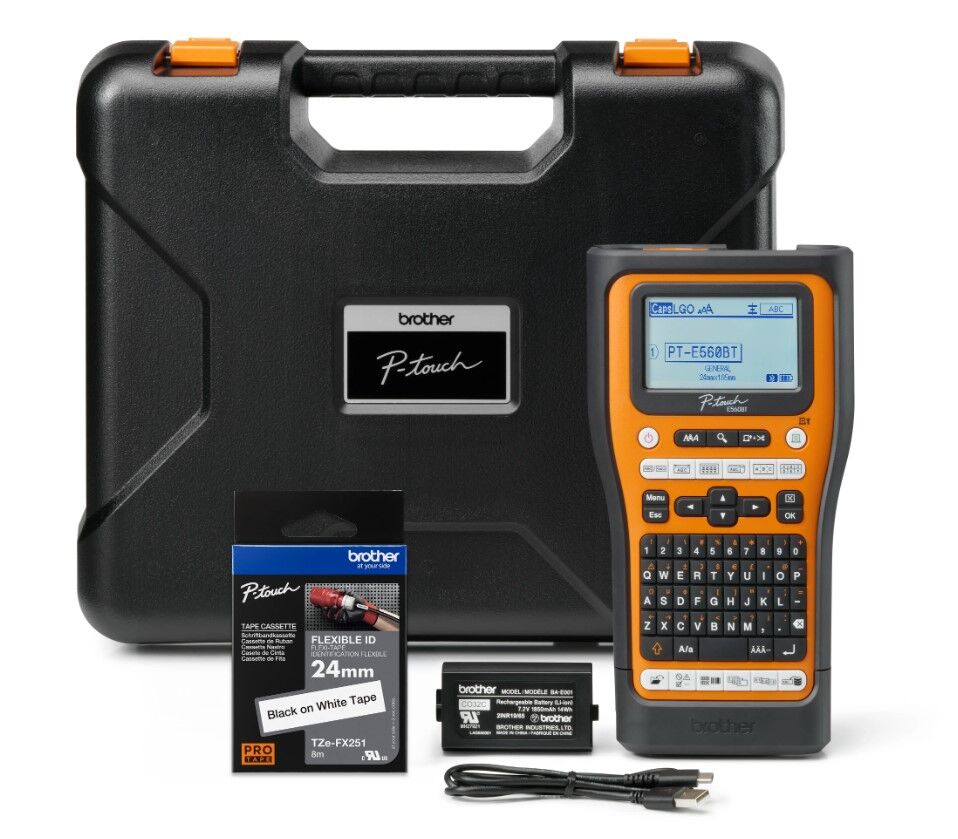

Complete portable kit
The package includes the PT-E560BT, carry case, hand strap, rechargeable Li-ion battery, USB Type A-to-C cable, 24mm Flexible ID tape, ruler card, sleeve and documentation.
Key specifications
| Printing technology | Direct thermal |
|---|---|
| Keyboard | QWERTY and numeric |
| Maximum label width | 24mm |
| Compatible TZe widths | 3.5, 6, 9, 12, 18 and 24mm |
| Compatible HSe widths | 5.2, 9.0, 11.2 and 21.0mm |
| Connectivity | USB and Bluetooth |
| Print speed | 30mm/s with USB power adaptor; 20mm/s on battery |
| Print resolution | 180dpi |
| Cutter | Automatic full and half cutter with easy-peel function |
| Barcode printing | QR codes and 2D barcodes supported |
| Symbol library | 960 symbols |
| Power | Rechargeable battery or USB Type-C AC supply |
| Battery | BA-E001 Li-ion rechargeable battery included |
Frequently asked questions
What is the widest label supported by the PT-E560BTVP?
It supports labels up to 24mm wide.
Can it print from a phone and a computer?
Yes. Bluetooth supports compatible phones, while USB provides desktop computer connectivity.
What is included with the printer?
The supplied kit includes the printer, carry case, hand strap, rechargeable Li-ion battery, USB cable, 24mm Flexible ID tape and supporting materials.
(PT-E560BTVP)
- Bluetooth wireless connectivity for cable-free printing from compatible devices
- Supports tape widths up to 24mm for versatile labelling applications
- Rechargeable Li-Ion battery for extended field use without disposable batteries
- Industrial-grade construction designed for demanding electrical and datacom environments
- Includes protective carry case for portability and workplace safety
- Comprehensive 3-year warranty providing peace of mind and support
General
- Brand
- Brother
- Printing Technology
- Direct Thermal
- Descriptive Colour
- Black, Orange
- Keyboard Layout
- Qwerty & Numeric
- Product Dimension
- 393x126x334 mm
- Product Weight
- 3.10 Kg
- Model
- PT-E560BTVP
- Warranty
- 3 Years
Compatability
- PC Connectivity
- Yes
- Operating System
- Printer: Windows 11, Windows 10 (32&64bit), macOS 12-15; Mobile: Android 5.0 or greater, iOS 12 or greater
- Interface
- USB, Bluetooth
- Software
- Windows: P-touch Editor 6, Printer Setting Tool, Driver; Mac: P-touch Editor 6
Media Handling
- Largest Print Size
- 24mm
- Refills
- TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm; HSe: 5.2mm, 9.0mm, 11.2mm, 21.0mm
Printer Performance
- Print Speed
- USB Power adapter: 30 mm/sec; Batteries: 20 mm/sec
- Print Resolution
- 180 dpi
- Barcode Printing
- Yes
- Symbol Library
- 960
- Memory
- Local File Memory: 178,200 Characters or 99 files; Transferred File Memory: 99 each for templates/databases/images/symbols
Power
- Power Supply
- Rechargable Battery or AC Supply (USB Type-C)
- Battery Included
- BA-E001 Li-ion rechargeable battery
Package Contents
- PT-E560BTVP
- 1
- USB A-C Cable (For data and power)
- 1
- Li-ion rechargeable battery
- 1
- Carry case
- 1
- Instruction Manual
- 1
- Sample Tape
- 24mm black on white Flexible ID tape (8m)
- Extra Tape
- 5 x Brother Tze-251 24mm Label tape
| SKU | PT-E560BTVP |
| Barcode # | 4977766841580 |
| Brand | Brother |
| Shipping Weight | 3.1400kg |
| Shipping Width | 0.352m |
| Shipping Height | 0.130m |
| Shipping Length | 0.390m |
