The supplied 300dpi configuration supports detailed monochrome label printing with thermal transfer media.

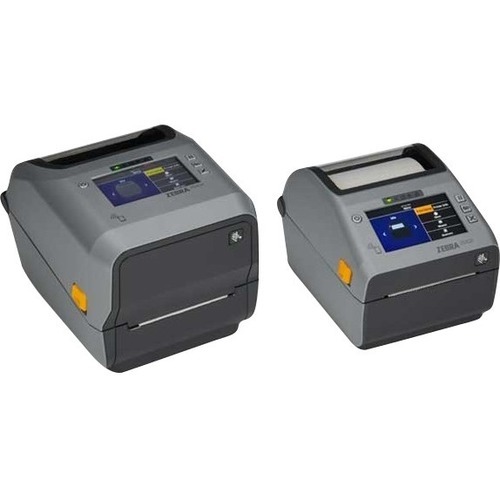

Zebra ZD621 4-inch Thermal Transfer Desktop Label Printer 300dpi USB Ethernet Serial
Model # ZD6A043-30PF00EZ
-
SKU: ZD6A043-30PF00EZ
Don't pay: $1,100.00
$935.00
SAVE $165.00 (15%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra ZD621 4-inch thermal transfer printer with 300dpi
This Zebra ZD621 combines a 4-inch thermal transfer desktop format with 300dpi output, USB, USB Host, Ethernet and serial connectivity.
4-inch formatThermal transfer300dpiUSB, Ethernet and serial
Ethernet, serial, USB 2.0 and USB Host are included for compatible desktop integrations.
Five status icons and three buttons provide clear status information and routine printer controls.
Setup through compatible mobile devices
The Android and iOS printer setup app can connect using the supplied Bluetooth Low Energy 5 function.
Media handling
OpenACCESS media loading is listed for accessible media changes, and a media dancer supports print quality.
Compatible programming
ZPL and EPL programming languages are supplied for compatible applications and label formats.
Key specifications
| Print method | Thermal transfer |
|---|---|
| Print width class | 4 inches |
| Resolution | 300dpi |
| Connectivity | Ethernet, serial, USB 2.0 and USB Host |
| Setup connection | BLE 5 for Android and iOS printer setup app |
| Programming languages | ZPL and EPL |
| User interface | Five status icons and three buttons |
| Media loading | OpenACCESS |
| Media control | Media dancer |
| Clock | Real Time Clock |
| Construction | Dual-wall frame |
| Energy qualification | ENERGY STAR certified |
Frequently asked questions
What resolution does this ZD621 provide?
This supplied configuration is listed at 300dpi.
Which print method is used?
It is identified as a thermal transfer desktop label printer.
Which wired connections are included?
Ethernet, serial, USB 2.0 and USB Host are listed.
(ZD6A043-30PF00EZ)
Memory
| Standard Memory | 256 MB |
Warranty
| Limited Warranty | 2 Year |
Display & Graphics
| Display Screen | Yes |
| Screen Size | 10.9 cm (4.3") |
| Display Screen Type | LCD |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
Network & Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | AC Supply |
Environmental Conditions
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| Operating Temperature | 4.4°C - 40.6°C |
| Operating Relative Humidity | 10% - 90% |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | AZTEC |
| Codablock | |
| EAN With 2 or 5 Digit Extension | |
| MSI | |
| QR Code | |
| Code 93 | |
| Standard 2 of 5 | |
| Codabar | |
| ISBT-128 | |
| UPC-E | |
| Code 49 | |
| Code 11 | |
| LOGMARS | |
| Code 128 | |
| Data Matrix | |
| EAN-13 | |
| EAN-8 | |
| Maxi Code | |
| Plessey | |
| Industrial 2 of 5 | |
| Code 39 | |
| Micro PDF | |
| POSTNET | |
| PDF417 | |
| Planet Code | |
| UPC-A | |
| Interleaved 2 of 5 | |
| UPC 2 or 5 Digit Extension | |
| Maximum Print Width | 108 mm (4.25") |
| Recommended Use | Label/Receipt Print |
| Connectivity Technology | Wired |
| Features | Status Indicator |
| Dual Wall Frame | |
| Maximum Mono Print Speed | 152 mm/s |
| Mobile Device Printing | Yes |
| Print Color Capability | Monochrome |
| Optional Connectivity | Wireless LAN |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 300 |
Physical Characteristics
| Weight (Approximate) | 2.49 kg |
| Height | 190.5 mm |
| Width | 203.2 mm |
| Depth | 266.7 mm |
Fonts & Emulation
| Language Emulation | ZBI |
| ZPL II | |
| ZPL | |
| EPL2 | |
| EZPL | |
| XML | |
| EPL |
General Information
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | ZD6A043-30PF00EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD621 |
| Product Name | ZD621 Thermal Transfer Printer |
| Brand Name | Zebra |
Miscellaneous
| Package Contents |
|
| Platform Supported | PC |
| iOS | |
| Android | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Cables Included | USB |
| AC | |
| Energy Star | Yes |
| Power Cable Localization | JP |
| AUS | |
| UK | |
| EU | |
| Power Adapter Included | Yes |
Media Types & Handling
| Media Thickness | 4826 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Black Mark |
| Wristband | |
| Roll Fed | |
| Reflective | |
| Label | |
| Continuous Receipt | |
| Die-cut Label | |
| Gap | |
| Fanfold | |
| Continuous Roll | |
| Receipt | |
| Tag | |
| Tag Stock | |
| Media Sensor | Multi-position Transmissive/Gap Sensor |
| Full Width Sensor | |
| Moveable Reflective/Black Mark Sensor | |
| Maximum Label Width | 118 mm |
| Maximum Label Length | 991 mm |
| SKU | ZD6A043-30PF00EZ |
| Brand | ZEBRA |
| Shipping Weight | 4.7800kg |
| Shipping Width | 0.025m |
| Shipping Height | 0.036m |
| Shipping Length | 0.028m |
