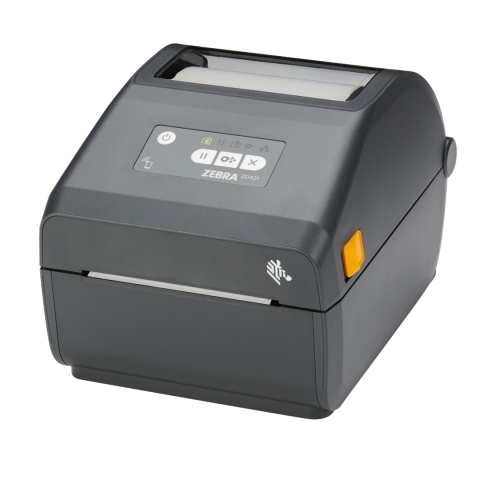

Zebra ZD421 4-inch direct thermal printer with modular slot
The Zebra ZD421 is a 4-inch direct thermal desktop label printer with 203dpi output, USB connectivity, a modular connectivity slot and an intuitive operating design.
4-inch direct thermal203dpiUSB connectivityModular connectivity slot
Modular desktop connectionThe supplied configuration combines USB with a modular connectivity slot for an expandable desktop format.
Straightforward operationThe intuitive interface and updated media-handling design support routine setup, use and maintenance.
Printer-language compatibilityEPL and ZPL support allows compatible label formats and applications to continue being used.
Simplified media changes
New media guides and the supplied media-handling design are intended to make daily media replacement easier.
Architecture for future options
The ZD421 supports field-upgradeable media-handling and connectivity options as requirements change.
Direct thermal output
The supplied description identifies this configuration for monochrome label and receipt printing without thermal-transfer ribbon use.
Key specifications
| Print method | Direct thermal |
|---|
| Print width class | 4 inches |
|---|
| Resolution | 203dpi |
|---|
| Connectivity | USB and modular connectivity slot |
|---|
| Programming languages | EPL and ZPL |
|---|
| User interface | Advanced intuitive interface |
|---|
| Media handling | Updated media guides and media-handling design |
|---|
| Expansion | Field-upgradeable options |
|---|
Frequently asked questions
What print method does this ZD421 use?
This supplied configuration uses direct thermal printing.
Which connectivity format is included?
USB and a modular connectivity slot are listed.
Which printer languages are supported?
The supplied description identifies EPL and ZPL support.
(ZD4A042-D0PM00EZ)
| Memory |
| Standard Memory |
256 MB |
| Network & Communication |
| Bluetooth |
Yes |
| Interfaces/Ports |
| USB |
Yes |
| USB Host |
Yes |
| Power Description |
| Input Voltage |
120 V AC |
| |
230 V AC |
| Power Source |
AC Supply |
| Physical Characteristics |
| Weight (Approximate) |
1.35 kg |
| Form Factor |
Portable |
| Height |
150.6 mm |
| Width |
177.3 mm |
| Depth |
220.7 mm |
| Fonts & Emulation |
| Language Emulation |
ZPL II |
| |
EPL |
| |
ZPL |
| |
XML |
| |
ZBI |
| |
EPL2 |
| General Information |
| Product Type |
Direct Thermal Printer |
| Manufacturer Part Number |
ZD4A042-D0PM00EZ |
| Manufacturer Website Address |
http://www.zebra.com/ap/en.html |
| Manufacturer |
Zebra Technologies Corporation |
| Product Model |
ZD421 |
| Product Name |
ZD421 Direct Thermal Printer |
| Brand Name |
Zebra |
| Miscellaneous |
| Platform Supported |
PC |
| |
iOS |
| |
Android |
| Environmentally Friendly |
Yes |
| Cables Included |
USB |
| |
AC |
| Energy Star |
Yes |
| Power Cable Localization |
AUS |
| |
EU |
| |
JP |
| |
UK |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Media Types & Handling |
| Media Thickness |
4826 µm |
| Maximum Roll Diameter |
127 mm |
| Media Type |
Black Mark |
| |
Label |
|
| |
Wristband |
| |
Tag Stock |
| |
Roll Fed |
| |
Reflective |
| |
Receipt |
| |
Continuous Label |
| |
Continuous Receipt |
| |
Die-cut Label |
| |
Fanfold |
| |
Gap |
| Media Sensor |
Multi-position Transmissive/Gap Sensor |
| |
Moveable Reflective/Black Mark Sensor |
| |
Full Width Sensor |
| Maximum Label Width |
108 mm |
| Maximum Label Length |
991 mm |
| Technical Information |
| Application/Usage |
Desktop |
| Barcode Symbology Supported |
UPC-A |
| |
UPC-E |
| |
UPC 2 or 5 Digit Extension |
| |
Standard 2 of 5 |
| |
QR Code |
| |
POSTNET |
| |
Plessey |
| |
Planet Code |
| |
PDF417 |
| |
MSI |
| |
Micro PDF |
| |
ISBT-128 |
| |
LOGMARS |
| |
Maxi Code |
| |
Interleaved 2 of 5 |
| |
Industrial 2 of 5 |
| |
EAN-8 |
| |
EAN-13 |
| |
Data Matrix |
| |
Code 93 |
| |
Code 49 |
| |
Code 39 |
| |
Code 128 |
| |
Code 11 |
| |
Codablock |
| |
Codabar |
| |
AZTEC |
| Maximum Print Width |
104 mm (4.09") |
| Recommended Use |
Label/Receipt Print |
| Features |
Status Indicator |
| |
Dual Wall Frame |
| Print Technology |
Direct Thermal |
| Mobile Device Printing |
Yes |
| Print Color Capability |
Monochrome |
| Optional Connectivity |
Serial (RS-232) |
| |
Wireless LAN |
| |
Ethernet |
| |
Near Field Communication (NFC) |
| Real Time Clock |
Yes |
| Maximum Print Resolution (dpi) |
203 |
|
| SKU |
ZD4A042-D0PM00EZ |
| Brand |
ZEBRA |
| Shipping Weight |
3.4000kg |
| Shipping Width |
0.230m |
| Shipping Height |
0.220m |
| Shipping Length |
0.330m |
