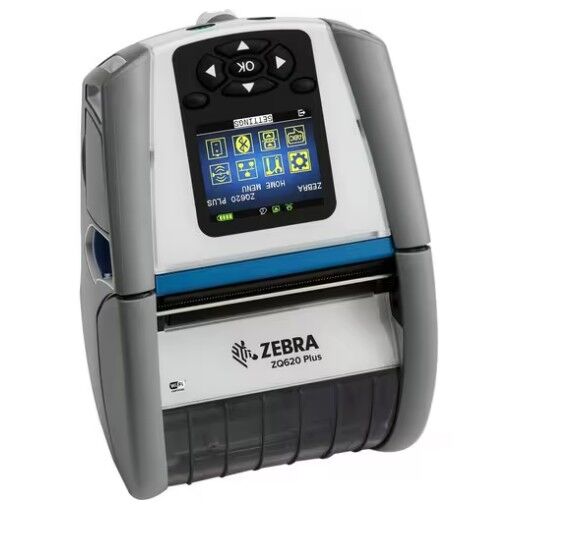

Zebra ZQ620 Plus Healthcare mobile label and receipt printer
The Zebra ZQ620 Plus Healthcare is a compact 3-inch mobile direct thermal label and receipt printer with 203dpi output, 802.11ac Wi-Fi, Bluetooth Classic and Bluetooth Low Energy.
Healthcare configuration3-inch direct thermal203dpiWi-Fi and Bluetooth
Point-of-care mobilityThe supplied healthcare configuration is designed for mobile label and receipt printing at the point of care, including specimen-labelling workflows.
Connected while moving802.11ac Wi-Fi, Bluetooth Classic, Bluetooth Low Energy and 802.11r fast roaming are listed for supported mobile connections.
Clear colour status displayThe large colour display changes colour when the printer is paused or needs attention, helping staff identify its status quickly.
Built for healthcare routines
The compact one-piece design uses over-moulding, a tempered-glass display and high-grade resin, and is designed to withstand constant disinfecting.
Ready when a print job arrives
Instant wake-up works over Wi-Fi and Bluetooth, allowing the printer to enter sleep mode while idle and wake when a user sends a job.
Mobile operating-system support
The supplied information lists Apple iOS, Android and Windows Mobile connectivity, with CPCL, EPL and ZPL programming languages.
Key specifications
| Print method | Direct thermal |
|---|
| Output | Labels and receipts; barcodes, text and graphics |
|---|
| Print width class | 3 inches |
|---|
| Resolution | 203dpi |
|---|
| Wireless networking | 802.11ac Wi-Fi with 802.11r fast roaming |
|---|
| Bluetooth | Bluetooth Classic and Bluetooth Low Energy |
|---|
| Programming languages | CPCL, EPL and ZPL |
|---|
| Flash memory | 512MB Flash; 128MB available for user storage |
|---|
| User interface | Large colour display with colour-changing status indication |
|---|
| Media sensing | Fixed-centre black-mark and gap sensors |
|---|
| Media handling | Peel-and-present mode, label-present sensor and tear bar |
|---|
| Included carrying feature | Belt clip |
|---|
| Charging | Built-in battery charger |
|---|
Frequently asked questions
What is this ZQ620 Plus configuration designed for?
It is the supplied Healthcare configuration for mobile label and receipt printing at the point of care.
Which wireless connections are listed?
The supplied information lists 802.11ac Wi-Fi, Bluetooth Classic and Bluetooth Low Energy.
Can it wake when a print job is sent?
Yes. Instant wake-up is listed for both Wi-Fi and Bluetooth connections.
(ZQ62-HAWAA04-00)
| Battery Information |
| Battery Capacity |
3250 mAh |
| Display & Graphics |
| Display Screen |
Yes |
| Memory |
| Standard Memory |
256 MB |
| Power Description |
| Power Source |
Battery |
| Software |
| Operating System Supported |
Link-OS |
| Fonts & Emulation |
| Language Emulation |
CPCL |
| |
EPL |
| |
ZPL |
| |
ZBI 2.0 |
| Miscellaneous |
| Platform Supported |
Android |
| |
iOS |
| |
PC |
| Certifications & Standards |
Emissions:
- FCC Part 15
- Subpart B
- EN55022 Class-B
- EN60950
- EN55024
- VCCI class B
Susceptibility:
- EN55024
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
Safety:
|
| Network & Communication |
| Bluetooth |
Yes |
| Wireless LAN |
Yes |
| Wireless LAN Standard |
IEEE 802.11ac |
| Near Field Communication (NFC) |
Yes |
| Physical Characteristics |
| Weight (Approximate) |
730 g |
| Height |
77 mm |
| Width |
117.9 mm |
| Depth |
173.7 mm |
| General Information |
| Product Type |
Direct Thermal Printer |
| Manufacturer Part Number |
ZQ62-HAWAA04-00 |
| Manufacturer Website Address |
http://www.zebra.com/ap/en.html |
| Manufacturer |
Zebra Technologies Corporation |
| Product Model |
ZQ620 Plus-HC |
| Product Name |
ZQ620 Plus-HC Direct Thermal Printer |
| Product Series |
ZQ600 |
| Brand Name |
Zebra |
| Media Types & Handling |
| Media Thickness |
165.1 µm |
| Maximum Roll Diameter |
66.04 mm |
| Media Type |
Tag |
| |
Receipt |
|
| |
Linered Media |
| |
Label |
| |
Gap |
| |
Die-cut Label |
| |
Black Mark |
| |
Black Bar |
| Media Sensor |
Gap Sensor |
| |
Black Mark Sensor |
| Maximum Label Width |
79.38 mm |
| Maximum Label Length |
812.80 mm |
| Technical Information |
| Application/Usage |
Mobile |
| |
Desktop |
| |
Industrial |
| Barcode Symbology Supported |
TLC 39 |
| |
UCC/EAN 128 |
| |
UPC E with 2 and 5 add on |
| |
Code 93 |
| |
QR Code |
| |
POSTNET |
| |
PDF417 |
| |
MSI PLESSEY |
| |
Micro PDF-417 |
| |
Maxi Code |
| |
Interleaved 2 of 5 |
| |
GS1 DataBar |
| |
FIM |
| |
EAN-8 |
| |
EAN-13 |
| |
Data Matrix |
| |
UPC-A |
| |
Code 39 |
| |
Code 128 |
| |
Codabar (NW-7) |
| |
AZTEC |
| |
2 and 5 Digits Add-on |
| Maximum Print Width |
72 mm (2.83") |
| Recommended Use |
Label/Receipt Print |
| Features |
Belt Clip |
| |
Water Resistant |
| |
Shoulder Strap |
| |
Dust Resistant |
| Print Technology |
Direct Thermal |
| Mobile Device Printing |
Yes |
| Print Color Capability |
Monochrome |
| Maximum Print Length |
813 mm |
| Character Sets |
Universal Font Scaling Technology (UFST) |
| |
Agfa Monotype |
| Optional Connectivity |
Ethernet |
| |
Serial (RS-232) |
| |
USB |
| Ingress Protection (IP) Rating |
IP54 |
| Maximum Print Resolution (dpi) |
203 |
|
| SKU |
ZQ62-HAWAA04-00 |
| Brand |
Zebra |
| Shipping Weight |
0.8800kg |
| Shipping Width |
0.009m |
| Shipping Height |
0.021m |
| Shipping Length |
0.013m |
