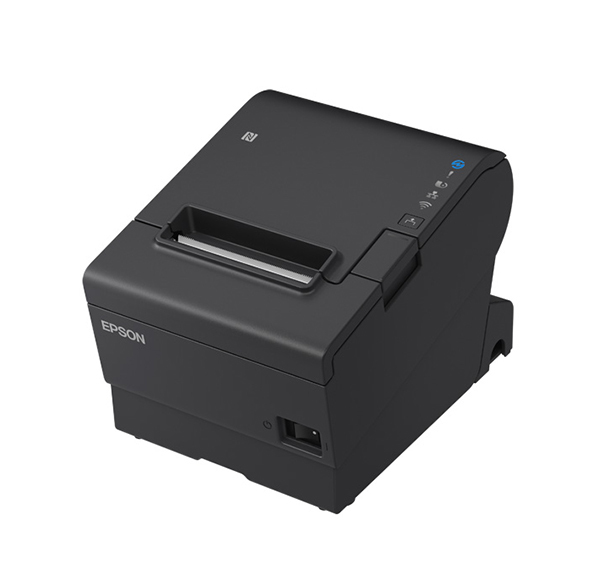

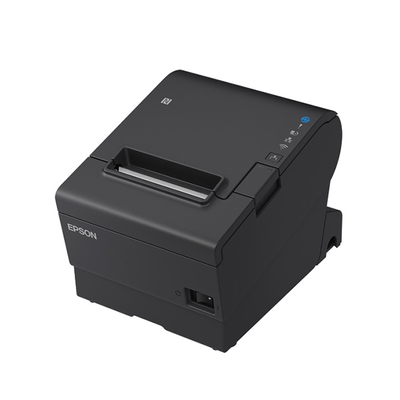

Epson TM-T88VII-612 Thermal Desktop Receipt Printer ( USB, Serial, Ethernet ) - AC cable required



C31CJ57612

Epson TM-T88VII -612 Desktop Direct Thermal Printer - Monochrome - Receipt Print - Ethernet - USB - USB Host - Serial - With Cutter - Black - 500 mm/s Mono - 180 dpi - 80 mm Label Width - ESC/POS, ePOS Emulation - For PC, Android, iOS, Mac, SPARC

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.

These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.

The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.

Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.

KEY FEATURES & BENEFITS

  • Ultra-fast transaction times - industry-leading print speeds up to 500 mm/sec1 and high-speed auto cutter
  • Reliability you can count on - 4-year warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life
  • Connect to multiple devices simultaneously - using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
  • Multi-interface support - built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
  • Secure wireless connection - supports the latest Wi-Fi® security standard (WPA3)
  • Online ordering ready - Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
  • POS peripheral support - supports POS peripherals including barcode scanners, customer displays, and more
  • Easy setup and configuration - streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
  • Easy to understand - status LEDs and network diagnostic sheet improve on-site network troubleshooting
  • Backwards compatible - fully compatible with the existing T88V and T88VI software and same footprint
  • Advanced paper-saving functions - top-margin and character-height reduction features help reduce paper usage by up to 49 percent

Features

  • A smart and inexpensive solution to print temporary documents
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Ideal for point-of-sale transactions for quick receipt printing
  • Save time and money for your business by using one printer for all your employees
PRINTER
MODEL NAME TM-T88VII
PRINTING TECHNOLOGY Thermal line printing
PRINT RESOLUTION 180 dpi
PRINT SPEED 500 mm/sec (max)
PRINT FONTS Font A (default): 12 x 24
Font B: 9 x 17
COLUMN CAPACITY 80mm: 42/48/56 columns
58mm model: 30/36/40 columns
CHARACTER SIZE (mm) Font A (default): 12 x 24
Font B: 9 x 17
CHARACTER SET 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page).
Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean
BARCODE UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited /Expanded
MEDIA HANDLING
THICKNESS 48 – 80 µm
MEDIA DIMENSIONS 80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13" ± 0.02” x 3.27")
58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26" ± 0.02” x 3.27")
STANDARD CONNECTIVITY Built-in USB, Built-in Ethernet (10/100Base-T/TX) + UIB (Serial, Parallel, Powered USB)
Bluetooth 2.1+EDR (dedicated model)
Wireless (USB wireless dongle): OT-WL05 (802.11 a/b/g/n) or OT-WL02 (802.11 b/g/n)
Beacon (using Bluetooth Low Energy): Beacon dongle (Epson-approved dongle: Laird model BT820)
PRINTER DISCOVERY NFC (Near Field Communication), Simple AP (wireless network)
COMMUNICATION PROTOCOLS ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless)
PRINTING FROM A MOBILE DEVICE WiFi (802.11): iOS, Android™ and Windows® operating systems Bluetooth: iOS, Android and Windows
GENERAL
OPERATING SYSTEMS Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS)
Mac OS X®
Linux (CUPS, JavaPOS)
Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK)
DIMENSIONS 145 x 195 x 148mm (W x D x H)
WEIGHT 1.6kg
SECURITY Security: WEP, WPA-PSK, WPA2-PSK/EAP
WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS
Port open/close setting
IP address filtering
SAFETY APPROVALS RCM: AS/NZS CISPR 32 Class A
CASE COLOUR Epson Black (EBCK)
RELIABILITY
MTBF 360,000 hours
MCBF 70,000,000 lines
THERMAL HEAD LIFE 200 km
AUTO CUTTER LIFE 3 million cuts
WARRANTY 48 months
DATA BUFFER
RECEIVE 45 bytes or 4KB, selectable
USER-DEFINED 12KB
MACRO 2KB
NV GRAPHICS 384KB
NV USER 1KB
SOFTWARE INCLUDED ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise
ePOS-Display Server Collaboration: Server Direct Print, Status notification
PHP/Sqlite3 Backup/Restore: TM Utlity (Win)
OPTIONS Power supply cover
PS-190 AC adapter
one wall hanging bracket
affixing tape and Connect-It interfaces
POWER
POWER SUPPLY VOLTAGE 24VDC ± 7%
POWER CONSUMPTION Operating: 27.6W
Stand-by: 0.5W
POWER SOURCE 24VDC ± 7%

(C31CJ57612)

Power Description
Power Source Power Adapter
Fonts & Emulation
Language Emulation ePOS
ESC/POS
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Technical Information
Application/Usage Desktop
Barcode Symbology Supported UPC-A/E
Composite Symbology
GS1 DataBar Limited
GS1 DataBar Omnidirectional
GS1 DataBar Truncated
GS1-128
Maxi Code
PDF417
QR Code
GS1 DataBar Expanded
Code 93
Code 39
Code 128
Data Matrix
Aztec Code
Codabar
Recommended Use Receipt Print
Connectivity Technology Wired
Features Water Resistant
Print Head Life 200 km
Print Color Capability Monochrome
Mean Time Between Failures (MTBF) 41.1 Year
Mean Cycles Between Failures (MCBF) 70000000
Character Sets Thai
128 x 43 Graphic
18 International
95 Alphanumeric
Column Capacity 80mm: 42/48/56 columns 58mm model: 30/36/40 columns
Optional Connectivity Wireless LAN
Bluetooth
Near Field Communication (NFC)
Parallel
Fonts Included Font A (default): 12 x 24 Font B: 9 x 17
Maximum Print Resolution (dpi) 180
Software
Software Included

ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise
ePOS-Display Server Collaboration: Server Direct Print, Status notification
PHP/Sqlite3 Backup/Restore: TM Utlity (Win)

Operating System Supported

Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS)
Mac OS X®
Linux (CUPS, JavaPOS)
Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK)

Cutter
Cutting Method Automatic
Cutter Yes
Cutter Life 3000000 Cuts
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Physical Characteristics
Weight (Approximate) 1.60 kg
Height 148 mm
Width 145 mm
Depth 195 mm
Product Color Black
Media Types & Handling
Media Thickness 80 µm
Maximum Roll Diameter 83 mm
Media Type Receipt
Media Sensor Paper Near End Sensor
Cover Open Sensor
Paper End Sensor
Maximum Label Width 80 mm
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number C31CJ57612
Manufacturer Website Address http://www.epson.com.au
Manufacturer Epson Corporation
Product Model TM-T88VII -612
Product Name TM-T88VII Single-station Thermal Receipt Printer
Product Series TM-T88VII
Brand Name Epson
Miscellaneous
Package Contents
  • TM-T88VII Single-station Thermal Receipt Printer
  • Thermal Roll Paper (starter roll for testing)
  • Power Switch Cover
  • Connector Cover
  • Bottom Cover for Connector Cover
  • Roll Paper Guide
  • Screws
  • Setup Guide
  • AC Adapter w/ AC Cord
  • CD (drivers, utilities and documentation)
Platform Supported Mac
SPARC
PC
iOS
Android
Environmentally Friendly Yes
Environmental Certification RoHS
Noise Level 52 dB
SKU C31CJ57612
Barcode # 8715946697086
Brand EPSON
Shipping Weight 2.4700kg

Manufacturer Warranty
