The supplied RFID configuration supports mobile printing and encoding of compatible RFID labels and tags.
Zebra ZQ630 Plus RFID 4-inch Mobile Direct Thermal Label Printer Wi-Fi 6 Bluetooth 5.x
Model # ZQ63-RAXAA04-00
-
SKU: ZQ63-RAXAA04-00
Don't pay: $3,457.46
$2,784.00
SAVE $673.46 (19%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

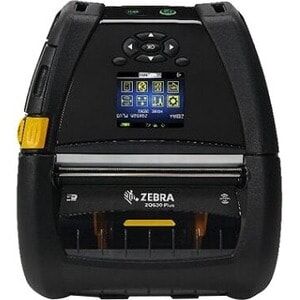

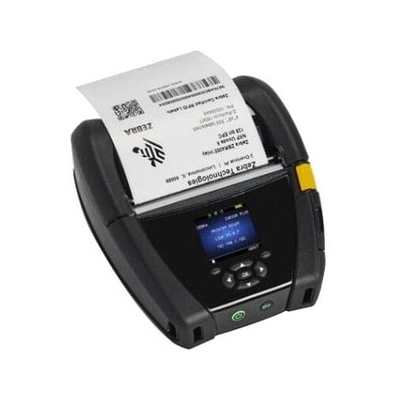

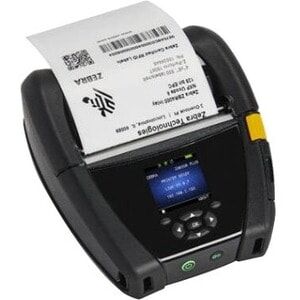

Zebra ZQ630 Plus RFID 4-inch mobile label printer
The Zebra ZQ630 Plus RFID is a 4-inch mobile direct thermal printer for printing and encoding compatible RFID labels and tags, with 802.11ax Wi-Fi 6 and Bluetooth 5.x.
Mobile RFID printing4-inch direct thermal802.11ax Wi-Fi 6Bluetooth 5.x
Automatic calibration simplifies RFID setup and avoids recalibration when changing to the same media type.
This configuration lists 802.11ax Wi-Fi 6 and Bluetooth 5.x dual radio for supported mobile connections.
Visible printer status
A large colour display provides direct printer-status information and supports day-to-day operation.
Durable mobile design
Over-moulding, a tempered-glass display, high-grade resin and a seamless one-piece design support all-day enterprise use.
Battery visibility and management
The PowerPrecision+ battery provides accessible battery metrics that help identify ageing batteries before they affect work.
Key specifications
| Print method | Direct thermal |
|---|---|
| Print width class | 4 inches |
| RFID | Mobile RFID label and tag printing and encoding |
| RFID setup | Automatic calibration |
| Wireless networking | 802.11ax Wi-Fi 6 |
| Bluetooth | Bluetooth 5.x |
| Radio configuration | Wi-Fi 6 dual radio |
| Platen | Linered platen |
| Media core | 0.75 inch |
| Fonts | English, Traditional Chinese and Korean |
| Configuration group | Group A |
| Included carrying feature | Belt clip |
Frequently asked questions
Can this model encode RFID media?
Yes. This supplied RFID configuration prints and encodes compatible RFID labels and tags.
How is RFID media set up?
The supplied description lists automatic RFID calibration and notes that the same media type does not need recalibration after a change.
Which wireless connections are included?
This configuration lists 802.11ax Wi-Fi 6 and Bluetooth 5.x dual radio.
(ZQ63-RAXAA04-00)
- Apple® iOS, Android™ and Windows® Mobile connectivity
- Direct thermal printing of barcodes, text and graphics
- CPCL, EPL™ and ZPL® programming languages
- 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
- 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
- Built-in battery charger
- Belt clip for unobtrusive and convenient printing Black mark sensing using fixed center position sensors
- Easy-to-use peel and present mode Label present sensor for issuing labels one at a time
- Tear bar for easy media dispensing
- Center-loading media locking for variable roll widths
- "Clamshell" design for easy media loading
Power Description
| Power Source | Battery |
Software
| Operating System Supported |
|
Display & Graphics
| Display Screen | Yes |
| Screen Size | 10.2 cm (4") |
Technical Information
| Application/Usage | Warehouse |
| Transportation & Logistic | |
| Retail | |
| Mobile | |
| Manufacturing | |
| Healthcare | |
| Barcode Symbology Supported | FIM |
| Codabar (NW-7) | |
| AZTEC | |
| 2D | |
| 2 and 5 Digits Add-on | |
| QR Code | |
| POSTNET | |
| Plessey | |
| PDF417 | |
| MSI | |
| Micro PDF-417 | |
| Maxi Code | |
| Interleaved 2 of 5 | |
| GS1 DataBar (RSS) | |
| FIM Postnet | |
| TLC 39 | |
| UCC/EAN 128 | |
| UPC-A | |
| UPC-E | |
| Code 39 | |
| Code 93 | |
| Data Matrix | |
| EAN-13 | |
| EAN-8 | |
| Code 128 | |
| Maximum Print Width | 104 mm (4.09") |
| Recommended Use | Label Print |
| Features | Water Resistant |
| Dust Resistant | |
| Belt Clip | |
| Print Technology | Direct Thermal |
| Mobile Device Printing | Yes |
| Print Color Capability | Monochrome |
| Maximum Print Length | 813 mm |
| Character Sets | Korean |
| Thai | |
| Universal Font Scaling Technology (UFST) | |
| Agfa Monotype | |
| Ingress Protection (IP) Rating | IP54 |
| Maximum Print Resolution (dpi) | 203 |
Interfaces/Ports
| USB | Yes |
| USB Host | Yes |
Memory
| Flash Memory | 512 MB |
| Standard Memory | 256 MB |
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 6600 mAh |
| Battery Included | Yes |
Miscellaneous
| Platform Supported | Android |
| iOS | |
| Energy Star | Yes |
Fonts & Emulation
| Language Emulation | CPCL |
| ZPL | |
| XML | |
| EPL |
Physical Characteristics
| Weight (Approximate) | 1.11 kg |
| Height | 82.5 mm |
| Width | 165 mm |
| Depth | 187 mm |
Network & Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Ethernet Technology | Fast Ethernet |
| RFID | Yes |
| Network Ready | Yes |
| Near Field Communication (NFC) | Yes |
General Information
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | ZQ63RAXAA0400 |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZQ630 Plus |
| Product Name | ZQ630 Plus Direct Thermal Printer |
| Product Series | ZQ600 |
| Brand Name | Zebra |
Media Types & Handling
| Media Thickness | 190.5 µm |
| Maximum Roll Diameter | 66 mm |
| Media Type | Receipt |
| Tag | |
| Black Bar | |
| Linered Media | |
| Die-cut Label | |
| Black Mark | |
| Label | |
| Media Sensor | Label Present Sensor |
| Black Mark Sensor | |
| Gap Sensor | |
| Maximum Label Width | 112 mm |
| Maximum Label Length | 813 mm |
| SKU | ZQ63-RAXAA04-00 |
| Brand | ZEBRA |
| Shipping Weight | 1.2800kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
