View PDF BrochureFive LED icons display common printer needs, while the three-button interface provides direct day-to-day control.
Zebra ZD411 2-inch Direct Thermal Label & Wristband Printer 203dpi USB
Model # ZD4A022-D0PM00EZ
-
SKU: ZD4A022-D0PM00EZ
Don't pay: $640.00
$371.00
SAVE $269.00 (42%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

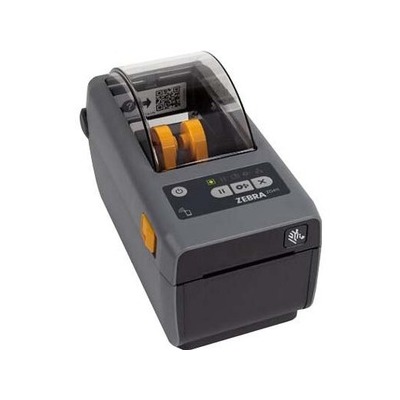

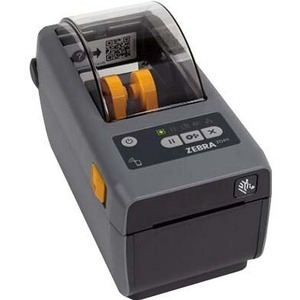

Zebra ZD411 compact 2-inch direct thermal printer
The Zebra ZD411 is a compact 2-inch direct thermal label and wristband printer with 203dpi output, USB connectivity, an advanced three-button interface and five status icons.
2-inch direct thermal203dpiUSB and USB HostFive status icons
Colour-coded touch points and the supplied media-handling design guide users through media replacement.
ZPL and EPL printer languages support compatible label formats and applications, with Printer Emulations available for other listed languages.
Onsite or remote management
The Zebra Print DNA software suite supports integration, operation and management through a web-based dashboard.
Mobile-assisted setup
Bluetooth Low Energy 5 is supplied only for the Zebra printer setup mobile app on compatible Android and iOS devices.
Compact, expandable design
The dual-wall frame, OpenACCESS media loading and field-installable options support a compact printer that can be adapted as requirements change.
Key specifications
| Print method | Direct thermal |
|---|---|
| Print width class | 2 inches |
| Resolution | 203dpi |
| Connectivity | USB 2.0 and USB Host |
| Setup connection | Bluetooth Low Energy 5 for the Zebra setup app only |
| Programming languages | ZPL and EPL |
| User interface | Five status icons and three buttons |
| Media loading | OpenACCESS |
| Clock | Real Time Clock |
| Document printing | PDF Direct |
| Construction | Dual-wall frame |
| Energy certification | ENERGY STAR certified |
Frequently asked questions
What does this ZD411 configuration print?
It is a 2-inch direct thermal printer for labels and wristbands.
Can BLE be used for general wireless printing?
The supplied description limits Bluetooth Low Energy to the Zebra printer setup mobile app.
Which wired connections are included?
The supplied product information lists USB 2.0 and USB Host.
(ZD4A022-D0PM00EZ)
Memory
| Standard Memory | 256 MB |
Power Description
| Power Source | AC Supply |
Software
| Operating System Supported | Link - OS |
Warranty
| Limited Warranty | 2 Year |
Interfaces/Ports
| USB | Yes |
| USB Host | Yes |
Network & Communication
| Bluetooth | Yes |
| Near Field Communication (NFC) | Yes |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | Plessey |
| Code 93 | |
| Code 49 | |
| QR Code | |
| UPC-E | |
| Codablock | |
| Maxi Code | |
| Data Matrix | |
| Interleaved 2 of 5 | |
| Codabar | |
| PDF417 | |
| Standard 2 of 5 | |
| 2D | |
| EAN With 2 or 5 Digit Extension | |
| Micro PDF | |
| EAN-13 | |
| UPC | |
| EAN-8 | |
| Code 11 | |
| Industrial 2 of 5 | |
| Code 128 | |
| 1D | |
| Planet Code | |
| UPC-A | |
| ISBT-128 | |
| AZTEC | |
| MSI | |
| LOGMARS | |
| POSTNET | |
| Code 39 | |
| Maximum Print Width | 56 mm (2.20") |
| Recommended Use | Label/Receipt Print |
| Features | Dual Wall Frame |
| Compact | |
| Maximum Mono Print Speed | 152 mm/s |
| Print Color Capability | Monochrome |
| Optional Connectivity | Serial (RS-232) |
| Wireless LAN | |
| Ethernet | |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 203 |
Environmental Conditions
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| Operating Temperature | 4.4°C - 40.6°C |
| Operating Relative Humidity | 10% - 90% |
Physical Characteristics
| Weight (Approximate) | 997.9 g |
| Height | 152.4 mm |
| Width | 114.3 mm |
| Depth | 218.4 mm |
Fonts & Emulation
| Language Emulation | EPL |
| EZPL | |
| ZBI | |
| ZPL II | |
| XML | |
| EPL II | |
| ZPL |
General Information
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | ZD4A022-D0PM00EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD411 |
| Product Name | ZD411 Direct Thermal Printer |
| Product Series | ZD400 |
| Brand Name | Zebra |
Media Types & Handling
| Media Thickness | 190.5 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Tag Stock |
| Roll Fed | |
| Wristband | |
| Continuous Paper | |
| Continuous Receipt | |
| Fanfold | |
| Media Sensor | Moveable Reflective/Black Mark Sensor |
| Multi-position Transmissive/Gap Sensor | |
| Full Width Sensor | |
| Maximum Label Width | 57 mm |
| Maximum Label Length | 991 mm |
Miscellaneous
| Package Contents |
|
| Platform Supported | Android |
| iOS | |
| PC | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| REACH | |
| Cables Included | USB |
| Energy Star | Yes |
| Power Cable Localization | UK |
| EU | |
| JP | |
| AUS | |
| Power Adapter Included | Yes |
| SKU | ZD4A022-D0PM00EZ |
| Brand | ZEBRA |
| Shipping Weight | 2.6400kg |
| Shipping Width | 0.019m |
| Shipping Height | 0.028m |
| Shipping Length | 0.020m |
