Thermal transfer and direct thermal methods support different compatible label and wristband media requirements.

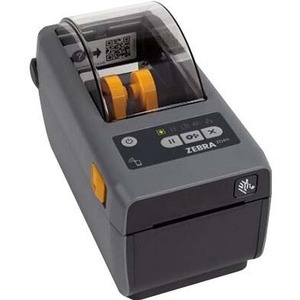

Zebra ZD411 2-inch Thermal Transfer Label & Wristband Printer 203dpi USB Mod-Slot
Model # ZD4A022-T0PM00EZ
-
SKU: ZD4A022-T0PM00EZ
Don't pay: $803.00
$466.00
SAVE $337.00 (42%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra ZD411 2-inch thermal transfer printer with modular slot
The Zebra ZD411 combines thermal transfer and direct thermal printing in a compact 2-inch label and wristband format, with 203dpi output, USB connectivity and a modular connectivity slot.
Thermal transferDirect thermal capable203dpiUSB modular-slot model
Five LED status icons and a three-button interface help users identify common printer needs and control routine tasks.
ZPL and EPL printer languages allow compatible existing label formats and applications to continue being used.
Quicker media changes
Colour-coded touch points and the supplied media-handling design guide users through media and ribbon replacement.
Software-led management
Zebra Print DNA supports integration, operation and onsite or remote management through a web-based dashboard.
Setup from a compatible mobile device
Bluetooth Low Energy 5 is supplied only for the Zebra printer setup mobile app on compatible Android and iOS devices.
Key specifications
| Print methods | Thermal transfer and direct thermal |
|---|---|
| Print width class | 2 inches |
| Resolution | 203dpi |
| Connectivity | USB 2.0, USB Host and modular connectivity slot |
| Setup connection | Bluetooth Low Energy 5 for the Zebra setup app only |
| Programming languages | ZPL and EPL |
| User interface | Five status icons and three buttons |
| Media loading | OpenACCESS |
| Clock | Real Time Clock |
| Document printing | PDF Direct |
| Construction | Dual-wall frame |
| Energy certification | ENERGY STAR certified |
Frequently asked questions
Does this ZD411 use thermal transfer printing?
Yes. It supports thermal transfer and direct thermal print methods.
Which wired interfaces are listed?
The supplied configuration lists USB 2.0, USB Host and a modular connectivity slot.
Which printer languages are supported?
ZPL and EPL are listed, with Printer Emulations available for other supported languages.
(ZD4A022-T0PM00EZ)
Memory
| Standard Memory | 256 MB |
Power Description
| Power Source | AC Supply |
Software
| Operating System Supported | Link - OS |
Warranty
| Limited Warranty | 2 Year |
Interfaces/Ports
| USB | Yes |
| USB Host | Yes |
Network & Communication
| Bluetooth | Yes |
| Near Field Communication (NFC) | Yes |
Environmental Conditions
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| Operating Temperature | 4.4°C - 40.6°C |
| Operating Relative Humidity | 10% - 90% |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | Code 128 |
| EAN-13 | |
| AZTEC | |
| ISBT-128 | |
| 2D | |
| Planet Code | |
| Interleaved 2 of 5 | |
| UPC-A | |
| Code 93 | |
| Micro PDF | |
| Plessey | |
| Code 11 | |
| Standard 2 of 5 | |
| PDF417 | |
| UPC | |
| Data Matrix | |
| Codabar | |
| EAN-8 | |
| QR Code | |
| Industrial 2 of 5 | |
| LOGMARS | |
| 1D | |
| Codablock | |
| Maxi Code | |
| Code 39 | |
| EAN With 2 or 5 Digit Extension | |
| UPC-E | |
| POSTNET | |
| MSI | |
| Code 49 | |
| Maximum Print Width | 56 mm (2.20") |
| Recommended Use | Label/Receipt Print |
| Features | Compact |
| Dual Wall Frame | |
| Maximum Mono Print Speed | 152 mm/s |
| Print Color Capability | Monochrome |
| Optional Connectivity | Ethernet |
| Wireless LAN | |
| Serial (RS-232) | |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 203 |
Physical Characteristics
| Weight (Approximate) | 1.63 kg |
| Height | 169.2 mm |
| Width | 138.7 mm |
| Depth | 242.8 mm |
Fonts & Emulation
| Language Emulation | ZBI |
| EZPL | |
| ZPL | |
| EPL II | |
| XML | |
| EPL | |
| ZPL II |
General Information
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | ZD4A022-T0PM00EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD411 |
| Product Name | ZD411 Thermal Transfer Printer |
| Product Series | ZD400 |
| Brand Name | Zebra |
Miscellaneous
| Package Contents |
|
| Platform Supported | PC |
| iOS | |
| Android | |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| RoHS | |
| Cables Included | USB |
| Energy Star | Yes |
| Power Cable Localization | AUS |
| EU | |
| JP | |
| UK | |
| Power Adapter Included | Yes |
Media Types & Handling
| Media Thickness | 190.5 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Fanfold |
| Tag Stock | |
| Receipt | |
| Label | |
| Wristband | |
| Roll Fed | |
| Continuous Receipt | |
| Continuous Paper | |
| Media Sensor | Full Width Sensor |
| Multi-position Transmissive/Gap Sensor | |
| Moveable Reflective/Black Mark Sensor | |
| Maximum Label Width | 57 mm |
| Maximum Label Length | 991 mm |
| SKU | ZD4A022-T0PM00EZ |
| Brand | ZEBRA |
| Shipping Weight | 3.4900kg |
| Shipping Width | 0.022m |
| Shipping Height | 0.031m |
| Shipping Length | 0.022m |
