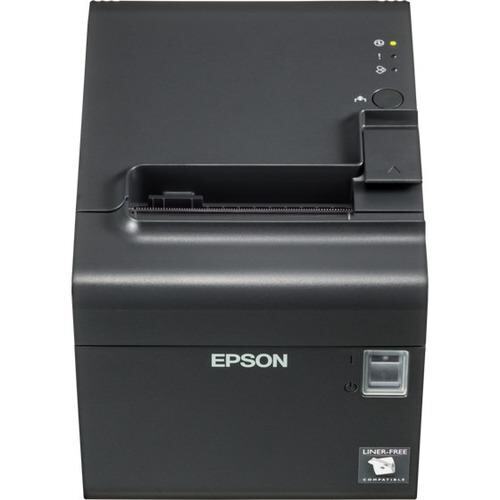

Epson TM-L90LF (682) Direct Thermal Liner-Free Label & Receipt Printer USB Serial (C31C412682)
Model # TM-L90II-682
-
SKU: C31C412682
- Pick Up Available
- Australian Warranty
- Checkout Securely
Liner-free label and receipt printing at up to 170mm/s
The Epson TM-L90LF (682) is a direct thermal desktop printer for liner-free adhesive labels and receipts, with flexible installation and automatic partial cutting.
Liner-free labels and receipts
The TM-L90LF works with adhesive-backed liner-free labels as well as receipts. Supported media widths are listed at 1.5, 2 and 3 inches, with a maximum label width of 80mm.
Taken sensor and paper-saving functions
A built-in taken sensor automatically presents the next label after the printed label is removed. Back feed, line-feed adjustment, smaller fonts and automatic top-margin reduction are listed to help reduce paper use.
Flexible installation
The printer can be positioned horizontally or vertically, with wall mounting available through an optional bracket. USB, USB host and serial interfaces are listed.
Technical specifications
| Product details | |
|---|---|
| Brand | Epson |
| Model | TM-L90LF (682) |
| SKU | C31C412682 |
| Product type | Direct thermal liner-free label and receipt printer |
| Colour | Dark grey |
| Print and media | |
| Print speed | Up to 170mm/s |
| Maximum print resolution | 203 x 203dpi |
| Print colour | Monochrome |
| Supported media | Black mark, label, liner-free label and receipt |
| Supported media widths | 1.5, 2 and 3 inches |
| Maximum label width | 80mm |
| Maximum roll diameter | 102mm |
| Sensors | Taken, black mark, paper end and cover open |
| Cutter, connectivity and installation | |
| Cutter | Automatic partial cut |
| Listed cutter life | 1,000,000 cuts |
| Interfaces | USB, USB host and serial |
| Installation | Horizontal or vertical; wall mounting with optional bracket |
| Power source | Power adapter |
| Physical details | |
| Dimensions | 140 x 148 x 203mm |
| Noise level | 52dB |
Frequently asked questions
What can the Epson TM-L90LF print?
The supplied content lists liner-free adhesive labels and receipts.
What media widths are supported?
The supplied description lists 1.5-inch, 2-inch and 3-inch media widths.
Can the printer be wall mounted?
Yes, wall mounting is listed with an optional bracket; horizontal and vertical installation are also supported.
(C31C412682)
| Power Source | Power Adapter |
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
| Platform Supported | PC |
| Country of Origin | China |
| Noise Level | 52 dB |
| Cutting Method | Automatic |
| Cutter | Yes |
| Cutter Life | 1000000 Cuts |
| Cut Type | Partial Cut |
| Application/Usage | Desktop |
| Recommended Use | Label Print |
| Print Head Life | 75KM |
| Installation | Horizontal/Vertical |
| Print Color Capability | Monochrome |
| Mean Time Between Failures (MTBF) | 41.1 Year |
| Mean Cycles Between Failures (MCBF) | 35000000 |
| Character Sets | 128 x 11 Graphic |
| 95 Alphanumeric | |
| ANK | |
| 37 International | |
| Maximum Print Resolution (dpi) | 203 x 203 |
| Form Factor | Wall Mount |
| Height | 203 mm |
| Width | 140 mm |
| Depth | 148 mm |
| Product Color | Dark Grey |
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | C31C412682 |
| Manufacturer Website Address | http://www.epson.com.au |
| Manufacturer | Epson Corporation |
| Product Model | TM-L90LF (682) |
| Product Name | Liner-Free Thermal Label Printer |
| Product Series | TM-L90 |
| Brand Name | Epson |
| Maximum Roll Diameter | 102 mm |
| Media Type | Black Mark |
| Label | |
| Liner-free Label | |
| Receipt | |
| Media Sensor | Black Mark Sensor |
| Paper End Sensor | |
| Cover Open Sensor | |
| Maximum Label Width | 80 mm |
| SKU | C31C412682 |
| Barcode # | 8715946680163 |
| Brand | Epson |
| Shipping Weight | 2.7200kg |
