The supplied configuration lists 802.11ax wireless networking and Bluetooth 5.3.
Zebra ZD421 4-inch Thermal Transfer Label Printer 203dpi USB 802.11ax Bluetooth 5.3
Model # ZD4A042-30PX02EZ
-
SKU: ZD4A042-30PX02EZ
Don't pay: $1,318.14
$849.00
SAVE $469.14 (36%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

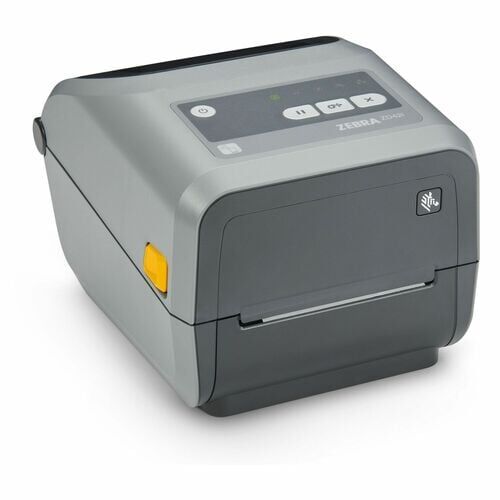

Zebra ZD421 4-inch thermal transfer printer with 802.11ax
This Zebra ZD421 is a 4-inch thermal transfer desktop label printer with 203dpi output, USB, USB Host, a modular connectivity slot, 802.11ax and Bluetooth 5.3.
4-inch thermal transfer203dpi802.11axBluetooth 5.3
USB, USB Host and a modular connectivity slot are included for direct and expandable integration.
Five LED icons and a three-button interface provide visible status information and direct printer control.
Print DNA management
The supplied Zebra Print DNA software supports integration, operation and onsite or remote management through a web-based dashboard.
Simplified media changes
Colour-coded touch points and the updated media-handling design guide users through routine media changes.
Printer-language support
The supplied configuration lists EZPL, while the family description identifies EPL and ZPL support for compatible formats and applications.
Key specifications
| Print method | Thermal transfer |
|---|---|
| Print width class | 4 inches |
| Resolution | 203dpi |
| Wired connectivity | USB, USB Host and modular connectivity slot |
| Wireless networking | 802.11ax |
| Bluetooth | Bluetooth 5.3 |
| Printer language | EZPL; family description also lists EPL and ZPL |
| Regional bundle | ROW APAC cord bundle for EU, UK and Australia |
| Font | Swiss Font |
Frequently asked questions
Which wireless connections are supplied?
The supplied configuration lists 802.11ax and Bluetooth 5.3.
Which USB interfaces are included?
USB and USB Host are listed, together with a modular connectivity slot.
What resolution is supplied?
This ZD421 configuration is listed at 203dpi.
(ZD4A042-30PX02EZ)
- Print methods: Thermal Transfer or Direct Thermal
- ZPL and EPL programming languages
- 5 status icon, 3 button user interface
- USB 2.0, USB Host
- Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection*
- * BLE is provided for use with Zebra printer setup mobile app only
- Real Time Clock (RTC)
- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR® certified
Physical Characteristics
| Form Factor | Desktop |
Software
| Operating System Supported |
|
Memory
| Flash Memory | 512 MB |
| Standard Memory | 256 MB |
Technical Information
| Application/Usage | Government |
| Healthcare | |
| Hospitality | |
| Lab | |
| Light Manufacturing | |
| Pharmacy | |
| Retail | |
| Shelf Labeling | |
| Ticketing | |
| Transportation & Logistic | |
| Barcode Symbology Supported | PDF-417 |
| Micro PDF | |
| Maxi Code | |
| LOGMARS | |
| ISBT-128 | |
| Interleaved 2 of 5 | |
| Industrial 2 of 5 | |
| EAN-8 | |
| EAN-13 | |
| EAN 2 or 5 Digit Extension | |
| Data Matrix | |
| Code 93 | |
| Code 49 | |
| UPC-E | |
| MSI | |
| Planet Code | |
| Plessey | |
| POSTNET | |
| 1D | |
| 2D | |
| AZTEC | |
| Codabar | |
| Codablock | |
| Code 11 | |
| Code 128 | |
| Code 39 | |
| QR Code | |
| Standard 2 of 5 | |
| UPC | |
| UPC-A | |
| Maximum Print Width | 104 mm (4.09") |
| Recommended Use | Label/Receipt Print |
| Connectivity Technology | Wired & Wireless |
| Features | Status Indicator |
| Dual Wall Frame | |
| Print Technology | Thermal Transfer |
| Fonts Included | 16 Resident expandable ZPL II bitmap fonts |
| Unicode compliant | |
| China units include SimSun simplified Chinese font | |
| Two resident scalable ZPL fonts | |
| Native open-type font | |
| Five resident expandable EPL2 fonts | |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 203 |
Interfaces/Ports
| USB | Yes |
| USB Standard | USB 2.0 |
| USB Host | Yes |
Power Description
| Power Source | AC Supply |
| Frequency | 60 Hz |
| 50 Hz |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth Version | 5.3 |
| Near Field Communication (NFC) | Yes |
Fonts & Emulation
| Language Emulation | |
| EPL | |
| EPL2 | |
| ZPL | |
| XML | |
| ZBI | |
| EZPL |
General Information
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | ZD4A042-30PX02EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD421 |
| Product Name | ZD421 Thermal Transfer Printer |
| Product Series | ZD400 |
| Brand Name | Zebra |
Miscellaneous
| Platform Supported | iOS |
| Android | |
| PC | |
| Certifications & Standards |
IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Cables Included | USB |
| AC | |
| Energy Star | Yes |
| Power Cable Localization | UK |
| EU | |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
Media Types & Handling
| Media Thickness | 190 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Continuous Receipt |
| Ticket | |
| Tag Stock | |
| Roll Paper | |
| Roll Fed | |
| Black Mark | |
| Continuous Label | |
| Wristband | |
| Die-cut Label | |
| Fanfold | |
| Label | |
| Receipt | |
| Media Sensor | Full Width Sensor |
| Moveable Reflective/Black Mark Sensor | |
| Multi-position Transmissive/Gap Sensor | |
| Maximum Label Length | 990.60 mm |
| SKU | ZD4A042-30PX02EZ |
| Brand | ZEBRA |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.290m |
| Shipping Height | 0.230m |
| Shipping Length | 0.325m |
