View PDF BrochureEthernet, serial, USB 2.0 and USB Host interfaces are supplied for compatible desktop and network workflows.

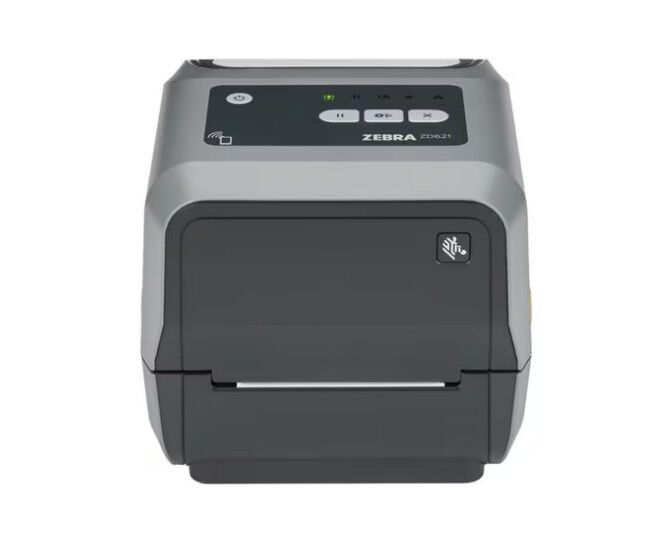

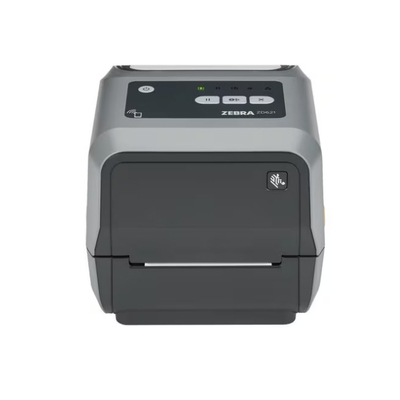

Zebra ZD621 4-inch Thermal Transfer Desktop Label Printer 203dpi USB Ethernet Serial
Model # ZD6A042-30PF00EZ
-
SKU: ZD6A042-30PF00EZ
Don't pay: $1,129.00
$842.00
SAVE $287.00 (25%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra ZD621 4-inch thermal transfer desktop label printer
This Zebra ZD621 is a 4-inch thermal transfer desktop label printer with 203dpi output, USB, USB Host, Ethernet and serial connectivity.
4-inch formatThermal transfer203dpiUSB, Ethernet and serial
Five status icons and three buttons provide at-a-glance printer information and direct controls.
ZPL and EPL programming languages are listed for compatible label formats and applications.
Straightforward setup and loading
The supplied information lists BLE 5 connection for the Android and iOS printer setup app, together with OpenACCESS media loading.
Print-quality media control
A media dancer is included to support consistent media movement and print quality during operation.
Desktop construction
The ZD621 uses a dual-wall frame and includes a Real Time Clock for supported date- and time-based workflows.
Key specifications
| Print method | Thermal transfer |
|---|---|
| Print width class | 4 inches |
| Resolution | 203dpi |
| Connectivity | Ethernet, serial, USB 2.0 and USB Host |
| Setup connection | BLE 5 for Android and iOS printer setup app |
| Programming languages | ZPL and EPL |
| User interface | Five status icons and three buttons |
| Media loading | OpenACCESS |
| Media control | Media dancer |
| Clock | Real Time Clock |
| Construction | Dual-wall frame |
| Energy qualification | ENERGY STAR certified |
Frequently asked questions
What print method does this ZD621 use?
This supplied configuration is identified as a thermal transfer desktop label printer.
Which wired connections are included?
Ethernet, serial, USB 2.0 and USB Host are listed.
Which printer languages are supported?
The supplied information lists ZPL and EPL programming languages.
(ZD6A042-30PF00EZ)
Memory
| Standard Memory | 256 MB |
Warranty
| Limited Warranty | 2 Year |
Display & Graphics
| Display Screen | Yes |
| Screen Size | 10.9 cm (4.3") |
| Display Screen Type | LCD |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
Network & Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | AC Supply |
Environmental Conditions
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| Operating Temperature | 4.4°C - 40.6°C |
| Operating Relative Humidity | 10% - 90% |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | AZTEC |
| Code 128 | |
| Code 49 | |
| Codabar | |
| MSI | |
| EAN With 2 or 5 Digit Extension | |
| Plessey | |
| LOGMARS | |
| UPC 2 or 5 Digit Extension | |
| Data Matrix | |
| Micro PDF | |
| EAN-8 | |
| QR Code | |
| UPC-E | |
| Code 39 | |
| PDF417 | |
| Codablock | |
| Interleaved 2 of 5 | |
| EAN-13 | |
| Industrial 2 of 5 | |
| Code 11 | |
| Standard 2 of 5 | |
| Code 93 | |
| ISBT-128 | |
| Maxi Code | |
| POSTNET | |
| UPC-A | |
| Planet Code | |
| Maximum Print Width | 104 mm (4.09") |
| Recommended Use | Label/Receipt Print |
| Connectivity Technology | Wired |
| Features | Dual Wall Frame |
| Status Indicator | |
| Maximum Mono Print Speed | 203 mm/s |
| Mobile Device Printing | Yes |
| Print Color Capability | Monochrome |
| Optional Connectivity | Wireless LAN |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 203 |
Physical Characteristics
| Weight (Approximate) | 2.49 kg |
| Height | 190.5 mm |
| Width | 203.2 mm |
| Depth | 266.7 mm |
Fonts & Emulation
| Language Emulation | ZPL |
| ZPL II | |
| EZPL | |
| ZBI | |
| XML | |
| EPL | |
| EPL2 |
General Information
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | ZD6A042-30PF00EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD621 |
| Product Name | ZD621 Thermal Transfer Printer |
| Brand Name | Zebra |
Miscellaneous
| Package Contents |
|
| Platform Supported | Android |
| PC | |
| iOS | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Cables Included | USB |
| AC | |
| Energy Star | Yes |
| Power Cable Localization | AUS |
| EU | |
| JP | |
| UK | |
| Power Adapter Included | Yes |
Media Types & Handling
| Media Thickness | 4826 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Black Mark |
| Receipt | |
| Tag Stock | |
| Die-cut Label | |
| Reflective | |
| Fanfold | |
| Roll Fed | |
| Wristband | |
| Label | |
| Continuous Roll | |
| Tag | |
| Gap | |
| Continuous Receipt | |
| Media Sensor | Full Width Sensor |
| Multi-position Transmissive/Gap Sensor | |
| Moveable Reflective/Black Mark Sensor | |
| Maximum Label Width | 118 mm |
| Maximum Label Length | 991 mm |
| SKU | ZD6A042-30PF00EZ |
| Brand | ZEBRA |
| Shipping Weight | 4.7800kg |
| Shipping Width | 0.026m |
| Shipping Height | 0.035m |
| Shipping Length | 0.029m |
