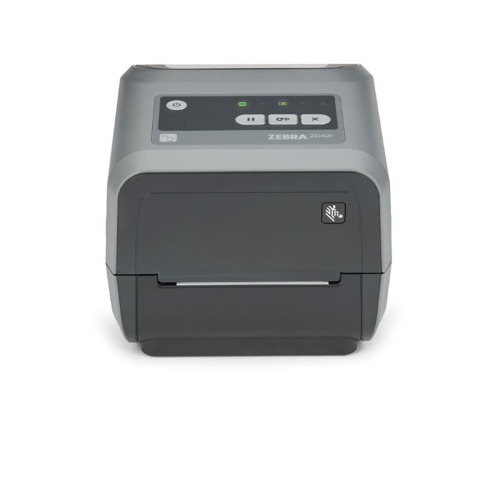

Zebra ZD421 4-inch thermal transfer label printer with Wi-Fi
The Zebra ZD421 is a 4-inch thermal transfer desktop label printer with 203dpi output, direct thermal capability, USB, Wi-Fi and Bluetooth connectivity.
4-inch print classThermal transfer203dpiWi-Fi and Bluetooth
Wired and wireless connectionThe supplied configuration includes USB, Wi-Fi and Bluetooth for flexible desktop integration.
Direct printer visibilityFive status icons and a three-button interface help users identify printer needs and control routine tasks.
Compatible label workflowsEPL and ZPL printer-language support allows compatible existing formats and applications to continue being used.
Accessible media loading
OpenACCESS media loading, updated media guides and colour-coded touch points support straightforward media changes.
Label design and management
ZebraDesigner Essentials is supplied as a label-design tool, while Zebra Print DNA supports integration and printer management.
Durable desktop construction
A dual-wall frame is supplied for the printer's compact desktop format.
Key specifications
| Print methods | Thermal transfer and direct thermal |
|---|
| Print width class | 4 inches |
|---|
| Resolution | 203dpi |
|---|
| Connectivity | USB, USB Host, Wi-Fi and Bluetooth |
|---|
| Programming languages | EPL and ZPL |
|---|
| User interface | Five status icons and three buttons |
|---|
| Media loading | OpenACCESS |
|---|
| Construction | Dual-wall frame |
|---|
| Label software | ZebraDesigner Essentials |
|---|
| Energy qualification | ENERGY STAR qualified |
|---|
| Warranty | Two-year standard warranty |
|---|
Frequently asked questions
Does this ZD421 include wireless connectivity?
Yes. The supplied configuration lists Wi-Fi and Bluetooth alongside USB connectivity.
Which print methods are available?
The supplied description lists thermal transfer and direct thermal printing.
What media-loading system is included?
OpenACCESS media loading is listed, together with updated media guides.
(ZD4A042-30PW02EZ)
| Software |
| Operating System Supported |
|
| Memory |
| Flash Memory |
512 MB |
| Standard Memory |
256 MB |
| Network & Communication |
| Wireless LAN |
Yes |
| Near Field Communication (NFC) |
Yes |
| Display & Graphics |
| Display Screen |
Yes |
| Screen Size |
10.2 cm (4") |
| Display Screen Type |
LCD |
| Interfaces/Ports |
| USB |
Yes |
| USB Standard |
USB 2.0 |
| USB Host |
Yes |
| Power Description |
| Power Source |
AC Supply |
| Frequency |
60 Hz |
| |
50 Hz |
| Miscellaneous |
| Package Contents |
- ZD420 4-Inch Desktop Printer
- Empty Ribbon Take-UP Cores (1 in. and 0.5 in.),
- 2 x 300 m Ribbon Core Adapters for Non-Zebra Ribbon
- AC Power Supply
- Power Cords
- USB Cable
- Quick Start Guide
- Regulatory Guide
|
| Platform Supported |
iOS |
| |
PC |
| Certifications & Standards |
|
| Environmentally Friendly |
Yes |
| Energy Star |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Fonts & Emulation |
| Language Emulation |
EPL |
| |
EPL2 |
| |
EZPL |
| |
ZPL II |
| |
XML |
| |
ZBI |
| |
ZPL |
| |
PDF |
| General Information |
| Product Type |
Thermal Transfer Printer |
| Manufacturer Part Number |
ZD4A04230PW02EZ |
| Manufacturer Website Address |
http://www.zebra.com/ap/en.html |
| Manufacturer |
Zebra Technologies Corporation |
| Product Model |
ZD421 |
| Product Name |
ZD421 4-inch Desktop Printer |
| Product Series |
ZD420 |
| Brand Name |
Zebra |
| Media Types & Handling |
| Media Thickness |
190 µm |
| Maximum Roll Diameter |
127 mm |
|
| Media Type |
Wristband |
| |
Roll Fed |
| |
Tag Stock |
| |
Receipt |
| |
Label |
| |
Fanfold |
| |
Die-cut Label |
| |
Continuous Receipt |
| |
Continuous Label |
| |
Black Mark |
| Media Sensor |
Full Width Sensor |
| |
Moveable Reflective/Black Mark Sensor |
| |
Multi-position Transmissive/Gap Sensor |
| Maximum Label Width |
118.11 mm |
| Maximum Label Length |
990.60 mm |
| Technical Information |
| Application/Usage |
Desktop |
| |
Government |
| |
Retail |
| |
Healthcare |
| |
Manufacturing |
| |
Transportation & Logistic |
| Barcode Symbology Supported |
EAN-8 |
| |
ISBT-128 |
| |
LOGMARS |
| |
Maxi Code |
| |
Micro PDF |
| |
MSI |
| |
PDF-417 |
| |
Planet Code |
| |
Plessey |
| |
POSTNET |
| |
QR Code |
| |
Standard 2 of 5 |
| |
UPC |
| |
UPC-A |
| |
UPC-E |
| |
EAN-13 |
| |
EAN 2 or 5 Digit Extension |
| |
Data Matrix |
| |
Code 93 |
| |
Codabar |
| |
AZTEC |
| |
Codablock |
| |
Code 49 |
| |
Code 39 |
| |
Code 128 |
| |
Code 11 |
| Maximum Print Width |
104 mm (4.09") |
| Recommended Use |
Label/Receipt Print |
| Features |
Status Indicator |
| |
Dual Wall Frame |
| Print Technology |
Thermal Transfer |
| Mobile Device Printing |
Yes |
| Print Color Capability |
Monochrome |
| Real Time Clock |
Yes |
| Maximum Print Resolution (dpi) |
203 |
|
| SKU |
ZD4A042-30PW02EZ |
| Brand |
ZEBRA |
| Shipping Weight |
4.2300kg |
| Shipping Width |
0.025m |
| Shipping Height |
0.036m |
| Shipping Length |
0.028m |
