The supplied configuration uses direct thermal printing for compatible labels and receipts.
Zebra ZD621 4-inch Direct Thermal Desktop Label Printer 203dpi USB Ethernet Serial
Model # ZD6A042-D0PF00EZ
-
SKU: ZD6A042-D0PF00EZ
- Pick Up Available
- Australian Warranty
- Checkout Securely

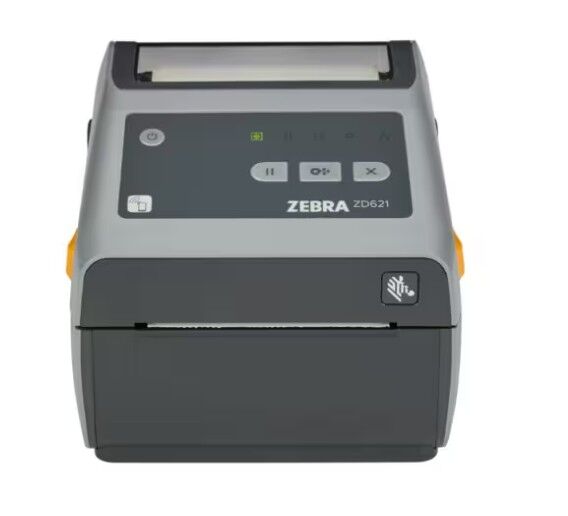

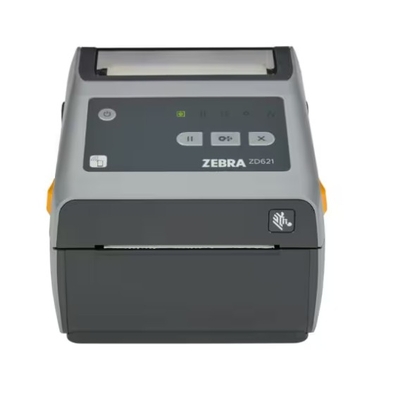

Zebra ZD621 4-inch direct thermal desktop label printer
This Zebra ZD621 is a 4-inch direct thermal desktop label printer with 203dpi output, USB, USB Host, Ethernet and serial connectivity.
4-inch formatDirect thermal203dpiUSB, Ethernet and serial
Ethernet, serial, USB 2.0 and USB Host support connection to compatible systems and peripherals.
Five status icons and three buttons help users identify printer status and access routine controls.
Mobile-assisted setup
The supplied printer setup app supports Android and iOS connection through Bluetooth Low Energy 5.
Accessible media loading
OpenACCESS media loading and a supplied media dancer support routine media handling and print quality.
Programming and construction
ZPL and EPL programming languages are listed, while the printer is built around a dual-wall frame.
Key specifications
| Print method | Direct thermal |
|---|---|
| Print width class | 4 inches |
| Resolution | 203dpi |
| Connectivity | Ethernet, serial, USB 2.0 and USB Host |
| Setup connection | BLE 5 for Android and iOS printer setup app |
| Programming languages | ZPL and EPL |
| User interface | Five status icons and three buttons |
| Media loading | OpenACCESS |
| Media control | Media dancer |
| Clock | Real Time Clock |
| Construction | Dual-wall frame |
| Energy qualification | ENERGY STAR certified |
Frequently asked questions
Is this ZD621 a direct thermal printer?
Yes. The supplied configuration identifies direct thermal as its print method.
Does it include Ethernet and serial connectivity?
Yes. Ethernet and serial are listed alongside USB 2.0 and USB Host.
How is printer status shown?
The user interface includes five status icons and three buttons.
(ZD6A042-D0PF00EZ)
Memory
| Standard Memory | 256 MB |
Warranty
| Limited Warranty | 2 Year |
Display & Graphics
| Display Screen | Yes |
| Screen Size | 10.9 cm (4.3") |
| Display Screen Type | LCD |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
Network & Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | AC Supply |
Environmental Conditions
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| Operating Temperature | 4.4°C - 40.6°C |
| Operating Relative Humidity | 10% - 90% |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | Micro PDF |
| Planet Code | |
| QR Code | |
| EAN-13 | |
| EAN-8 | |
| Code 93 | |
| MSI | |
| Data Matrix | |
| POSTNET | |
| Industrial 2 of 5 | |
| Interleaved 2 of 5 | |
| UPC-A | |
| Code 11 | |
| Codabar | |
| Plessey | |
| PDF417 | |
| Maxi Code | |
| Code 39 | |
| LOGMARS | |
| UPC 2 or 5 Digit Extension | |
| UPC-E | |
| Code 128 | |
| Code 49 | |
| AZTEC | |
| Standard 2 of 5 | |
| EAN With 2 or 5 Digit Extension | |
| Codablock | |
| ISBT-128 | |
| Maximum Print Width | 104 mm (4.09") |
| Recommended Use | Label/Receipt Print |
| Connectivity Technology | Wired |
| Features | Status Indicator |
| Dual Wall Frame | |
| Maximum Mono Print Speed | 203 mm/s |
| Mobile Device Printing | Yes |
| Print Color Capability | Monochrome |
| Optional Connectivity | Wireless LAN |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 203 |
Physical Characteristics
| Weight (Approximate) | 2.49 kg |
| Height | 190.5 mm |
| Width | 203.2 mm |
| Depth | 266.7 mm |
Fonts & Emulation
| Language Emulation | EZPL |
| ZPL II | |
| ZBI | |
| EPL2 | |
| ZPL | |
| EPL | |
| XML |
General Information
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | ZD6A042-D0PF00EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD621 |
| Product Name | ZD621 Direct Thermal Printer |
| Brand Name | Zebra |
Miscellaneous
| Package Contents |
|
| Platform Supported | PC |
| iOS | |
| Android | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Cables Included | AC |
| USB | |
| Energy Star | Yes |
| Power Cable Localization | JP |
| UK | |
| EU | |
| AUS | |
| Power Adapter Included | Yes |
Media Types & Handling
| Media Thickness | 4826 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Roll Fed |
| Black Mark | |
| Reflective | |
| Label | |
| Receipt | |
| Tag Stock | |
| Gap | |
| Die-cut Label | |
| Fanfold | |
| Continuous Roll | |
| Wristband | |
| Tag | |
| Continuous Receipt | |
| Media Sensor | Multi-position Transmissive/Gap Sensor |
| Moveable Reflective/Black Mark Sensor | |
| Full Width Sensor | |
| Maximum Label Width | 118 mm |
| Maximum Label Length | 991 mm |
| SKU | ZD6A042-D0PF00EZ |
| Brand | Zebra |
| Shipping Weight | 3.6000kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.210m |
| Shipping Length | 0.340m |
