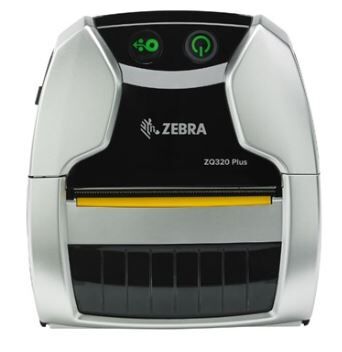

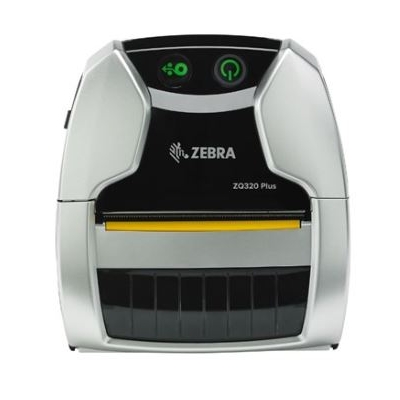

Zebra ZQ320 Plus outdoor mobile label and receipt printer
The Zebra ZQ320 Plus is a 2.83-inch outdoor mobile direct thermal printer with 203dpi output, USB, Bluetooth, NFC and a supplied cutter.
2.83-inch format203dpiBluetooth and NFCIP54 sealing
Labels and receiptsThe supplied dual-capability design supports compatible receipt printing as well as shelf, markdown and markup labels.
Outdoor-ready constructionIP54 sealing, a scuff-resistant exterior and support for water-resistant media are listed for the outdoor configuration.
Tested mobile durabilityThe supplied specifications include resistance to a 5ft/1.5m drop and a 500-drop tumble test.
Mobile device pairing
The supplied family information identifies pairing with compatible Bluetooth-enabled Zebra handhelds and tablets, plus supported Android, iOS, Windows CE and Windows Mobile devices.
Compact portable design
A lightweight, slim profile supports use in tight spaces while employees move between printing tasks.
Media flexibility
The supplied information identifies support for international metric and US media widths and linerless media workflows within the ZQ300 Plus family.
Key specifications
| Print method | Direct thermal |
|---|
| Print width | 2.83 inches |
|---|
| Resolution | 203dpi |
|---|
| Connectivity | USB, Bluetooth and NFC |
|---|
| Media output | Labels and receipts |
|---|
| Cutter | Included |
|---|
| Use configuration | Outdoor |
|---|
| Sealing | IP54 |
|---|
| Drop specification | 5ft / 1.5m |
|---|
| Tumble specification | 500 drops |
|---|
| Media support | Water-resistant and linerless media support listed in supplied family information |
|---|
Frequently asked questions
Can the ZQ320 Plus print both labels and receipts?
Yes. The supplied information identifies dual label and receipt capabilities.
What outdoor protection is listed?
The supplied outdoor configuration lists IP54 sealing, a scuff-resistant exterior and support for water-resistant media.
Which connections are included?
USB, Bluetooth and NFC are listed in the supplied product information.
(ZQ32-AAE04TA-00)
| Memory |
| Standard Memory |
128 MB |
| Power Description |
| Power Source |
Battery |
| Software |
| Operating System Supported |
Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications) And |
| Battery Information |
| Battery Capacity |
2280 mAh |
| Battery Included |
Yes |
| Cutter |
| Cutter |
Yes |
| Cutter Type |
Tear Bar |
| Fonts & Emulation |
| Language Emulation |
ZPL |
| |
CPCL |
| Network & Communication |
| Bluetooth |
Yes |
| Near Field Communication (NFC) |
Yes |
| Physical Characteristics |
| Weight (Approximate) |
430 g |
| Height |
49.5 mm |
| Width |
117.6 mm |
| Depth |
130 mm |
| Media Types & Handling |
| Maximum Roll Diameter |
40 mm |
| Media Type |
Label |
| |
Linered Media |
| |
Receipt |
| Media Sensor |
Black Mark Sensor |
| Maximum Label Width |
80 mm |
| Miscellaneous |
| Package Contents |
- ZQ310 Plus Direct Thermal Printer
- Battery (Li-Ion 2280 mAh)
- Belt Clip
- USB Cable (Type C to Type A)
- Quick Start Guide
- Registration Card
- Safety Guide
- Regulatory Guide
|
| Platform Supported |
Android |
| |
iOS |
| |
PC |
| Certifications & Standards |
FCC Part 15 and EN 55022 Class B limits; FCC, IC, and European Standards for Bluetooth and 802.11a/b/g/n; T V and IEC 60950 standard for Safety; NOM, C-Tick, VCCI, S-Mark, PSE, CCC, MII Bluetooth SIG-registered and Wi-Fi certified |
|
| Cables Included |
USB |
| General Information |
| Product Type |
Direct Thermal Printer |
| Manufacturer Part Number |
ZQ32AAE04TA00 |
| Manufacturer Website Address |
http://www.zebra.com/ap/en.html |
| Manufacturer |
Zebra Technologies Corporation |
| Product Model |
ZQ320 Plus |
| Product Name |
ZQ320 Plus Direct Thermal Printer |
| Product Series |
ZQ300 |
| Brand Name |
Zebra |
| Technical Information |
| Application/Usage |
Mobile |
| |
Industrial |
| Barcode Symbology Supported |
Code 128 |
| |
Code 39 |
| |
Code 93 |
| |
Data Matrix |
| |
EAN-13 |
| |
EAN-8 |
| |
GS1 DataBar |
| |
Interleaved 2 of 5 |
| |
Maxi Code |
| |
Micro PDF-417 |
| |
PDF417 |
| |
QR Code |
| |
TLC 39 |
| |
UCC/EAN 128 |
| |
UPC-A |
| |
UPC-E |
| |
Aztec Code |
| |
Codabar (NW-7) |
| Maximum Print Width |
72 mm (2.83") |
| Recommended Use |
Label/Receipt Print |
| Connectivity Technology |
Wireless |
| Features |
Belt Clip |
| |
Shoulder Strap |
| |
Water Resistant |
| Print Technology |
Direct Thermal |
| Mobile Device Printing |
Yes |
| Print Color Capability |
Monochrome |
| Character Sets |
Agfa Monotype |
| |
Universal Font Scaling Technology (UFST) |
| Optional Connectivity |
Wireless LAN |
| |
USB |
| Ingress Protection (IP) Rating |
IP54 |
| Maximum Print Resolution (dpi) |
203 |
|
| SKU |
ZQ32-AAE04TA-00 |
| Brand |
ZEBRA |
| Shipping Weight |
0.6500kg |
| Shipping Width |
0.007m |
| Shipping Height |
0.016m |
| Shipping Length |
0.015m |
