The supplied RE40 RFID module supports RFID label printing and encoding in a compact desktop format.
Zebra ZD621R 4-inch RFID Thermal Transfer Label Printer 300dpi Touch LCD
Model # ZD6A143-30PFR2EZ
-
SKU: ZD6A143-30PFR2EZ
Don't pay: $3,632.00
$2,477.00
SAVE $1,155.00 (32%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

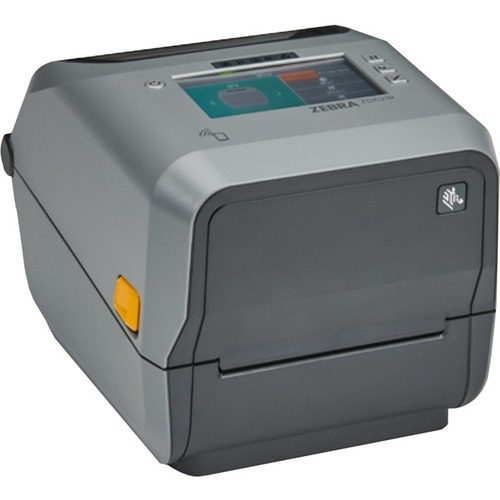

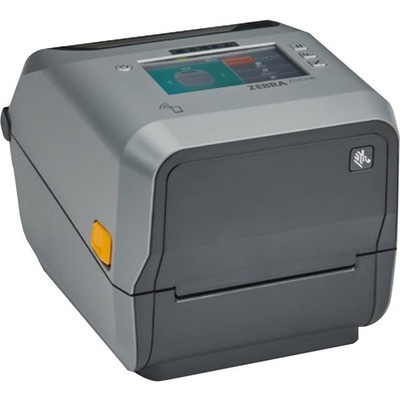

Zebra ZD621R 4-inch RFID thermal transfer label printer
The Zebra ZD621R is a compact 4-inch thermal transfer printer with 300dpi output, RFID printing and encoding, and a 4.3-inch full-colour touch display.
RFID printing and encoding300dpi4.3-inch colour touch displayUSB, Ethernet and serial
Adaptive encoding technology supports media flexibility and simplified RFID calibration without complex placement guidelines.
A 4.3-inch full-colour LCD touch display provides an intuitive menu for printer configuration and use.
Wired interfaces and setup
Ethernet, serial, USB 2.0 and USB Host are supplied, with BLE 5 connection for the Android and iOS printer setup app.
Media handling
OpenACCESS media loading and a media dancer are included to support media changes and print quality.
Printer-language support
ZPL and EPL programming languages are listed for compatible label formats and applications.
Key specifications
| Print method | Thermal transfer |
|---|---|
| Print width class | 4 inches |
| Resolution | 300dpi |
| RFID module | Zebra RE40 |
| RFID functions | Printing and encoding |
| Display | 4.3-inch full-colour LCD touch display |
| Connectivity | Ethernet, serial, USB 2.0 and USB Host |
| Setup connection | BLE 5 for Android and iOS printer setup app |
| Programming languages | ZPL and EPL |
| User interface | Five status icons and three buttons |
| Media loading | OpenACCESS |
| Clock | Real Time Clock |
| Construction | Dual-wall frame |
| Energy qualification | ENERGY STAR certified |
Frequently asked questions
Can the ZD621R print and encode RFID labels?
Yes. RFID printing and encoding are identified in the supplied information.
What display is included?
A 4.3-inch full-colour LCD touch display is supplied.
How is RFID calibration handled?
The supplied adaptive encoding technology is designed to simplify RFID calibration and media placement.
(ZD6A143-30PFR2EZ)
Warranty
| Limited Warranty | 2 Year |
Display & Graphics
| Display Screen | Yes |
| Screen Size | 10.9 cm (4.3") |
| Display Screen Type | LCD |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
Network & Communication
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
| RFID | Yes |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | AC Supply |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | Codablock |
| PDF417 | |
| Codabar | |
| LOGMARS | |
| EAN With 2 or 5 Digit Extension | |
| Data Matrix | |
| Code 93 | |
| EAN-8 | |
| EAN-13 | |
| Code 128 | |
| Industrial 2 of 5 | |
| Code 11 | |
| Code 39 | |
| UPC 2 or 5 Digit Extension | |
| Standard 2 of 5 | |
| Plessey | |
| ISBT-128 | |
| POSTNET | |
| Micro PDF | |
| Code 49 | |
| MSI | |
| AZTEC | |
| Interleaved 2 of 5 | |
| Planet Code | |
| QR Code | |
| UPC-A | |
| UPC-E | |
| Maximum Print Width | 108 mm (4.25") |
| Recommended Use | Label/Receipt Print |
| Connectivity Technology | Wired & Wireless |
| Features | Status Indicator |
| UHF Reader | |
| LCD Display | |
| Dual Wall Frame | |
| RFID Encoder | |
| RFID Reader | |
| Maximum Mono Print Speed | 152 mm/s |
| Mobile Device Printing | Yes |
| Print Color Capability | Monochrome |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 300 |
Environmental Conditions
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| Operating Temperature | 4.4°C - 40.6°C |
| Operating Relative Humidity | 10% - 90% |
Physical Characteristics
| Weight (Approximate) | 2.49 kg |
| Height | 190.5 mm |
| Width | 203.2 mm |
| Depth | 266.7 mm |
Fonts & Emulation
| Language Emulation | EPL |
| XML | |
| ZBI | |
| ZPL | |
| EPL2 | |
| ZPL II |
General Information
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | ZD6A143-30PFR2EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD621R |
| Product Name | ZD621R Thermal Transfer Printer |
| Product Series | ZD621 |
| Brand Name | Zebra |
Miscellaneous
| Package Contents |
|
| Platform Supported | iOS |
| Android | |
| PC | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Energy Star | Yes |
| Power Cable Localization | AUS |
| EU | |
| JP | |
| UK |
Media Types & Handling
| Media Thickness | 190 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Roll Fed |
| Continuous Receipt | |
| Receipt | |
| Continuous Label | |
| Fanfold | |
| Die-cut Label | |
| Tag Stock | |
| Wristband | |
| Tag | |
| Label | |
| Black Mark | |
| Media Sensor | Moveable Reflective/Black Mark Sensor |
| Multi-position Transmissive/Gap Sensor | |
| Full Width Sensor | |
| Maximum Label Width | 118 mm |
| Maximum Label Length | 991 mm |
| SKU | ZD6A143-30PFR2EZ |
| Brand | Zebra |
| Shipping Weight | 4.7000kg |
| Shipping Width | 0.026m |
| Shipping Height | 0.035m |
| Shipping Length | 0.029m |
