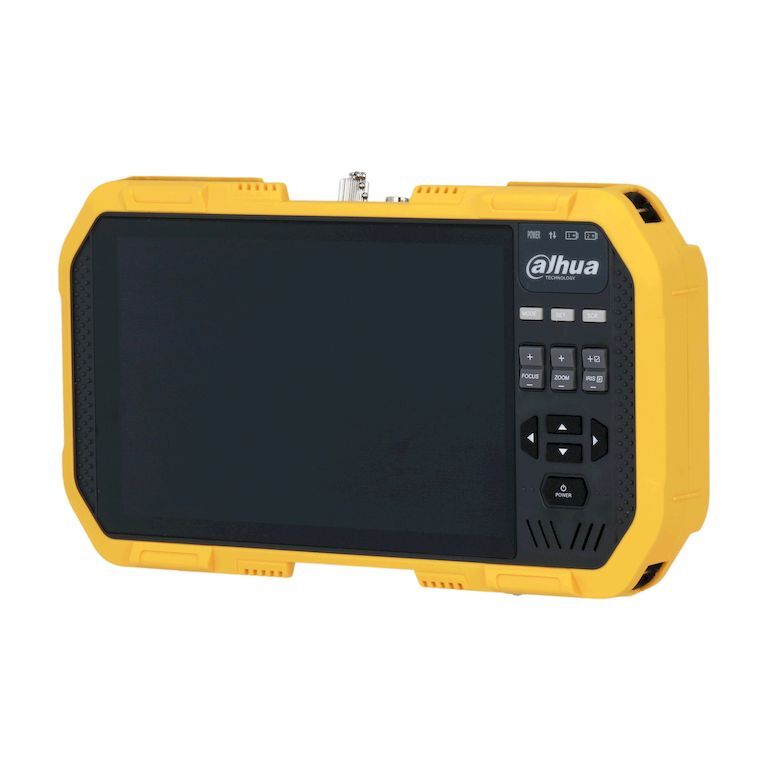

System Operation System Linux Language 10 languages including Chinese and English Operation mode Touchscreen Auto Standby/Power Off Off/5–60min Keyboard Sound On/Off Display Screen 7-in 16.7M color TFT touch screen, RGB interface lcd display: 1920 ×1200, backlight brightness adjustable Button Keypad: 13 keys Others: On–off button LED 2 Update Supports online and local update Structure&Environment Net Weight 0.93kg (2.05 lb) Product Dimensions 235.0 mm × 135.0 mm × 45.0 mm (9.25'' × 5.31'' × 1.77'') (L × W × H) Operating Temperature –10 °C to +55 °C (14 °F to 131 °F ) Operating Humidity 30%–90% (RH) IPC Test Camera Access ONVIF and Dahua private protocol Resolution 2 MP (only supports 1920 × 1080@25 fps, 1920 × 1080@30 fps); 4 MP; 6 MP; 4K Initialization Yes Image Live view, snapshot and recording, zoom, and H.264/H.265 decoding Function Control Modify the IPC resolution, IP address and account password. Control IPC to restore factory defaults Analog Video Test Video Format HDCVI; HDTVI; AHD; CVBS (NTSC, PAL) Resolution HDCVI: 720p@25/30/50/60 fps, 1080p@25/30 fps, 2560 ×1440@25/30 fps, 2880 × 1620@25/30 fps HDTVI: 720p@25/30/50/60 fps, 1080p@25/30fps, 2048×1536@18 fps, 2560 × 1440@25/30 fps AHD: 720p@25/30 fps, 1080p@25/30fps, 2048 × 1536@ 18/25/30 fps, 2560 × 1440@25/30 fps CVBS: 720 × 576@25 fps, 720 × 480@30 fps Function Control OSD menu; PTZ control Image Live view, snapshot and recording, zoom Video Signal Generator PAL; NTSC viedo test signal HDCVI; HDTVI; AHD viedo test signal (720p/1080p) UTC UTC Switches from CVBS mode to CVI/TVI/AHD mode; Switches from one HD format (up to 1080p) to another HD format Wi-Fi Standard IEEE 802.11b/g/n/ac Frequency Range 2.412–2.472 GHz 5.18–5.24 GHz 5.745–5.825 GHz Power Transmission CE EIRP: ?15.98 dBm@2400–2483.5 MHz ?11.98 dBm@5.18 GHz–5.24 GHz ?9.86 dBm@5.745 GHz–5.825 GHz FCC output power: ?15.98 dBm@2400–2483.5 MHz ?11.98 dBm@5.18 GHz–5.24 GHz ?9.86 dBm@5.745 GHz–5.825 GHz DMM DC Voltage Limit: 2/20/200/600 V Reading range: ±19999 Min. Resolution: 0.1 mV Accuracy: ±0.1%+8 AC Voltage Limit: 20/200/600 V Reading range: ±1999 Min. Resolution: 1 V Accuracy: ±1.2%+3 DC Current Limit: 20/200/2000 mA Reading range: ±19999 Min. Resolution: 1 uA Accuracy: ±0.1%+8* AC Current Limit: 20/200/2000 mA Reading range: ±1999 Min. Resolution: 1 uA Accuracy: ±1.2%+3 Resistance Test Limit: 2 k?/20 k?/200 k?/2 m?/20 m? Reading range: 0–19999 Min. Resolution: 0.1 ? Accuracy: ±0.1%+8 Capacitance Test Limit: 2 nF/20 nF/200 nF/2 uF/20 uF/200 uF/2 mF/20 mF Reading range: 0–1999 Min. Resolution: 1 pF Accuracy: ±4%+5 Diode Voltage Drop Limit: 2 V Reading range: 0–19999 Min. Resolution: 0.1 mV Accuracy: ±0.1%+20 Continuity Test Limit: 2 k? Reading range: 0–19999 Min. Resolution: 0.1 ? Accuracy: ±0.1%+20 Others RS-485 Control Communication protocol: More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600bps, 19200 bps Wireless Spectrum Test; Wi-Fi Test; Signal Monitoring Cable Test Network Cable Test: Test network cable pair length, attenuation and delay deviation. Test two or more network cables. The connection sequence and network cable number will be displayed on the screen. HDMI Test 1-ch HDMI video input (720p and 1080p); 1-ch HDMI video output (1920 ×1080p) Audio Test 1 × audio input, and 1 audio output Power Supply for Camera 12 VDC 2A Network Test Features IP address scanning and PING test. Protocol Code Acquisition Built–in serial port tool, can receive and display RS485 protocol code data sent by control device, and can also send hexadecimal codes. Optical Power Meter Detector Type: InGaAs Calibrated Wavelength: 1625/1550/1480/1310n/1300/850 nm Power Test Range: –70 dBm to +10 dBm Measurement Accuracy: <±3% dB (–10 dBm, +22 °C/+71.6 °F); <±5% dB (FS, +22 °C/+71.6 °F) Resolution: Linear: 0.1%, logarithmic : 0.01 dBm Connector: FC/PC Port Power 1 × charge port, 12 VDC 1 × power output port, 12VDC 2A Audio Port 1 × audio input port, 1 × audio output port USB 1 × USB, 1 × Micro-USB Network Port 2 × RJ45 10M/100M/1G network port SD Card NA HDMI 1 × HDMI input port 1 × HDMI output port RS-232 NA RS-485 1 VLS NA OPM 1 Multimeter 4 Power Supply Power Supply 12 VDC 1A/POE 48 V–0.5 A Battery Two battery compartments. Each battery compartment can hold a dedicated lithium battery pack with a capacity of 18.5Wh. The combined working time is about 10 hours. (can operate on a single battery). Certifications Certifications CE: EN 55032: 2015, EN 55032: 2017, EN 61000–3–2: 2014, EN 61000–3–3: 2013, EN 61010-1: 2010, EN 62321–1: 2013 FCC: FCC Part 15 Subpart B: 2016
