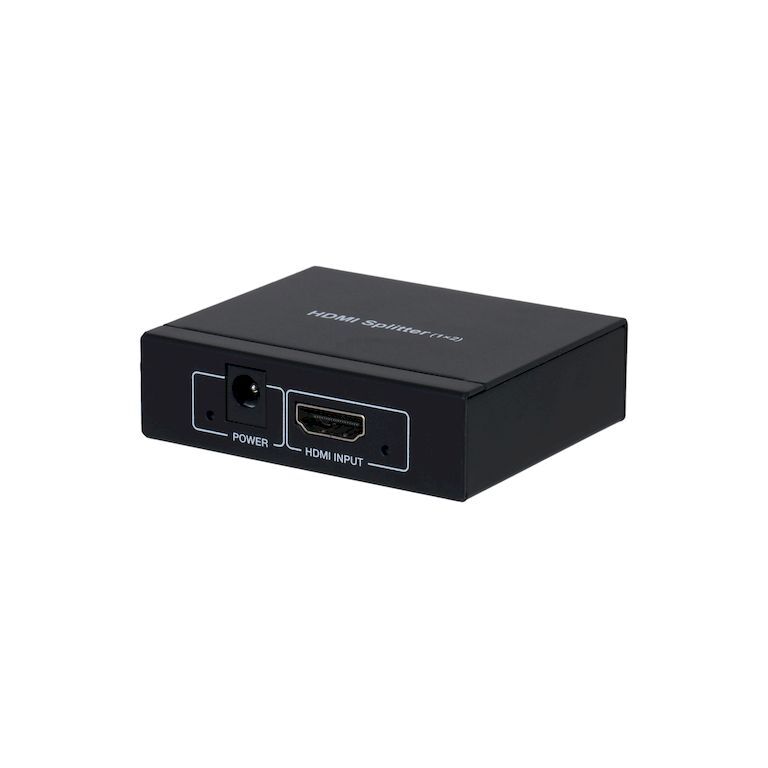

(PFM701-4K)
Model
PFM701-4K
Properties
Input Signal
1-channel HDMI
Output Signal
2-channel HDMI
Video Transmission Properties
Video Signal Input Interface
HDMI interface
Video Input Port
HDMI interface
Input Voltage
DC5V
Power
5 W
HDCP Version
Support HDCP 1.2
HDMI Version
Support HDMI 1.4
Resolution Output Signal
Resolution
4K/1080P/1080I/720P/576P/576I/480P/480I
Output Voltage
0.5~1.5Vp-p
Impedance
ESD
±6KV(contact discharge)
±8KV(air discharge)
Per: IEC61000-4-2 1995(GB/T 17626.5)
Anti-thunder
±2KV(common mode), ±1KV(differential mode)
Per: IEC61000-4-5 GB/T 17626.5
Stability
MTBF
>5000h
Physical Properties
Dimension(L*W*H)
60 mm × 70 mm × 20 mm (2.36" × 2.76" × 0.79")
Shell
Iron
Color
Black
N.W.
128 g (0.28 lb)
Environmental
Working Temperature
-10?~55?(14?~131?)
Storage Temperature
-20?~80?(-4?~176?)
Humidity
0~95%(non-condensing)
Certification
Certification
CE/FCC
| SKU | PFM701-4K |
| Model # | 1.2.01.19.10055-001 |
| Barcode # | 9319499226381 |
| Brand | DAHUA |
| Shipping Weight | 0.1200kg |
Manufacturer Warranty
