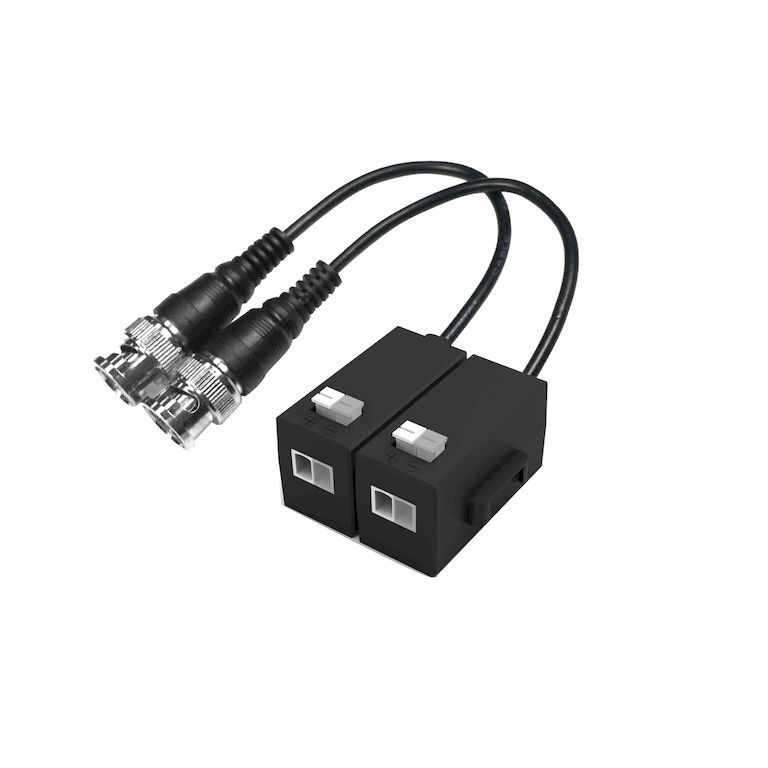

1 Channel Passive HDCVI Balun >Real-time transmission over UTP CAT5E/6 cable. >Passive, no need for power supply. >With female BNC connector, and pluggable screw terminal connections.

(PFM800-E)

Model PFM800-E Properties Transmission Signal 1 channel Transmission Distance HDCVI 720P: max.400m(1312.34ft) 1080P: max.250m(820.21ft) Category Type UTP CAT 5E/6 Video Transmission Properties And Port Coaxial Video Connector BNC-M Twisted-pair Video Connector Push-terminal Compatible Format HDCVI/AHD/TVI/CVBS Resolution 720P/1080P Anti-interference ?60db Protection ESD 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2 Coaxial Cable Connector 2KV(common-code) Per: IEC1000-4-5 UTP Cable Connector 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5 Impedance BNC Male 75 ohms UTP Cable 100 ohms Physical Properties Dimension(L*W*H) 180mm*19mm*16mm(7.09x0.75x0.63) Shell ABS Color Black N.W. 42g/pair (0.09lb) Stability MTBF ?10000h Environmental Operating Temperature -10?~+55?(14?~131?) Storage Temperature -20?~+70?(-4?~158?) Humidity 0~95%(non-condensing)
