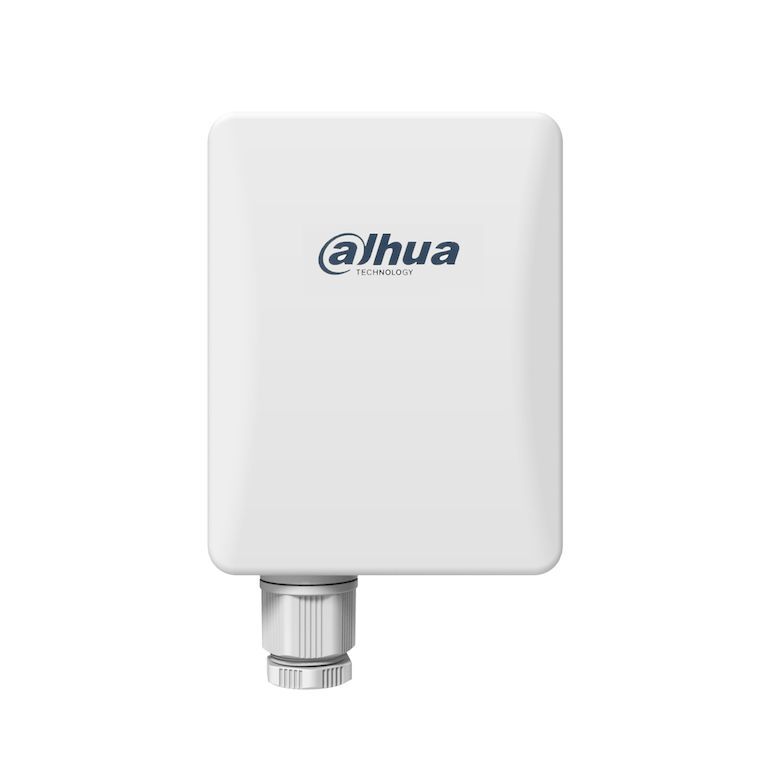

V-Radio Outdoor 11n 5G Wireless Bridge (CPE) > Strong signal: With its enhanced antenna, the point-to-point transmission distance reaches up to 3 km. > Wide operating temperature: –30 °C to +70 °C (–22 °F to +158 °F). > Easy installation: Supports multiple installation methods such as wall mount and pole mount. > High protection: IP65 rated, it is suitable for outdoor scenes and withstands severe weather. > Strong broadband: The bandwidth can reach up to 867 Mbps, ensuring there is no delay in transmission.

(PFWB5-30N)

Hardware Sold in Pairs Yes Function Slots 1 × RJ-45 10/100/1000 Base-T Power Supply 100 – 240 VAC Power Consumption Full load: 4.5 W Memory DDR 64 MB Indicator Light 1 × PWR light 1 × LAN light 4 × RSSI LEDS Performance Wireless Standard 5 GHz: IEEE 802.11a/n Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz) Wireless Transmission Rate 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps Channel Width 5/10/20/40 MHz Max. Output Power CE EIRP: ?23 dBm@5150-5250 MHz; ?23 dBm@5250-5350 MHz; ?27 dBm@5470-5725 MHz; ?14 dBm@5725-5850 MHz FCC output power: ?24 dBm@5150-5250 MHz; ?24 dBm@5250-5350 MHz; ?24 dBm@5470-5725 MHz; ?30 dBm@5725-5850 MHz Antenna Direction Angle Horizontal: 30°, vertical: 30° Transmission Distance 3000 m (9842.52 ft) PoE PoE In: 24 V/0.5 A PoE Out: NA Function Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT) Equipment Management WEB Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise Security Mechanism ACL; user isolation OFDMA Yes MU-MIMO 2 × 2 DFS Yes DHCP Yes Firmware Update Web update Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog General Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F) Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F) Operating Humidity 5%–95% (RH), non-condensing Net Weight 0.2 kg(0.44 lb) Gross Weight 0.4 kg(0.88 lb) Product Dimensions 130 mm × 97 mm × 37 mm (5.11 × 3.81 × 1.45) (L × W × H) Packaging Dimensions 174 mm × 135 mm × 80 mm (6.85 × 5.31 × 3.14)(L × W × H) Protection IP66 Installation Bracket mount Certifications CE; FCC Packing List 1 × Device; 2 × Dowel Pin; 1 × Pole Mount Bracket; 1 × Power Cord; 1 × 24 V PoE Power Adapter; 1 × Quick Start Guide
SKU PFWB5-30N
Model # 1.0.01.21.10180-0012
Barcode # 6939554947520
Brand DAHUA
Shipping Weight 0.5000kg
Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Dahua PFWB5-30N Wi-Fi Access Point CPE Outdoor IP66 - PFWB5-30N

Model # PFWB5-30N

  • SKU: PFWB5-30N

$158.00
