Dell UltraSharp U2424HE 23.8" FHD 120Hz IPS Black USB-C 90W Hub Monitor with KVM and 2.5GbE - U2424HE
Model # U2424HE
-
SKU: U2424HE
- Pick Up Available
- Australian Warranty
- Checkout Securely

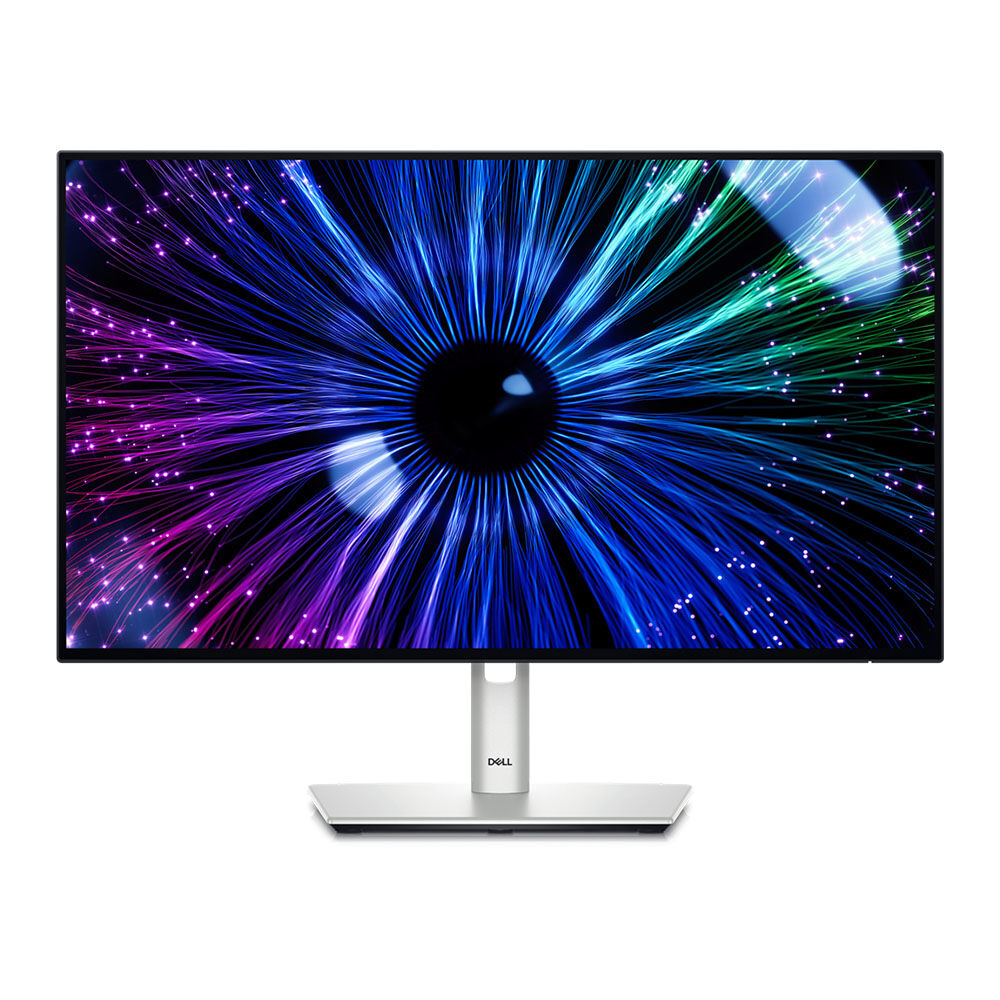

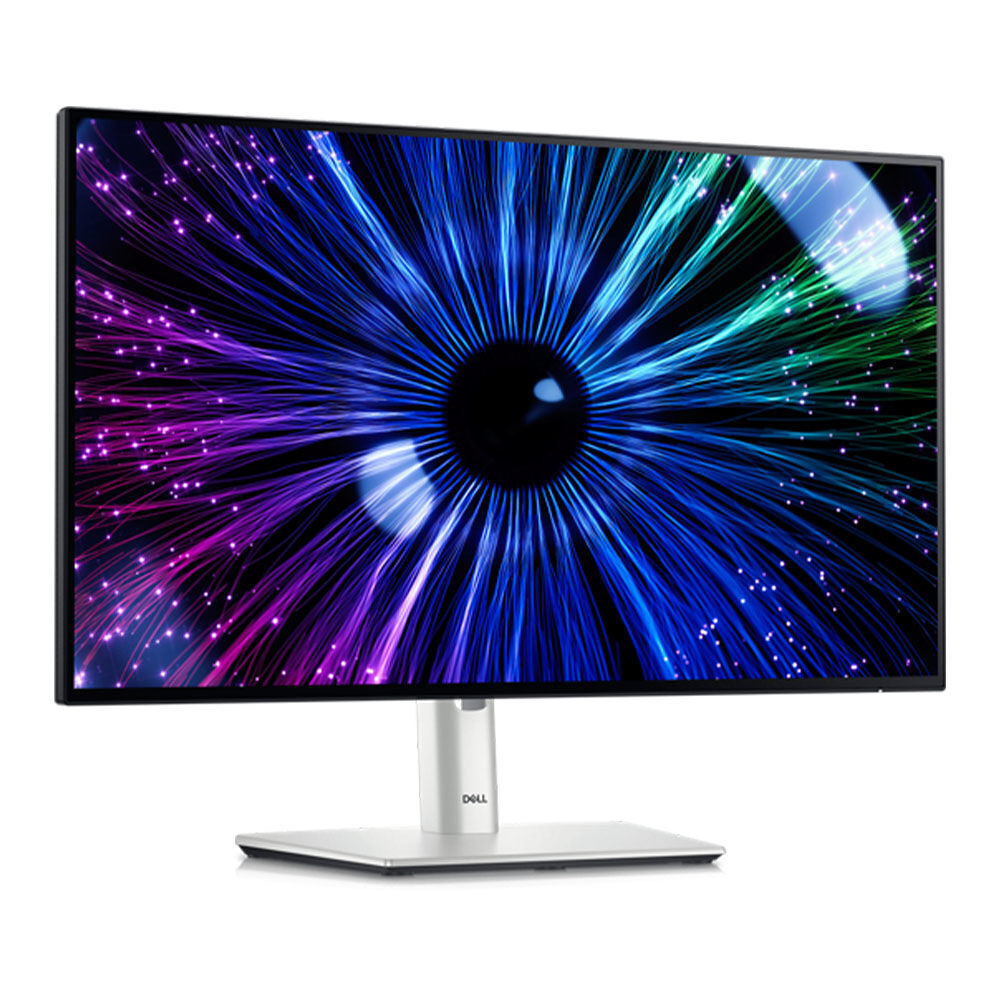

Dell UltraSharp U2424HE 24in 120Hz FHD IPS USB-C Hub Monitor
Create a streamlined professional workspace with a 23.8-inch Full HD IPS display, smooth 120Hz refresh rate, calibrated colour, 90W USB-C power delivery, integrated KVM and 2.5GbE wired networking.
Smooth Full HD viewing at 120Hz
The Dell UltraSharp U2424HE combines a 23.8-inch IPS panel with Full HD 1920 x 1080 resolution and a refresh rate of up to 120Hz. The higher refresh rate helps scrolling, window movement and everyday on-screen transitions appear smoother.
Wide 178-degree viewing angles help maintain consistent image quality when the display is viewed from different positions, while the anti-glare screen treatment helps reduce distracting reflections.
Consistent and calibrated colour
The IPS display covers 100% sRGB, 100% BT.709 and 85% DCI-P3. An average Delta E below 2 for sRGB and BT.709 supports consistent colour for presentations, websites, documents and general creative work.
Automatic viewing adjustment
An integrated ambient light sensor can automatically adjust the monitor's brightness and colour temperature according to surrounding lighting conditions.
One-cable USB-C workspace
Connect a compatible laptop through USB-C to carry Full HD video, USB data and up to 90W of power through one cable, helping simplify laptop charging and reduce desktop cable clutter.
Designed for visual comfort
TÜV 4-star eye-comfort certification and the monitor's smooth 120Hz refresh rate support comfortable viewing during extended office and home-working sessions.
Extensive hub connectivity
The U2424HE provides a central connection point for a compatible computer, wired network and frequently used USB peripherals.
Its 10Gbps USB hub includes both USB-C and USB-A connections, while the integrated 2.5GbE Ethernet port supports a fast and stable wired network connection.
- USB-C video and data input with up to 90W power delivery
- USB-C 10Gbps data-only upstream port
- Three USB-A 10Gbps downstream ports
- USB-C 10Gbps downstream port with 15W charging
- USB-A 10Gbps port with BC 1.2 charging
- DisplayPort 1.4 input and DisplayPort MST output
- HDMI supporting Full HD at up to 120Hz
- RJ45 Ethernet with 2.5GbE support
Built-in KVM and monitor daisy chaining
The integrated KVM switch allows compatible connected computers to share a keyboard and mouse through the monitor. This can simplify multi-system workstations and reduce the need to reconnect desktop peripherals.
DisplayPort output with Multi-Stream Transport also supports compatible daisy-chain monitor configurations, helping reduce the number of display cables connected directly to the computer.

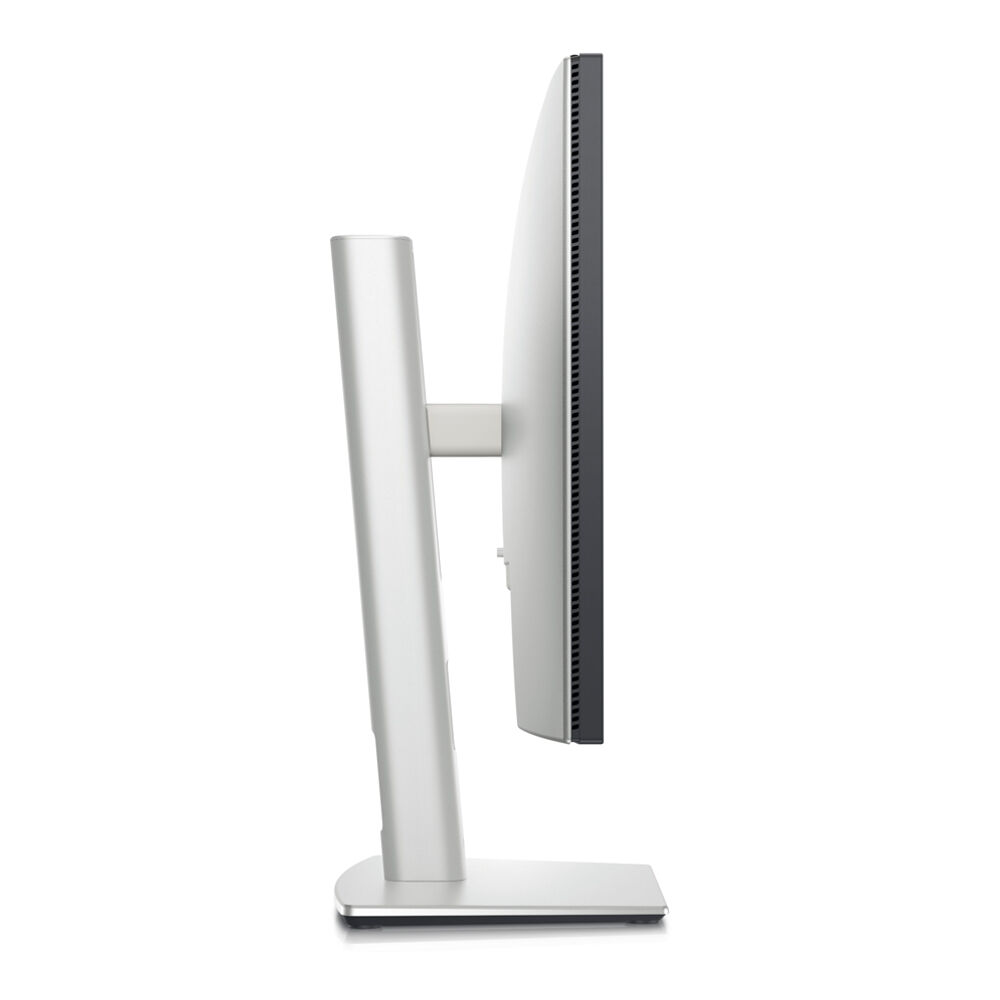

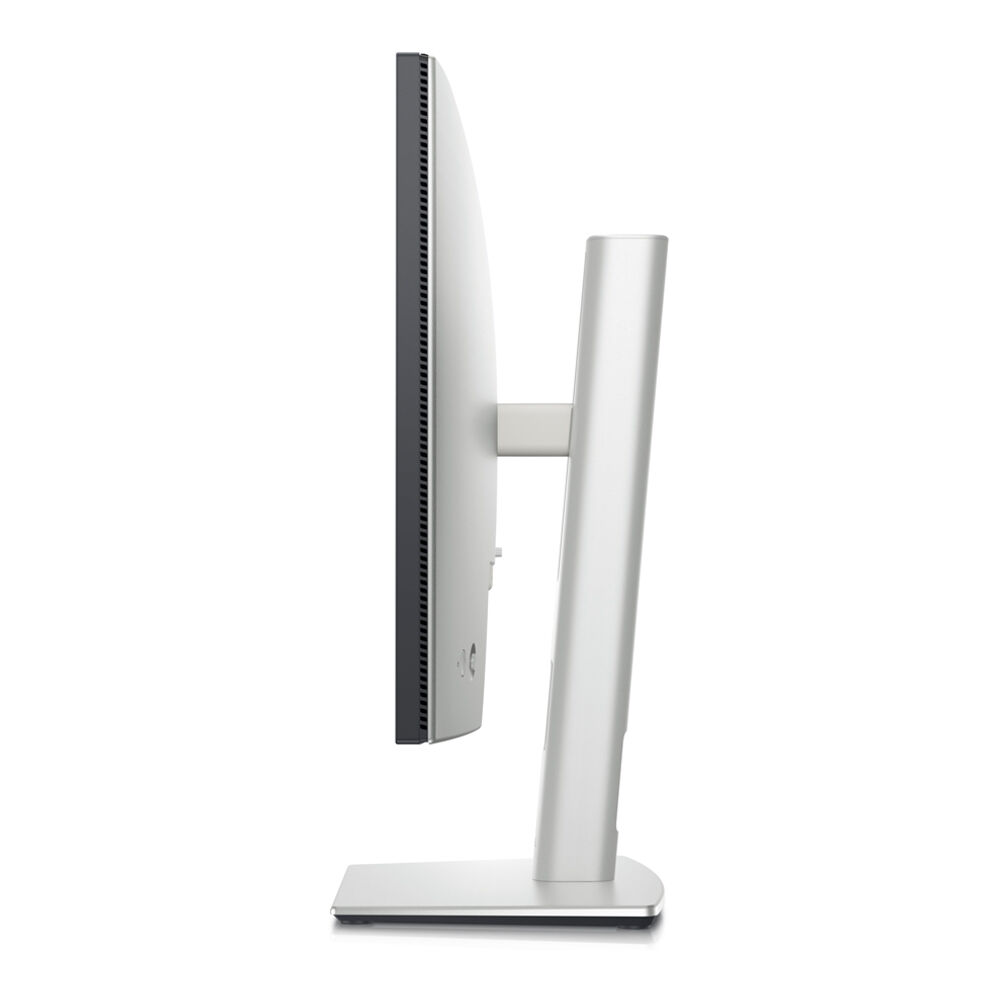

Adjustable for different work styles
The included stand supports 150mm height adjustment, tilt, swivel and pivot. The display can be rotated into portrait orientation for documents, coding, communications and vertically arranged content.
A standard 100 x 100mm VESA mounting interface provides additional flexibility for compatible monitor arms and wall-mounting solutions.
Designed for productive workspaces
USB-C laptop users
Connect, charge and access network and USB peripherals through a streamlined single-cable setup.
Professional users
Work with calibrated sRGB and BT.709 colour across presentations, websites and business content.
Multi-system workstations
Use the integrated KVM switch and DisplayPort daisy chaining with compatible computers and monitors.
Why choose the Dell UltraSharp U2424HE?
The Dell UltraSharp U2424HE combines smooth 120Hz Full HD viewing with calibrated IPS colour and extensive USB-C hub connectivity. Its 90W laptop charging, KVM switch, 2.5GbE networking and adjustable stand make it suitable for professional offices, home workspaces and multi-system desktop setups.
Frequently asked questions
What resolution and refresh rate does the Dell U2424HE support?
The monitor supports a maximum preset resolution of 1920 x 1080 at up to 120Hz.
Can the Dell U2424HE charge a laptop through USB-C?
Yes. Its primary USB-C upstream port supports video, data and up to 90W of power delivery for compatible laptops.
Does the U2424HE include wired Ethernet?
Yes. It includes an RJ45 Ethernet connection supporting network speeds of up to 2.5GbE.
Does the Dell U2424HE have a KVM switch?
Yes. The integrated KVM switch allows compatible connected computers to share a keyboard and mouse.
Can the Dell U2424HE be daisy chained?
Yes. Its DisplayPort 1.4 output supports Multi-Stream Transport for compatible daisy-chain monitor configurations.
Is the Dell U2424HE colour calibrated?
Yes. It provides 100% sRGB, 100% BT.709 and 85% DCI-P3 coverage, with an average Delta E below 2 for sRGB and BT.709. A factory calibration report is included.
Does the Dell U2424HE include speakers?
No. The monitor does not include built-in speakers, but it provides an audio line-out connection for compatible external audio equipment.
Can the monitor be used in portrait orientation?
Yes. The included stand supports pivot adjustment from -90 degrees to +90 degrees.
Can the Dell U2424HE be VESA mounted?
Yes. It supports a standard 100 x 100mm VESA mounting interface.
Not sure which monitor is right for your workspace?
View the DeviceDeal Monitor Buying Guide(U2424HE)
Dell UltraSharp U2424HE Specifications
Technical specifications for the Dell UltraSharp U2424HE 23.8-inch Full HD 120Hz IPS USB-C hub monitor.
Display
| Diagonal viewing size | 23.8 inches |
|---|---|
| Panel technology | In-plane Switching IPS |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Maximum preset resolution | 1920 x 1080 at 120Hz |
| Preset display area | 527.04mm horizontal x 296.46mm vertical |
| Pixel pitch | 0.2745 x 0.2745mm |
| Pixel density | 92.53 pixels per inch |
| Brightness | 250cd/m² typical |
| Contrast ratio | 1000:1 typical |
| Viewing angles | 178° horizontal and 178° vertical |
| Backlight technology | LED edgelight system |
| Screen coating | Anti-glare with 3H hardness |
| HDR support | No |
Colour and Performance
| Maximum refresh rate | 120Hz |
|---|---|
| Response time | 5ms grey-to-grey in Fast mode, 8ms grey-to-grey in Normal mode |
| Colour support | 16.7 million colours |
| sRGB coverage | 100% |
| BT.709 coverage | 100% |
| DCI-P3 coverage | 85% |
| Colour accuracy | Average Delta E below 2 for sRGB and BT.709 |
| Ambient light sensor | Yes, automatic brightness and colour temperature adjustment |
| Eye-comfort certification | TÜV certified for 4-star eye comfort |
| Picture-by-Picture | No |
| Picture-in-Picture | No |
Video Connectivity
| DisplayPort input | 1 x DisplayPort 1.4 with HDCP 1.4 and Dynamic Refresh Rate support for Microsoft Windows, supporting Full HD at up to 120Hz |
|---|---|
| HDMI | 1 x HDMI with HDCP 1.4, supporting Full HD 1920 x 1080 at up to 120Hz |
| DisplayPort output | 1 x DisplayPort 1.4 output with Multi-Stream Transport and HDCP 1.4 |
| Daisy-chain support | Yes, through DisplayPort MST |
USB-C, USB Hub and Networking
| Primary USB-C upstream | 1 x USB-C upstream port with video, USB data, DisplayPort 1.4 Alternate Mode and up to 90W power delivery |
|---|---|
| Data-only USB-C upstream | 1 x USB-C 10Gbps upstream port for USB data |
| USB-A downstream | 3 x USB-A 10Gbps downstream ports |
| Quick-access USB-C | 1 x USB-C 10Gbps downstream port with up to 15W charging |
| Quick-access USB-A | 1 x USB-A 10Gbps downstream port with BC 1.2 charging support |
| Ethernet | 1 x RJ45 Ethernet port with 2.5GbE support |
| KVM switch | Yes |
| Maximum USB-C laptop power delivery | 90W |
Audio
| Built-in speakers | No |
|---|---|
| Audio output | 1 x audio line-out port |
Stand and Ergonomics
| Height adjustment | 150mm |
|---|---|
| Tilt range | -5° to +21° |
| Swivel range | -45° to +45° |
| Pivot range | -90° to +90° |
| VESA mounting | 100 x 100mm |
| Security lock slot | Yes, cable lock sold separately |
| Anti-theft stand lock | Yes |
Dimensions and Weight
| Height with stand | 364.00mm compressed to 496.53mm extended |
|---|---|
| Width with stand | 538.64mm |
| Depth with stand | 181.75mm |
| Height without stand | 311.21mm |
| Width without stand | 538.64mm |
| Depth without stand | 49.10mm |
| Panel weight | 3.98kg |
| Weight with stand and cables | 5.91kg |
| Packaged weight | 7.29kg |
Power
| Input voltage | 100V AC to 240V AC |
|---|---|
| Frequency | 50Hz or 60Hz ± 3Hz |
| Rated current | 2.2A typical |
| On-mode consumption | 14.5W |
| Maximum power consumption | 210W |
| Standby power consumption | 0.5W |
| Off-mode power consumption | 0.3W |
| Networked standby consumption | 1.5W |
Environmental Conditions
| Operating temperature | 0°C to 40°C |
|---|---|
| Storage and shipping temperature | -20°C to 60°C |
| Operating humidity | 10% to 80%, non-condensing |
| Non-operating humidity | 5% to 90%, non-condensing |
| Maximum operating altitude | 5,000 metres |
| Maximum non-operating altitude | 12,192 metres |
Included Accessories
| Included hardware | Monitor, stand riser and stand base |
|---|---|
| Documentation | Quick setup guide and safety, environmental and regulatory information |
| Calibration report | Factory calibration report included |
| Power cable | Included |
| DisplayPort cable | 1 x DisplayPort 1.4 cable, 1.8m |
| USB-C cable | 1 x USB-C to USB-C Gen 2 cable, 1m |
| USB upstream cable | 1 x USB-A to USB-C Gen 2 cable, 1m |
Software and Compliance
| Display management | Dell Display Manager compatible, including Easy Arrange |
|---|---|
| ENERGY STAR | ENERGY STAR certified monitor |
| EPEAT | EPEAT registered where applicable |
| TCO certification | TCO Certified and TCO Certified Edge |
| RoHS | RoHS compliant |
| Additional environmental features | BFR and PVC-free monitor excluding external cables, arsenic-free glass and mercury-free panel |
Warranty
| Included service | 3-Year Advanced Exchange Service and Premium Panel Exchange |
|---|
| SKU | U2424HE |
| Barcode # | 5397184821428 |
| Brand | DELL |
| Shipping Weight | 8.2700kg |
| Shipping Width | 0.014m |
| Shipping Height | 0.072m |
| Shipping Length | 0.043m |
Manufacturer Warranty: 3 Years Limited Warranty
