LG 24HR513C-B 24" 2MP Diagnostic Monitor
Model # 24HR513C-B
-
SKU: 24HR513C-B
- Pick Up Available
- Australian Warranty
- Checkout Securely
LG 24HR513C-B 24" 2MP Diagnostic Monitor
Designed for clinical review and diagnostic display workflows, the LG 24HR513C-B combines 1920 x 1200 resolution, 600cd/m² typical brightness, DICOM compliance and built-in calibration support in a flexible 24-inch display.
Built for consistent medical image review
The 24HR513C-B combines high luminance, calibration tools and specialised viewing modes to help maintain clear and consistent medical images throughout clinical workflows.
600cd/m² brightness
High typical brightness supports detailed medical image viewing and diagnostic use while meeting the supplied ACR luminance guidance.
Front calibration sensor
The integrated front sensor works with supported calibration software, allowing calibration without requiring separate measuring equipment.
Automatic luminance adjustment
An auto luminance sensor adjusts screen brightness according to surrounding lighting conditions for a more consistent viewing environment.
Specialised modes for closer examination
Concentrate on the region of interest
Focus View highlights a selected part of a medical image while dimming the surrounding area, helping the user concentrate on the region requiring closer attention.
Detailed pathology image viewing
Pathology Mode is designed to provide image clarity and accuracy comparable to viewing a sample through a microscope.
Calibration and quality assurance support
LCS Medical, LG Studio Calibration Medical, supports calibration in line with DICOM Part 14 to maintain precise and consistent medical image presentation.
It also supports quality assurance testing against supplied standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093 and RANZCR.
Daisy chain connectivity helps reduce workspace clutter
The 24HR513C-B supports daisy chaining, allowing it to form part of a multi-monitor medical workstation with fewer direct display connections to the source system.
A supported configuration can combine the 24HR513C-B with two LG 21HQ513D 3MP diagnostic monitors, allowing patient charts to be displayed on the 24HR513C-B while medical images are shown on the diagnostic displays.
Flexible connections for medical workstations
HDMI, DVI-D and DisplayPort connectivity provides compatibility with a range of workstation configurations, while integrated USB 3.0 ports support connected peripherals.
- 1 x HDMI input
- 1 x DVI-D input
- 1 x DisplayPort input
- 1 x DisplayPort output for daisy chaining
- 2 x USB 3.0 downstream ports
- 2 x USB 3.0 upstream ports
Adjust the display to suit the workstation

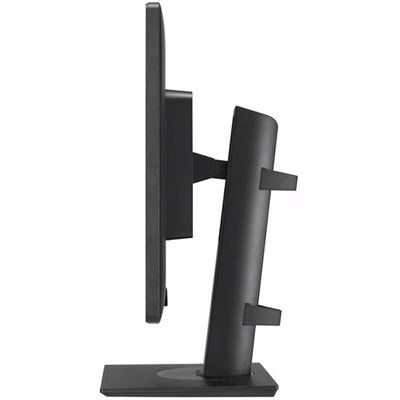

The OneClick Stand simplifies setup while supporting height, tilt, swivel and pivot adjustment for a more adaptable medical image review position.
Height adjustment
Adjustable through a 0 to 150mm range to help position the screen at a practical viewing height.
Tilt and swivel
Supports -5° to 25° tilt and ±45° swivel adjustment.
Pivot and VESA
Supports pivot adjustment and a 100 x 100mm VESA mounting interface for flexible installation.
Designed around clinical image-review workflows
- Clinical review workstations requiring a bright 24-inch medical display
- Diagnostic display environments where DICOM compliance and calibration support are required
- Pathology image review using the dedicated Pathology Mode
- Multi-monitor medical workstations using DisplayPort daisy chaining
LG 24HR513C-B frequently asked questions
It is a 24-inch 2MP medical monitor designed for clinical review and diagnostic display workflows, with DICOM compliance, calibration support and specialised medical image viewing modes.
The display has a native resolution of 1920 x 1200 with a 16:10 aspect ratio.
It includes HDMI, DVI-D and DisplayPort input, along with DisplayPort output for supported daisy-chain configurations.
Yes. The monitor supports hardware calibration and includes an integrated front sensor for supported calibration workflows.
Yes. It supports a 100 x 100mm VESA mounting pattern.
Yes. The supplied stand supports height adjustment from 0 to 150mm, together with tilt, swivel and pivot positioning.
(24HR513C-B)
LG 24HR513C-B Specifications
| Screen Size | 24 inches |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Surface Treatment | Anti-Glare |
| Pixel Pitch | 0.27 x 0.27mm |
| Viewing Angle | 178° horizontal / 178° vertical, CR≥10 |
| Typical Brightness | 600cd/m² |
| Typical Contrast Ratio | 1000:1 |
| Response Time | 5ms, GtG at Faster |
| Colour Gamut | NTSC 70%, CIE1931 |
| Colour Depth | 8-bit |
| Colour Temperature | 6500K / 7500K / 9300K / Manual 5000K-10000K |
| DVI-D | 1 x input |
| HDMI | 1 x input |
| DisplayPort | 1 x input / 1 x output |
| Daisy Chain | Supported |
| USB Downstream | 2 x USB 3.0 |
| USB Upstream | 2 x USB 3.0 |
| DICOM Compliance | Yes |
| Hardware Calibration | Yes |
| Front Sensor | Yes |
| Auto Luminance Sensor | Yes |
| Brightness Stabilisation | Yes |
| Focus View | Yes |
| Pathology Mode | Yes |
| Flicker Safe | Yes |
| Black Stabiliser | Yes |
| Reader Mode | Yes |
| Super Resolution+ | Yes |
| Smart Energy Saving | Yes |
| Position Adjustments | Tilt / Height / Swivel / Pivot |
| Tilt | -5° to 25° |
| Swivel | ±45° |
| Height Adjustment | 0-150mm |
| OneClick Stand | Yes |
| VESA Mount | 100 x 100mm |
| Dimensions with Stand | 574.2 x 559.4 x 248.2mm |
| Dimensions without Stand | 574.2 x 382.4 x 59.3mm |
| Shipping Dimensions | 705 x 480 x 200mm |
| Weight with Stand | 7.1kg |
| Weight without Stand | 4.35kg |
| Shipping Weight | 9.7kg |
| Maximum Power Consumption | 65W |
| DC Off Power Consumption | Less than 0.3W |
| AC Input | 100-240V, 50/60Hz |
| Power Type | External power adapter |
| DC Output | 19V, 3.42A |
| Power Adapter | Included |
| Power Cord | Included |
| Calibration Report | Included |
| DisplayPort Cable | Included |
| DVI-D Cable | Included |
| HDMI Cable | Included |
| USB 3.0 Upstream Cable | Included |
| Dual Controller | Supported |
| LCS Medical | LG Studio Calibration Medical calibration and QA support |
| UL / cUL | Yes |
| CE | Yes |
| RoHS | Yes |
| KGMP | Yes |
| KC | Yes |
| IEC | IEC 60601-1 / IEC 60601-1-2 |
| EN | EN 60601-1 / EN 60601-1-2 |
| IEC | IEC 60950-1 / IEC 55032 / IEC 55024 |
| EN | EN 60950-1 / EN 55032 / EN 55024 |
| FDA | Class II |
| ISO 13485 | Yes |
| GMP | Yes |
| WEEE | Yes |
| MFDS | Yes |
| REACH | Yes |
| SKU | 24HR513C-B |
| Barcode # | 8806096079911 |
| Brand | LG |
| Shipping Weight | 10.2000kg |
| Shipping Width | 0.019m |
| Shipping Height | 0.069m |
| Shipping Length | 0.048m |
