Lenovo ThinkVision P24QD-40 23.8" QHD 120Hz IPS USB-C 140W 2.5GbE KVM Docking Monitor - 64B1GAR1AU
Model # 64B1GAR1AU
-
SKU: 64B1GAR1AU
- Pick Up Available
- Australian Warranty
- Checkout Securely
Lenovo ThinkVision Professional Series
Lenovo ThinkVision P24QD-40 23.8-inch QHD 120Hz USB-C Monitor
The Lenovo ThinkVision P24QD-40 combines a detailed 23.8-inch QHD IPS display with a smooth 48-120Hz variable refresh rate, factory-calibrated sRGB colour and USB-C docking with up to 140W power delivery for productive professional workspaces.
Detailed QHD visuals with smoother motion
The 23.8-inch IPS panel delivers a 2560 x 1440 QHD resolution with 123 dpi pixel density, providing detailed text, images and additional desktop space for documents, spreadsheets, design applications and multi-window workflows.
48-120Hz variable refresh
The refresh rate operates from 48Hz to 120Hz, providing smoother scrolling and on-screen motion while allowing lower refresh rates for suitable content.
Factory-calibrated sRGB
99% sRGB coverage with factory calibration delivering an average Delta E below 2 supports dependable colour for professional and everyday visual work.
HDR10 support
HDR10 compatibility allows supported high-dynamic-range content to be displayed when used with compatible hardware and applications.
140W USB-C docking for demanding workstations
The USB-C upstream connection combines DisplayPort video, high-speed USB data and USB Power Delivery through one compatible cable, helping simplify laptop-based professional workspaces.
USB-C workstation connection
- 1 x USB-C 10Gbps upstream port
- DisplayPort 1.4 Alt Mode HBR3
- USB Power Delivery 3.1 up to 140W
- 4 x USB-A 5Gbps downstream ports
- 1 x USB-C 5Gbps downstream port with up to 15W power delivery
Display and network connectivity
- 1 x HDMI 2.1 TMDS input supporting QHD at up to 120Hz
- 1 x DisplayPort 1.4 HBR3 input
- 1 x DisplayPort 1.4 output
- 1 x USB-B 5Gbps upstream port
- 1 x 2.5GbE RJ-45 Ethernet connection
Built for multi-device productivity
KVM and eKVM
Integrated KVM functionality with eKVM support helps compatible computers share the keyboard, mouse and other USB peripherals connected to the monitor.
DisplayPort output
A DisplayPort 1.4 output supports compatible daisy-chained monitor configurations for expanded multi-display workspaces.
2.5GbE networking
The integrated 2.5GbE RJ-45 port provides wired network connectivity through a compatible docked computer.
Ergonomic adjustment and eye comfort

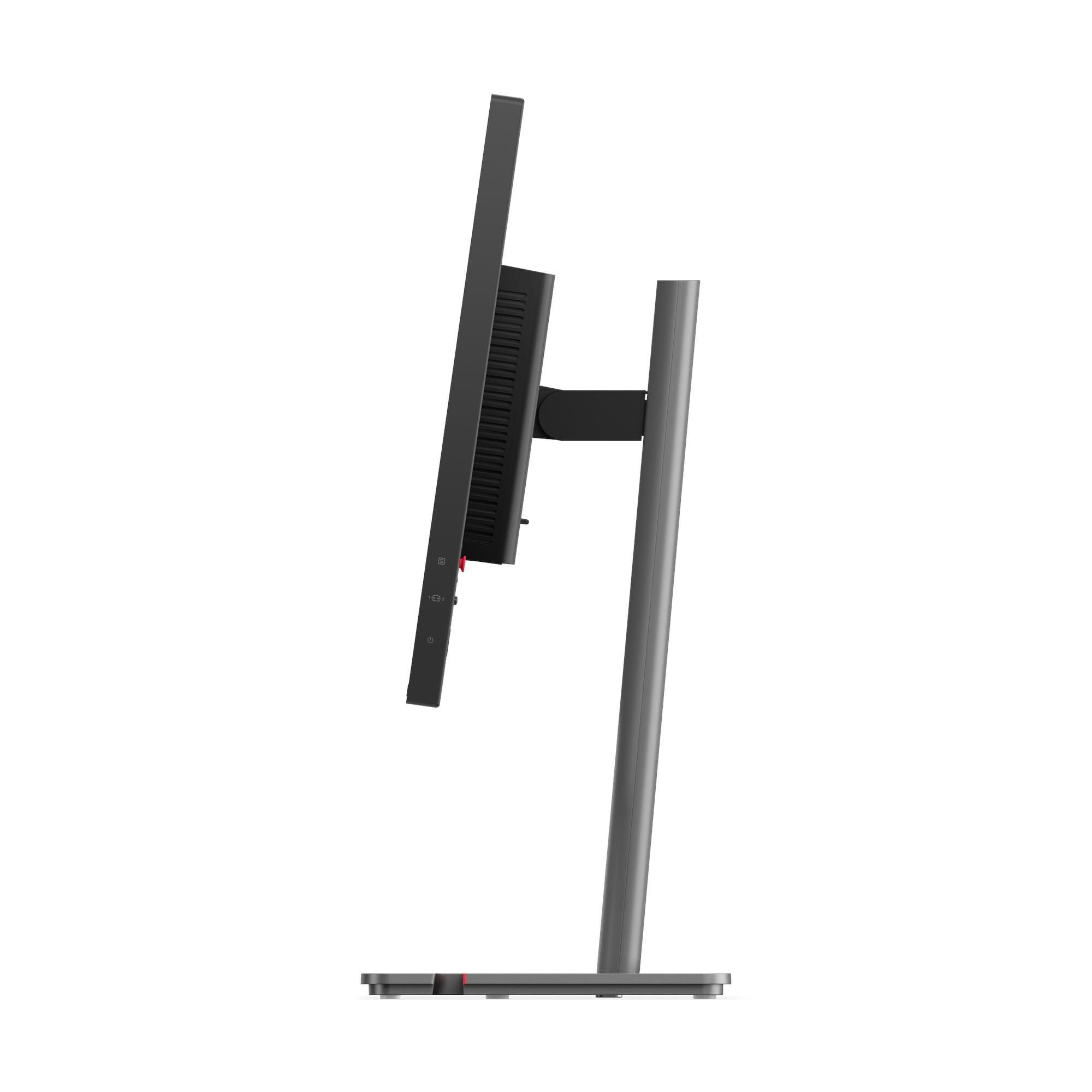

Fully adjustable stand
Position the display with up to 155mm of height adjustment, -5° to 23.5° tilt, 45° swivel in either direction and -90° to 90° pivot.
Natural Low Blue Light
Lenovo Natural Low Blue Light technology supports comfortable extended viewing while maintaining useful colour reproduction.
Eye Comfort 5-Star
Eyesafe Certified 2.0, TÜV Rheinland Eye Comfort 5-Star and Flicker Free certifications support extended professional use.
Designed for professional and managed environments
Lenovo ThinkColour, also known as Lenovo Accessories and Display Manager, provides compatible monitor configuration tools, while Lenovo Display Fleet Manager supports centralised display management in compatible business environments.
Smart Power, Mirrored Power Button and Multi-sync functionality provide additional workstation management features, while support for an optional ThinkCentre Tiny mounting kit can help create a compact desktop setup.
Who is the ThinkVision P24QD-40 suitable for?
Professional users
QHD resolution, factory-calibrated sRGB colour and a compact 23.8-inch footprint suit detailed office, design and content workflows.
Laptop workstations
USB-C docking with up to 140W power delivery, USB connectivity and 2.5GbE networking can consolidate several desk connections into one monitor.
Multi-computer setups
KVM, USB-B upstream connectivity and eKVM functionality support workspaces where compatible computers share the same monitor peripherals.
Why choose the Lenovo ThinkVision P24QD-40?
The P24QD-40 combines QHD detail, a smooth 120Hz maximum refresh rate, calibrated sRGB colour, 140W USB-C docking, 2.5GbE Ethernet, KVM functionality and DisplayPort output in a compact professional monitor designed for modern workstation environments.
Frequently asked questions
What resolution does the Lenovo ThinkVision P24QD-40 support?
It provides a native 2560 x 1440 QHD resolution on a 23.8-inch IPS panel.
Does the ThinkVision P24QD-40 support 120Hz?
Yes. Lenovo specifies a variable refresh range from 48Hz to 120Hz.
Can it charge a laptop through USB-C?
Yes. The USB-C upstream connection supports USB Power Delivery 3.1 at up to 140W for compatible devices.
Does USB-C also carry display video?
Yes. The main USB-C upstream port supports DisplayPort 1.4 Alt Mode HBR3.
Does the monitor have a KVM switch?
Yes. Lenovo specifies KVM functionality with eKVM support.
Does it have Ethernet?
Yes. It includes a 2.5GbE RJ-45 Ethernet connection.
Does 64B1GAR1AU include a webcam or speakers?
No bundled webcam, integrated microphone or built-in speakers are specified for this configuration. The compatible ThinkVision MC60 webcam and MS30 soundbar are available separately.
Can the P24QD-40 be mounted on a monitor arm?
Yes. It supports a standard 100 x 100mm VESA mounting pattern.
Not sure which monitor best suits your setup? Review the DeviceDeal Monitor Buying Guide.
(64B1GAR1AU)
Lenovo ThinkVision P24QD-40 23.8-inch Monitor Specifications
Product Details
| Brand | Lenovo ThinkVision |
|---|---|
| Model | ThinkVision P24QD-40 |
| Part number | 64B1GAR1AU |
| Product type | 23.8-inch QHD IPS professional USB-C docking monitor |
| Case colour | Eclipse Black |
Display
| Screen size | 23.8 inches |
|---|---|
| Panel type | In-Plane Switching, four-sided ultra-thin bezel |
| Backlight | WLED |
| Screen shape | Flat |
| Surface treatment | Anti-glare |
| Resolution | 2560 x 1440 QHD |
| Aspect ratio | 16:9 |
| Refresh rate | 48Hz to 120Hz |
| Brightness | 300 cd/m² |
| Typical contrast ratio | 1500:1 |
| Dynamic contrast ratio | 3,000,000:1 |
| Viewing angle | 178° horizontal / 178° vertical |
| Response time | 4ms Extreme Mode, 6ms Normal Mode |
| Pixel pitch | 0.2058 x 0.2058mm |
| Pixel density | 123 dpi |
| Active area | 526.8 x 296.4mm |
Colour and Image Quality
| sRGB coverage | 99% sRGB, CIE 1931 |
|---|---|
| BT.709 coverage | 99% BT.709, CIE 1931 |
| Colour depth | 8-bit, 6-bit + FRC |
| Colour support | 16.7 million colours |
| Factory calibration | Average Delta E<2 at sRGB |
| HDR support | HDR10 compliant |
USB-C Docking and Connectivity
| USB-C upstream | 1 x USB-C USB 10Gbps / USB 3.2 Gen 2 with DisplayPort 1.4 Alt Mode HBR3 and USB PD 3.1 up to 140W |
|---|---|
| USB-C downstream | 1 x USB-C USB 5Gbps / USB 3.2 Gen 1, data transfer only, up to 15W power delivery |
| USB-A downstream | 4 x USB-A USB 5Gbps / USB 3.2 Gen 1, including 1 x BC 1.2 port |
| USB-B upstream | 1 x USB-B USB 5Gbps / USB 3.2 Gen 1 |
| HDMI | 1 x HDMI 2.1 TMDS, supports 2560 x 1440 at up to 120Hz |
| DisplayPort input | 1 x DisplayPort 1.4 HBR3 |
| DisplayPort output | 1 x DisplayPort 1.4 output |
| Ethernet | 1 x 2.5GbE RJ-45 |
| Security slot | Kensington Nano Security Slot, 2.5 x 6mm |
Productivity Features
| KVM switch | Supported |
|---|---|
| eKVM | Supported |
| Multi-sync | Supported |
| Mirrored Power Button | Supported |
| Smart Power | Supported |
| Natural Low Blue Light | Supported |
Audio and Camera
| Built-in speakers | No |
|---|---|
| Microphone | No |
| Bundled webcam | No bundled webcam for 64B1GAR1AU |
| Optional webcam support | ThinkVision MC60 Monitor Webcam, sold separately |
| Optional soundbar support | ThinkVision MS30 Monitor Soundbar, sold separately |
Stand and Mounting
| Height adjustment | Up to 155mm |
|---|---|
| Tilt | -5° to 23.5° |
| Swivel | 45° left / 45° right |
| Pivot | -90° to 90° |
| VESA mount | 100 x 100mm |
| Cable management | Supported |
| ThinkCentre Tiny support | Supported with optional ThinkCentre Tiny Mounting Kit 4XF1R07369, sold separately |
Dimensions and Weight
| Dimensions at highest position | 539.8 x 190.0 x 505.8mm |
|---|---|
| Dimensions at lowest position | 539.8 x 190.0 x 350.8mm |
| Head-only dimensions | 539.8 x 45.3 x 315.8mm |
| Packaging dimensions | 730 x 123 x 420mm |
| Weight with stand | 5.6kg |
| Head-only weight | 3.6kg |
| Packaged weight | 8.4kg |
Power
| Power supply | Internal power supply |
|---|---|
| Power requirement | 100-240V AC, 50-60Hz |
| Typical power consumption | 16.5W |
| Maximum power consumption | 210W |
| Energy Star power-on consumption | 14.5W |
| Energy Star TEC | 47.4kWh |
| Sleep / off mode | Less than 0.5W |
| Switch-off mode | Less than 0.3W |
Software, Certifications and Warranty
| Display software | Lenovo ThinkColour, Lenovo Accessories and Display Manager |
|---|---|
| Fleet management | Lenovo Display Fleet Manager |
| Supported operating systems | Windows 11 and Windows 10 |
| Eye-comfort certifications | Eyesafe Certified 2.0, TÜV Rheinland Eye Comfort 5-Star, TÜV Rheinland Flicker Free, TÜV Rheinland Low Blue Light Hardware Solution |
| Environmental certifications | ENERGY STAR Certified, EPEAT Gold Registered, EU Energy Label D-class, TCO Certified 10.0, TCO Edge 2.1 |
| Warranty | 3-year limited warranty |
Included Accessories
| Monitor | Monitor with stand |
|---|---|
| DisplayPort cable | 1 x 1.8m DisplayPort cable |
| USB-C cable | 1 x 1.5m USB-C to USB-C Gen 2 cable |
| USB cable | 1 x 1.8m USB-B to USB-A Gen 1 cable |
| Power cable | 1 x 1.8m power cable |
| Calibration report | Factory calibration report |
| Documentation | Quick Setup Guide |
| SKU | 64B1GAR1AU |
| Barcode # | 198156544810 |
| Brand | LENOVO |
| Shipping Weight | 7.5200kg |
| Shipping Width | 0.013m |
| Shipping Height | 0.073m |
| Shipping Length | 0.042m |
