Epson ELP-DC21 Document Camera USB HDMI
Model # V12H758053
-
SKU: ELP-DC21
- Pick Up Available
- Australian Warranty
- Checkout Securely

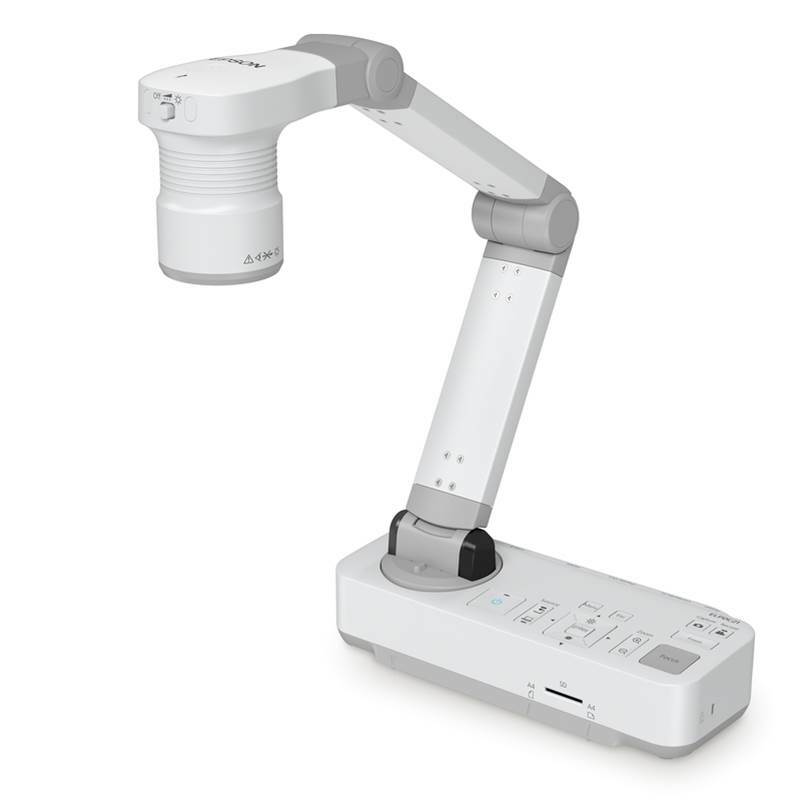

Epson ELP-DC21 Full HD Document Camera with Optical Zoom
A Full HD 1080p document camera with 12x optical zoom, 10x digital zoom, USB, VGA, HDMI and SD card support.
Product overview
Detailed Full HD presentation with optical and digital zoom
The Epson ELP-DC21 captures books, objects and experiments through a 1/2.7-inch CMOS sensor with an effective 2 MP resolution. Its 12x optical and 10x digital zoom, maximum 297 × 526 mm shooting area and two variable white LEDs support detailed Full HD views.
The supplied features include automatic focus, image freeze and rotation, split screen, microscope view, SD card capture, a built-in microphone and a camera body that rotates vertically and horizontally. Epson Easy Interactive Tools is listed for Windows and Mac.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Epson |
| SKU | ELP-DC21 |
| Product code / model | V12H758053 |
| Product type | Document camera |
| Sensor | 1/2.7-inch CMOS |
| Effective pixels | 2 MP; note in source states 2.07 MP / 1920 × 1080p |
| Native resolution | 1080p |
| Aspect ratio | 16:9 |
| Maximum frame rate | 30 fps |
| Optical zoom | 12x |
| Digital zoom | 10x |
| Lens | Optical zoom f/3.45 |
| Maximum shooting area | 297 × 526 mm at 1080p |
| Output resolutions | Analogue: SXGA, XGA, WXGA, 1080p; USB: VGA, SVGA, XGA, SXGA, WXGA, 720p, 1080p; HDMI: 480p, 720p, 1080p |
| Illumination | Two variable white LEDs |
| Input | VGA; built-in microphone |
| Output | VGA; USB-B; HDMI |
| Storage | SD card slot |
| Still-image capture | JPEG at 1920 × 1080 |
| Video capture | AVI using Motion JPEG and PCM; 720p; up to 2 GB |
| Dimensions open | 502 × 270 × 328 mm (D × W × H) |
| Dimensions closed | 120 × 375 × 122 mm (D × W × H) |
| Approximate weight | 2.6 kg |
| Standard warranty | 12 months |
| Included items | Document camera; external AC adapter with power cord; VGA cable; 3 m USB cable; manual set CD-ROM; remote control; two AA batteries; microscope adapter; quick-start guide; warranty card |
Helpful answers
Frequently asked questions
What zoom does the ELP-DC21 provide?
The source lists 12x optical zoom and 10x digital zoom.
Which video outputs are listed?
VGA, USB-B and HDMI outputs are supplied.
Can it capture to an SD card?
Yes. An SD card slot, still-image capture and video capture are described.
What is included in the box?
The supplied list includes the document camera, AC adapter and cord, VGA and USB cables, remote, batteries, microscope adapter, guides and warranty card.
(ELP-DC21)
| DOCUMENT CAMERA | |
|---|---|
| PRODUCT NAME | ELP-DC21 Document Camera |
| PRODUCT CODE | V12H758053 |
| CAMERA | ||
|---|---|---|
| Pick-up Device | 1/2.7" CMOS Sensor | |
| Effective Pixels | 2MP* | |
| Native Resolution | 1080p | |
| Aspect Ratio | 16:9 | |
| Frame Rate | Maximum 30fps | |
| Output Resolution |
|
|
| Illumination | White LED x 2 (Variable LED Light) | |
| Brightness | 250 lx or above (at A3 shooting area) | |
| OPTICS | |
|---|---|
| Lens | Optical Zoom f/3.4-5 |
| Shooting Area | Maximum 297 x 526 mm at 1080p output resolution |
| Zoom | 12x Optical Zoom 10x Digital Zoom |
| Illumination | White LED x 2 |
| Focus | Auto |
| FUNCTIONS | |
|---|---|
| White Balance | Yes (Auto) |
| Exposure | Yes (Auto) |
| Brightness Control | Off, Middle, High |
| Image Rotation | Yes |
| Image Freeze | Yes |
| Source Search | Yes |
| Aspect Ratio | Yes (Auto) |
| Digital Scroll Pan/Tilt | Yes |
| Flicker Reduction | Yes (50Hz, 60Hz) |
| Negative/Positive Conversion | Yes |
| Colour & Black & White Selection | Yes |
| Split Screen | Yes |
| Time Lapse | Yes |
| Microscope View | Yes |
| SD Card Slot | Yes |
| Still Image Saving Formats & Slideshow |
Capture: JPEG (Resolution: 1920 x 1080) Slideshow : JPEG (Resolution 7680 x 5760) |
| Video Movie Video Capture & Play |
Capture: AVI (Motion JPEG + PCM) Resolution: 720p File size: up to 2GB |
| INTERFACE | |
|---|---|
| Input | VGA, in-built MIC |
| Output | VGA, USB-B, HDMI |
| DIMENSIONS | |
|---|---|
| Dimensions (Open) (DxWxH) | 502 x 270 x 328 mm |
| Dimensions (Closed) (DxWxH) | 120 x 375 x 122 mm |
| Weight | Approx. 2.6kg |
| OTHER | |
|---|---|
| Kensington Lock | Yes |
| Power Supply Voltage | 100 - 240V AC |
| Power Frequency | 50/60Hz |
| Output Voltage of AC Power Adapter | DC 12V |
| Power Consumption (Standby mode) |
less than 0.5W |
| PC applications* | Easy Interactive Tools Ver 4.11 (for Windows) Easy Interactive Tools Ver 4.10 (for Mac OS X) |
| WHAT'S IN THE BOX | Epson ELPDC21 Document Camera, External AC Power Adaptor with Power Cord, VGA Cable, 3m USB Cable, User's Manual Set CD ROM, Remote Control, 2 x AA Batteries, Microscope Adaptor,Quick Start Guide, Warranty Card |
| WARRANTY | |||
|---|---|---|---|
| Standard Warranty | 12 months | ||
| *N.B. The effective number of pixels is 2.07M (1920x1080p) | |||
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it. |
|||
| Usage Conditions | |
|---|---|
| Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (e.g. power cords, inks, CDs, plastic wrapping), do not make modifications to the product and avoid the use of third party consumables. Consult Epson if you have any questions or concerns. |
| SKU | ELP-DC21 |
| Barcode # | 9314020621062 |
| Brand | EPSON |
| Shipping Weight | 4.2000kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.180m |
| Shipping Length | 0.450m |
| Shipping Cubic | 0.019354000m3 |
Manufacturer Warranty: 12 Months Limited Warranty
