Suggested alternative
Epson Expression 12000XL Flatbed A3 Photo Scanner is discontinued.
The below option is the replacement/alternative model:
Review the alternative product’s specifications to confirm it suits your requirements. Need help confirming suitability? Contact us.

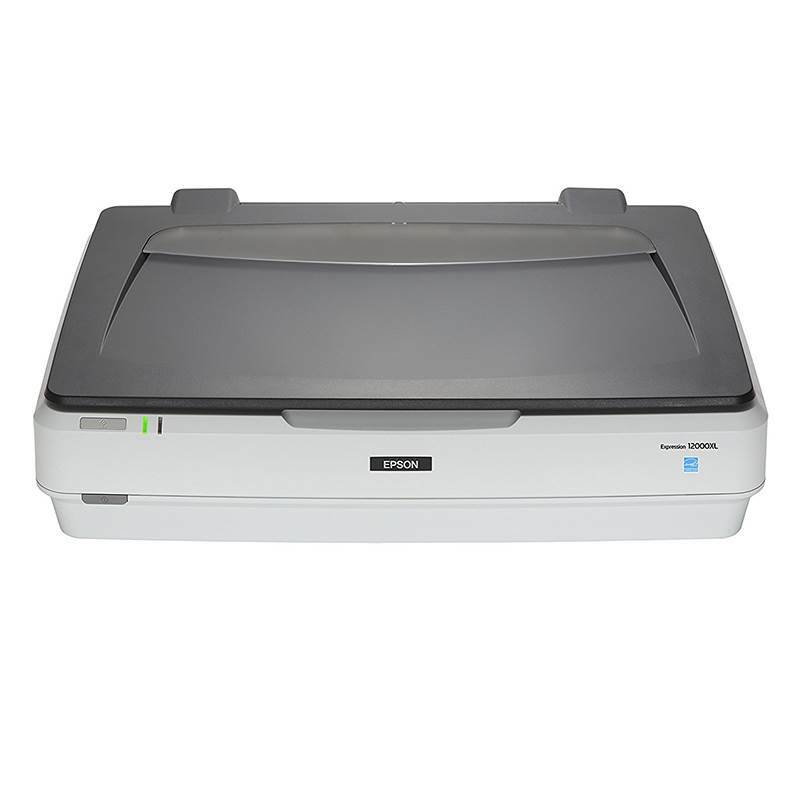

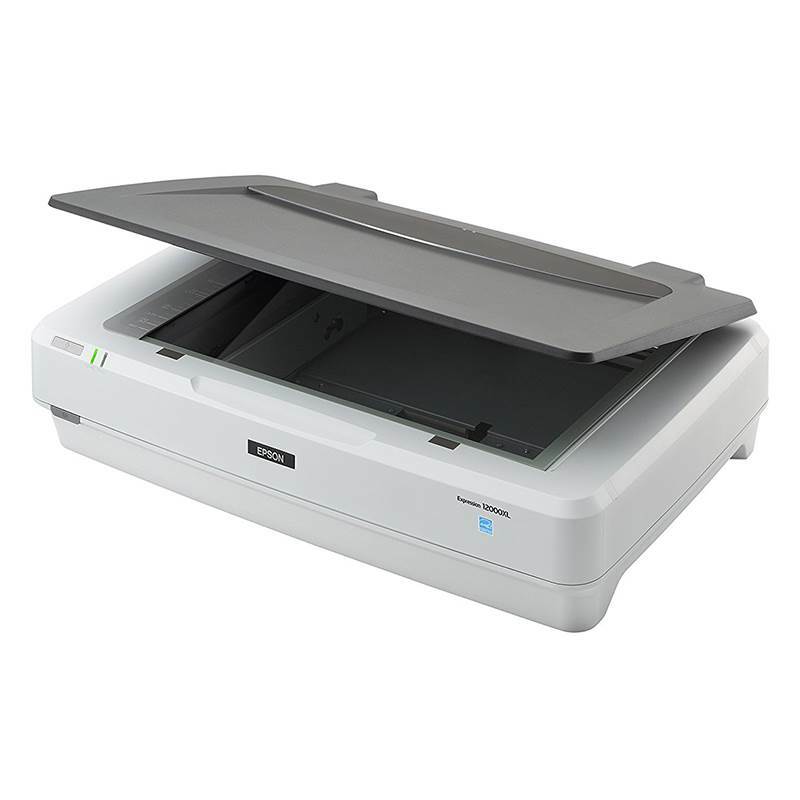

Epson Expression 12000XL A3 Flatbed Photo Scanner
A high-resolution A3 graphics and photo scanner with 2400 × 4800 dpi capture, 3.8 Dmax optical density, 48-bit colour, USB 2.0 and SilverFast Ai 8.8 software.
Scan A3 graphics, plans and photographic originals
The Expression 12000XL supports reflective media up to 309 × 420 mm. Its supplied imaging specifications include 2400 × 4800 dpi resolution, 3.8 Dmax optical density, 48-bit colour and Micro Step Drive technology.
AutoFocus optics are described for focusing on originals up to 6 mm above the scanner glass, including three-dimensional items and transparencies.
Process film and slide batches
With the optional transparency unit, the supplied page lists batch scanning for up to 48 frames of 35 mm film, 30 mounted 35 mm slides, eight frames of 4 × 5-inch film or six medium-format transparencies.
SilverFast Ai 8.8 and Epson Scan are listed with image-processing tools including dust removal, grain reduction and Easy Photo Fix colour restoration.
Technical specifications
| General | |
|---|---|
| Brand | Epson |
| Model | Expression 12000XL |
| SKU | B11B240501 |
| Product type | A3 flatbed photo / graphics scanner |
| Functions | Scan only |
| Weight | Approximately 14.3 kg |
| Scanning and media | |
| Optical resolution | 2400 × 4800 dpi |
| Output resolution | 50 to 12,800 dpi in 1 dpi steps |
| Optical density | 3.8 Dmax |
| Colour depth | 48-bit |
| Maximum reflective media | 309 × 420 mm |
| A4 scan-time wording | 12 seconds per page in the specification table; 23 seconds for an 8.5 × 11-inch colour image in the feature section, both at 300 dpi |
| Optional transparency unit | Supports listed 35 mm film, slides, 4 × 5-inch film and medium-format transparencies |
| Connectivity and software | |
| Interface | USB 2.0 High-Speed |
| Imaging technology | ReadyScan LED Technology; line-alternated colour CCD |
| Software | Epson Scan 2 and SilverFast Ai version 8.8 |
| Warranty | |
| Warranty | 12 months return to base |
| Optional warranty listing | Additional 2-year warranty, item 3YWE12000XL |
Frequently asked questions
What size media can the Expression 12000XL scan?
The supplied page lists reflective media up to 309 × 420 mm.
What is its supplied resolution?
The page lists 2400 × 4800 dpi optical capture and output settings from 50 to 12,800 dpi.
Can it scan film and slides?
Yes, through the optional transparency unit described on the supplied page.
Which interface does it use?
USB 2.0 High-Speed is listed.
How fast is an A4 colour scan?
The supplied page conflicts between 12 seconds and 23 seconds at 300 dpi, so the applicable test result should be confirmed.
(B11B240501)

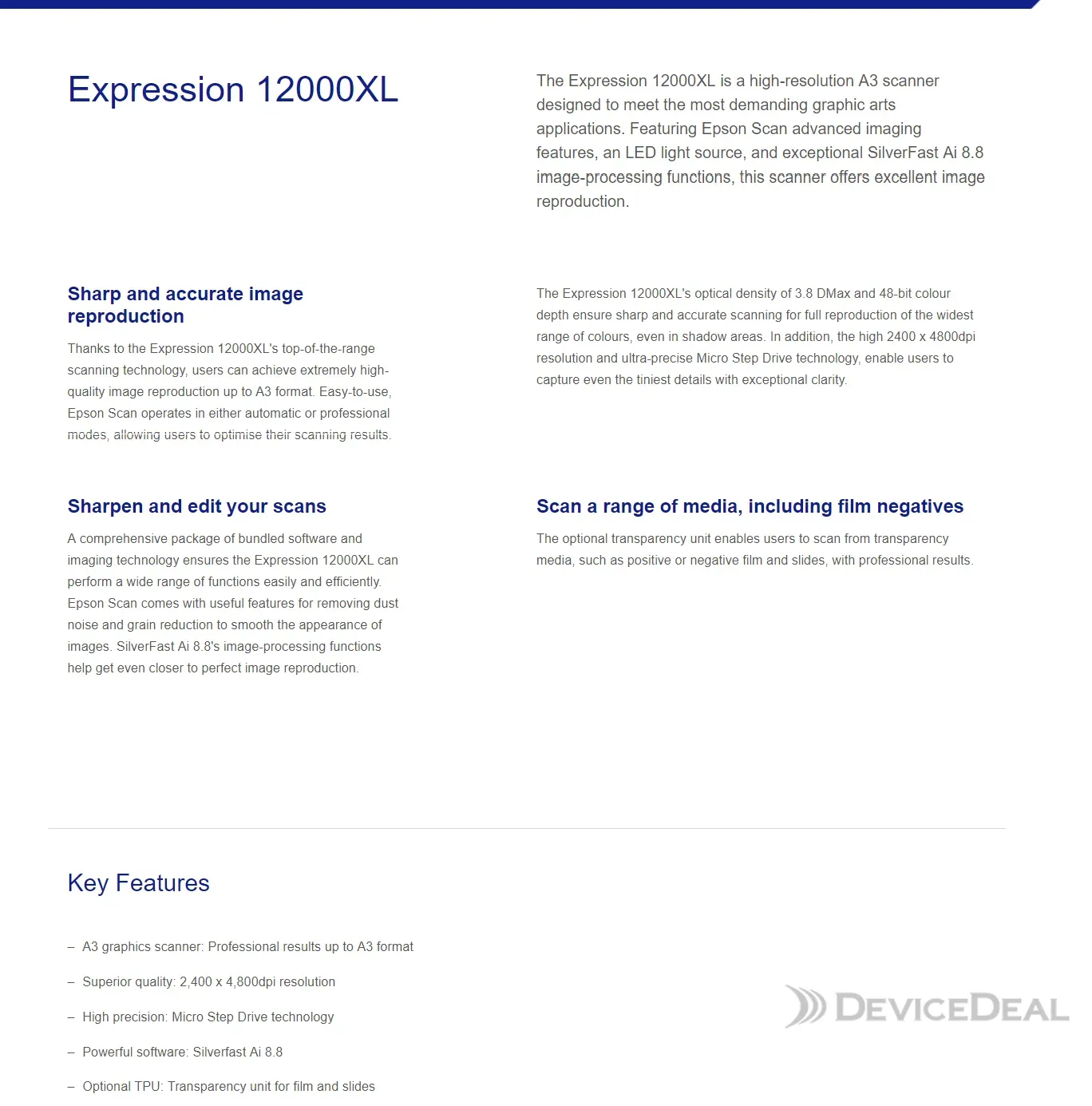

The Expression 12000XL is a high-resolution A3 scanner designed to meet the most demanding graphic arts applications.
Featuring Epson Scan advanced imaging features, an LED light source, and exceptional SilverFast Ai 8.8 image processing functions, this scanner offers excellent image reproduction.
Sharp and accurate image reproduction
Thanks to the Expression 12000XL's top-of-the-range scanning technology, users can achieve extremely high-quality image reproduction up to A3 format.
Easy-to-use, Epson Scan operates in either automatic or professional modes, allowing users to optimise their scanning results.
The Expression 12000XL's optical density of 3.8 DMax and 48-bit colour depth ensure sharp and accurate scanning for full reproduction of the widest range of colours, even in shadow areas. In addition, the high 2400 x 4800dpi resolution and ultra-precise Micro Step Drive technology, enable users to capture even the tiniest details with exceptional clarity.
A comprehensive package of bundled software and imaging technology ensures the Expression 12000XL can perform a wide range of functions easily and efficiently. Epson Scan comes with useful features for removing dust noise and grain reduction to smooth the appearance of images. SilverFast Ai 8.8's image processing functions help get even closer to perfect image reproduction.
The optional transparency unit enables users to scan from transparency media, such as positive or negative film and slides, with professional results.
KEY FEATURES
- Batch scan large quantities of transparencies with brilliant results – By utilising the optional Transparency Unit, the Epson Expression 12000XL can scan up to 48 frames of 35mm film, thirty 35mm slides, eight frames of 4" x 5" film, or six medium-format transparencies–all with one easy setup.
- Two lamp design - A bright white lamp is used for positive transparency scanning, while a blue light source is used for negative transparencies, cutting down on the processing time and improving the negative to positive conversion in the final image.
- Unique AutoFocus optics – Epson's optics system ensures pinpoint focusing on an original up to 6mm above the scanner glass and is useful for scanning 3D items and transparencies.
- Fast scans – Scan an 8.5" x 11" colour image at 300 dpi in as little as 23 seconds. A 35mm slide can be scanned at 2400 dpi in 51 seconds, and a 4" x 5" colour transparency can be scanned in under three minutes.
- High Optical Density – Featuring an optical density of 3.8Dmax, the Epson Expression 12000XL captures a wide range of tonal colours ensuring the greatest level of detail in both highlight and shadow areas.
- Powerful Software Included – The bundled LaserSoft Imaging Silverfast Ai and IT8 chart to calibrate colours and ensure consistency from the original to the scanned image. Restore faded colour photos to original brilliance with Easy Photo Fix scanning technology. Additionally with Advances Digital Dust correction you can remove the appearance of dust from film and photo's.
EXPRESSION 12000XL
A3 graphics scanner
High-quality A3 graphics scanner for sharp and accurate image reproduction of plans, x-rays, film negatives, with the precision users demand.
Specifications
| Dimensions | |
| Duplex Print Option | |
| Functions | Scan only |
| Interface | USB 2.0 High-Speed (standard) |
| LCD/LED Diplay | |
| Paper Handling | up to 309 x 420mm |
| Print Head Pins | |
| Print Speed (cps) | |
| Product Type | Photo Scanner |
| Resolution | 50dpi to 12,800dpi (in 1 dpi steps) |
| Ribbon Cartridge | |
| Series | |
| Speed | Monochrome : 12 s/page – Colour : 12 s/page (Measured with size A4, resolution: 300dpi) |
| Supplies Compatibility | |
| Warranty | 12 MONTHS RETURN TO BASE ./ OPTIONAL ADDITIONAL 2 YEAR WARRANTY 3YWE12000XL |
| Weight | Approx. 14.3kg |
| Imaging Technology | Readyscan LED Technology - line alternated colour CCD (94,500 pixels) |
| Model | Epson Expression 12000XL Flatbed A3 colour image scanner |
| Performance | Monochrome : 12 s/page – Colour : 12 s/page (Measured with size A4, resolution: 300dpi) |
| Software | Epson Scan 2, SilverFast Ai ver.8.8 |
| SKU | B11B240501 |
| Barcode # | 9314020613739 |
| Brand | EPSON |
| Shipping Weight | 19.3500kg |
| Shipping Width | 0.614m |
| Shipping Height | 0.297m |
| Shipping Length | 0.777m |
| Shipping Cubic | 0.141692000m3 |
Manufacturer Warranty: 12 Months Limited Warranty
